Micro Firewall Appliance/Fanless Mini PC Core i5-8250U with 6 *I226 2.5G LAN,NO RAM NO SSD,Wifi/Bluetooth/5G , 2*DDR3L M.2 NVMe 2280 PCle3.0 × 4,Desktop Computer 4K Triple Display support Home Office
- Powerful I5 8250U Processor: 8250U Processor, 4 Cores 8 Threads, 6M Cache, Max Turbo Frequency 3.4 GHz, TDP 15W. Compatible with OPNsense, Linux,Windows, ESXI, OpenWrt and other systems. Press "Delete" key to enter BIOS setup, supports Auto Power On, Wake On Lake, GPIO, PXE

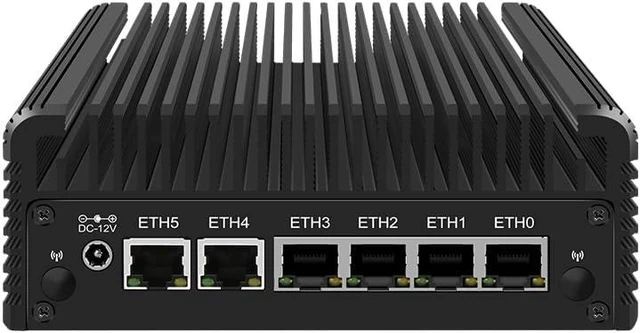

- Hexa 2.5GbE LAN: Mini Router PC with 6 x i226-V network card chip full UDE2.5G with filter connector, 2.5x faster than common Gigabit Ethernet. Soft Router can monitor network data, improve network security, powerful and widely used.1 * M.2 Key E (2230mm, supports Wifi+Bluetooth);1 * M.2 Key B (3042/52mm, supports 4G/5G expansion);1*Nano SIM
- DDR3L Memory & Large Storage Capacity: Firewall box computer with 2 x DDR3L SO-DIMM memory supports 1600MHz max 32GB , 1*M.2 NVMe 2280 PCle3.0 × 4 + 1*SATA3.0
- UHD Graphics & Triple Display: I5 8250U processor integrated UHD Graphics, HD ,DP and EDP triple display interfaces support 4K@60Hz.

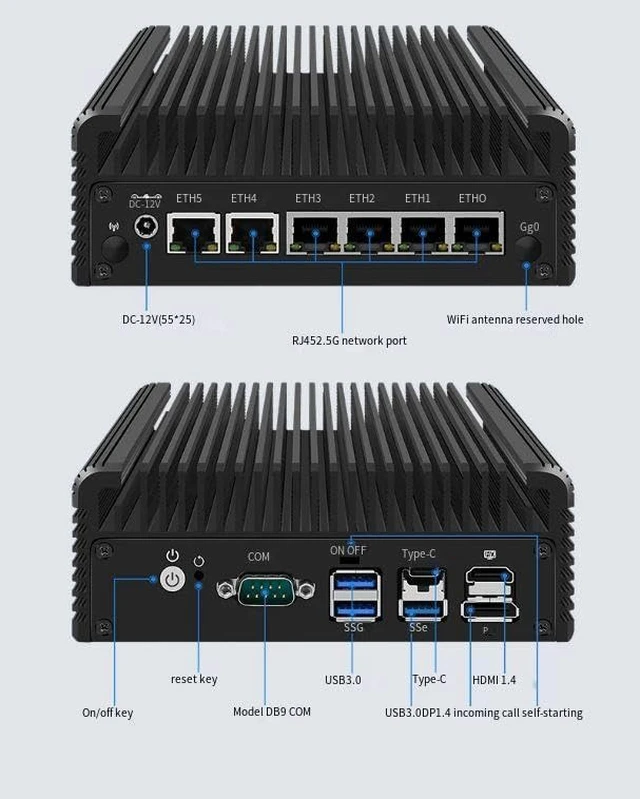

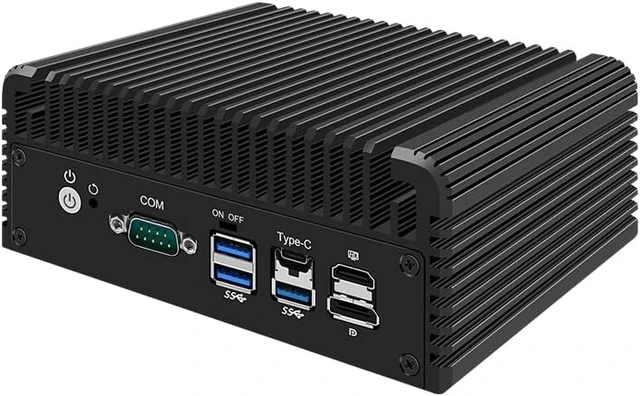

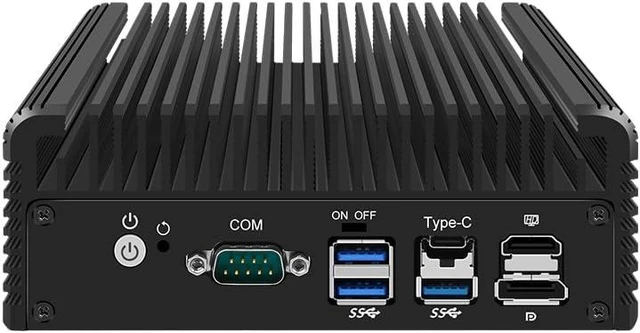

- Rich interfaces: 6 x2.5G i226V-LAN,3 xUSB3.0, HDMI,DP, Type-C(USB2.0),RST,COM i
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

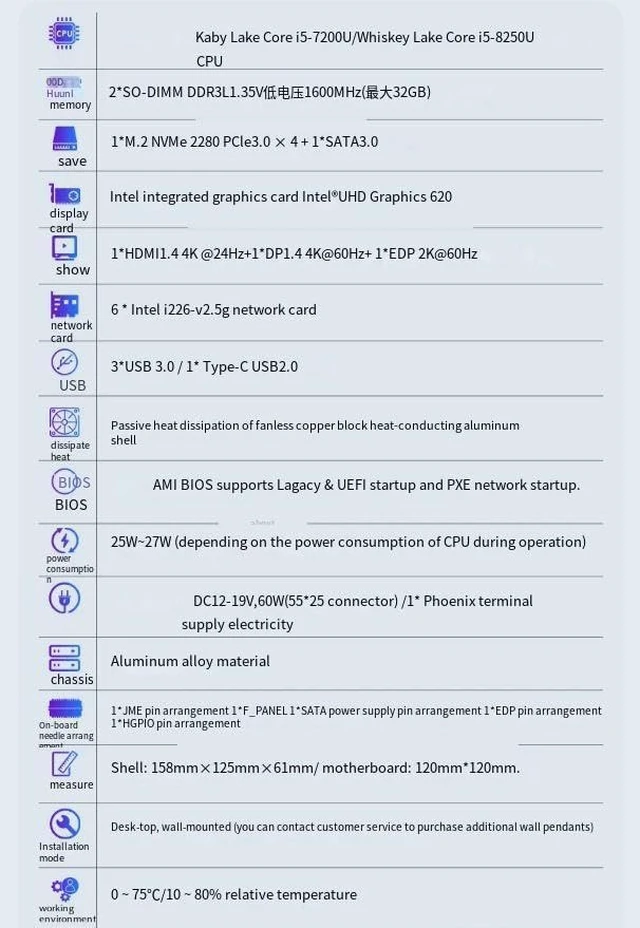

CUP :Kaby Lake Core i5-7200U/Whiskey Lake Core i5-8250U
memory :2*SO-DIMM DDR3L 1.35V low voltage1600MHz(max 32GB)
Storage :1*M.2 NVMe 2280 PCle3.0 × 4 + 1*SATA3.0
Graphics card :Intel integrated graphics card IntelUHD Graphics 620
Display :1*HDMI1.4 4K @24Hz+1*DP1.4 4K@60Hz+ 1*EDP 2K@60Hz
network card :6 * Intel i226-v2.5G network card
USB :3*USB 3.0 / 1* Type-C USB2.0
Dissipate heat :Passive heat dissipation of fanless copper block heat-conducting aluminum shell
BIOS :AMI BIOS supports Lagacy & UEFI startup and PXE network startup.
Power consumption : 25W~27W (depending on the power consumption of CPU during operation)
Supply electricity :DC12-19V,60W(55*25 connector) /1* Phoenix terminal

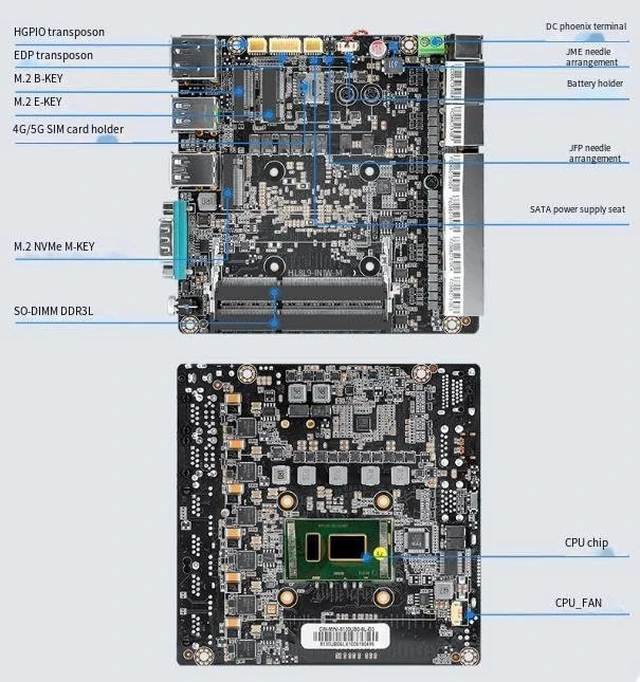

1*JME pin arrangement 1*F_PANEL 1*SATA power supply pin arrangement 1*EDP pin arrangement 1*HGPIO pin arrangement
Shell: 158mm×125mm×61mm/ motherboard: 120mm*120mm.
memory :2*SO-DIMM DDR3L 1.35V low voltage1600MHz(max 32GB)
Storage :1*M.2 NVMe 2280 PCle3.0 × 4 + 1*SATA3.0
Graphics card :Intel integrated graphics card IntelUHD Graphics 620
Display :1*HDMI1.4 4K @24Hz+1*DP1.4 4K@60Hz+ 1*EDP 2K@60Hz
network card :6 * Intel i226-v2.5G network card
USB :3*USB 3.0 / 1* Type-C USB2.0
Dissipate heat :Passive heat dissipation of fanless copper block heat-conducting aluminum shell
BIOS :AMI BIOS supports Lagacy & UEFI startup and PXE network startup.
Power consumption : 25W~27W (depending on the power consumption of CPU during operation)
Supply electricity :DC12-19V,60W(55*25 connector) /1* Phoenix terminal
1*JME pin arrangement 1*F_PANEL 1*SATA power supply pin arrangement 1*EDP pin arrangement 1*HGPIO pin arrangement
Shell: 158mm×125mm×61mm/ motherboard: 120mm*120mm.
