Pentium Gold 8505(up to 4.4GHz) Mini PC Firewall Appliance 4x2.5G LAN 2xSATA3.0,Intel 82599ES 2 * 10G SFP
- 2*DDR5|1*TF Slot|1*M.2 NVMe x4|Triple Display,AES-NI, OPNsense,NO RAM NO SSD
- Powerful 8505 Processor: 8505 Processor, 5 Cores 6 Threads, 8M Cache, Max Turbo Frequency 4.4 GHz, TDP 15W. Compatible with OPNsense, Linux,Windows, ESXI, OpenWrt and other systems. Press "Delete" key to enter BIOS setup, supports Auto Power On, Wake On Lake, GPIO, PXE
- Quad 2.5GbE LAN & Dual 10G SFP+ : Mini Router PC with 4 x i226-V network card chip full UDE2.5G with filter connector, 2.5x faster than common Gigabit Ethernet. Soft Router can monitor network data, improve network security, powerful and widely used. 1 x PCIE-X8 slot× 4 signal supports Intel 82599ES dual 10Gigabit network card.built-in PCIE-X8 slot× 4 signal supports cutting into four M.2 NVMe x1 signals.Built-in PCIE-X8 slot× 4 signal supports lnteli211/i210/i226 four-port card.1 x TF card supports data storage and system boot.
- DDR5 Memory & Large Storage Capacity: Firewall box computer with 2 x DDR5 SO-DIMM memory 4800MHz , 1 M.2 M Key
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Highlight

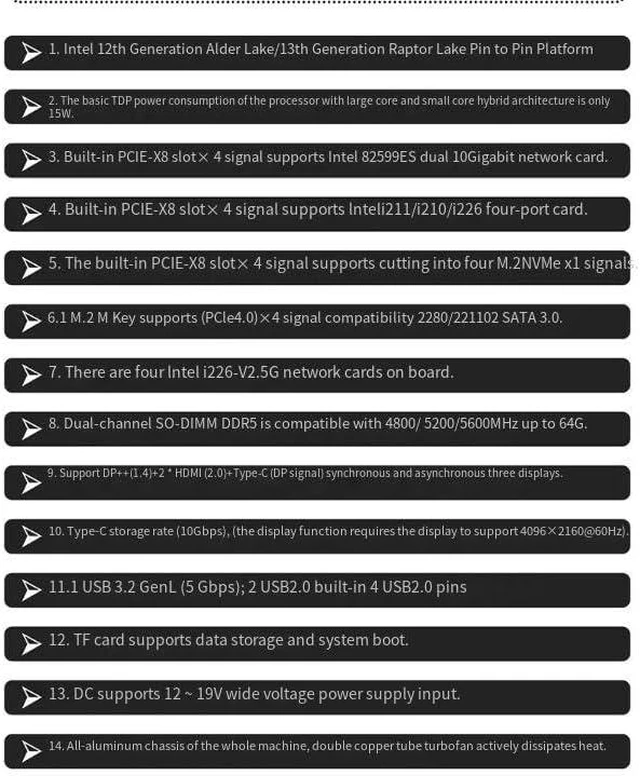

1. CPU: Intel Pentium Gold Processor 8505 8M Cache, up to 4.40 GHz
2. The basic TDP power consumption of the processor with large core and small core hybrid architecture is only 15W.

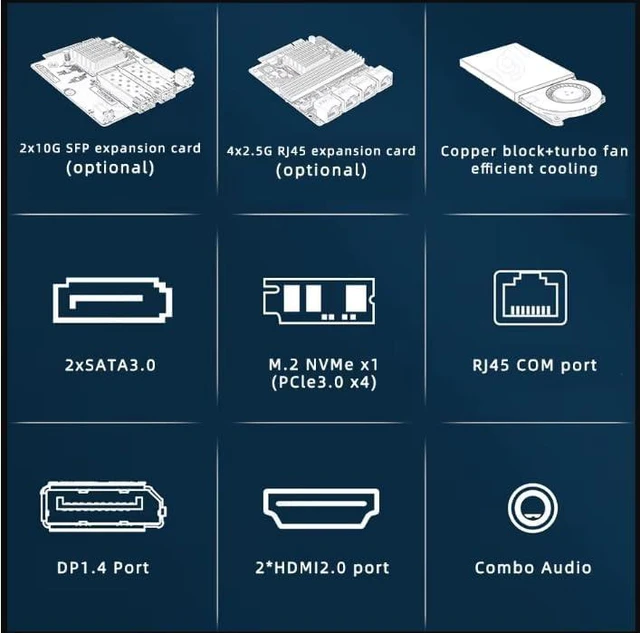

3. Built-in PCIE-X8 slot× 4 signal supports Intel 82599ES dual 10Gigabit network card.
4. Built-in PCIE-X8 slot× 4 signal supports lnteli211/i210/i226 four-port card.
5. The built-in PCIE-X8 slot× 4 signal supports cutting into four M.2 NVMe x1 signals.
6.1 M.2 M Key supports (PCle4.0)×4 signal compatibility 2280/22110;2 SATA 3.0.

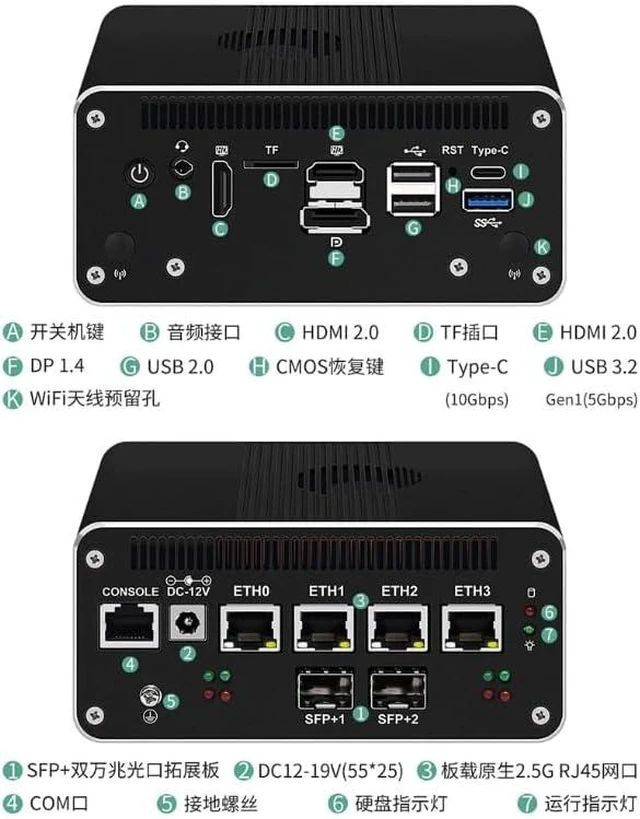

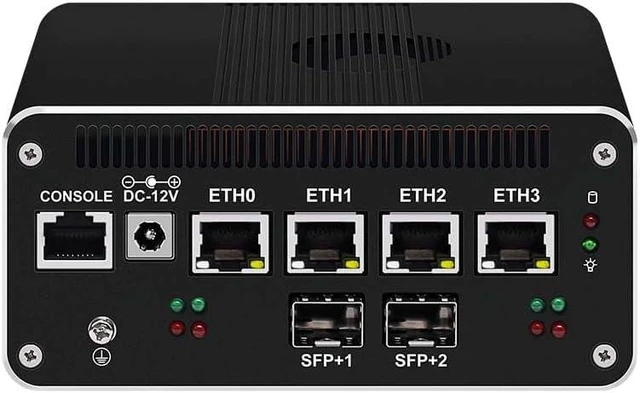

7. There are four lntel i226-V2.5G network cards on board.
8. Dual-channel SO-DIMM DDR5 is compatible with 4800/ 5200/5600MHz up to 64G.

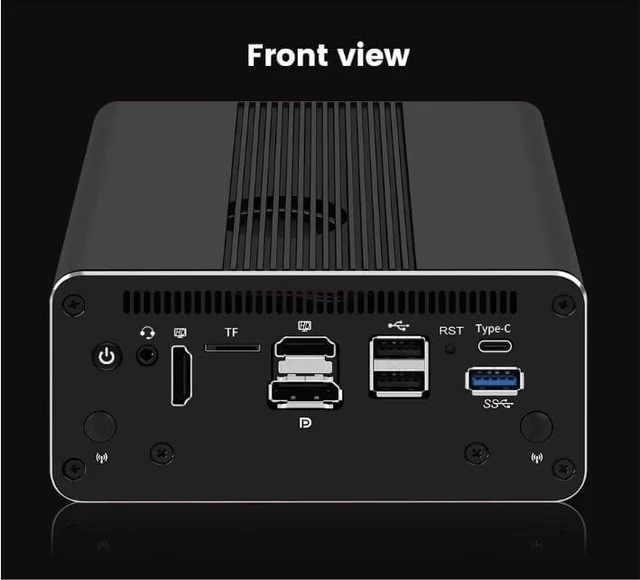

9. Support DP++(1.4)+2 * HDMI (2.0)+Type-C (DP signal) synchronous and asynchronous three displays.
10. Type-C storage rate (10Gbps), (the display function requires the display to support 4096×2160@60Hz).
11.1 USB 3.2 Gen 1 (5 Gbps); 2 USB2.0 built-in 4 USB2.0 pins
12. TF card supports data storage and system boot.
13. DC supports 12 ~ 19V wide voltage power supply input.

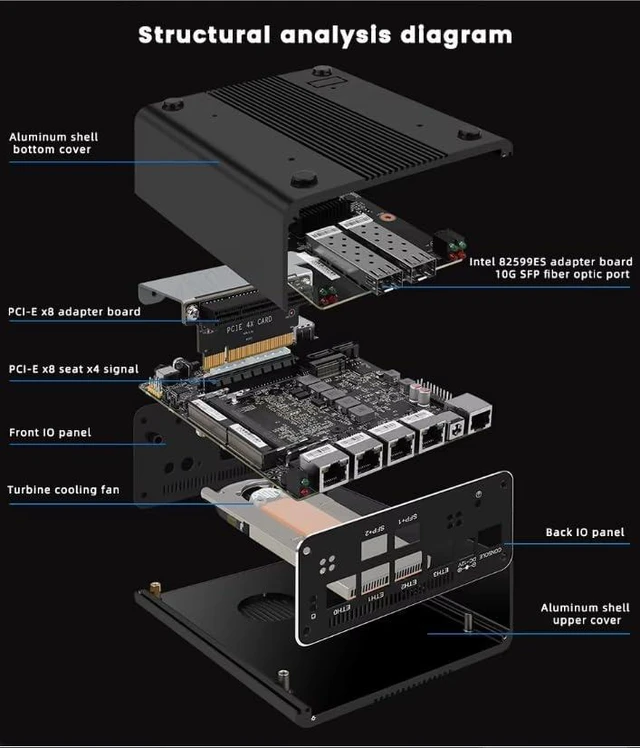

14. All-aluminum chassis of the whole machine, double copper tube turbofan actively dissipates heat.
1. CPU: Intel Pentium Gold Processor 8505 8M Cache, up to 4.40 GHz
2. The basic TDP power consumption of the processor with large core and small core hybrid architecture is only 15W.
3. Built-in PCIE-X8 slot× 4 signal supports Intel 82599ES dual 10Gigabit network card.
4. Built-in PCIE-X8 slot× 4 signal supports lnteli211/i210/i226 four-port card.
5. The built-in PCIE-X8 slot× 4 signal supports cutting into four M.2 NVMe x1 signals.
6.1 M.2 M Key supports (PCle4.0)×4 signal compatibility 2280/22110;2 SATA 3.0.
7. There are four lntel i226-V2.5G network cards on board.
8. Dual-channel SO-DIMM DDR5 is compatible with 4800/ 5200/5600MHz up to 64G.
9. Support DP++(1.4)+2 * HDMI (2.0)+Type-C (DP signal) synchronous and asynchronous three displays.
10. Type-C storage rate (10Gbps), (the display function requires the display to support 4096×2160@60Hz).
11.1 USB 3.2 Gen 1 (5 Gbps); 2 USB2.0 built-in 4 USB2.0 pins
12. TF card supports data storage and system boot.
13. DC supports 12 ~ 19V wide voltage power supply input.
14. All-aluminum chassis of the whole machine, double copper tube turbofan actively dissipates heat.
