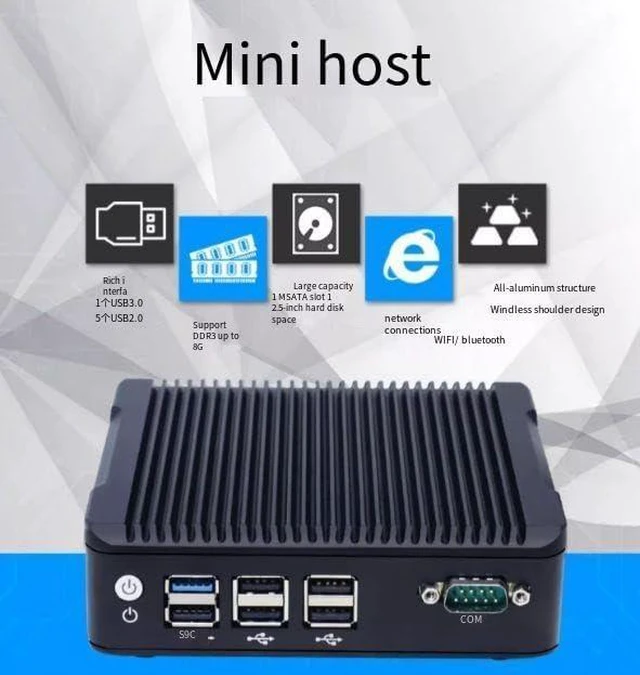

Fanless Mini Industrial Control Computer,Intel Celeron J1900 4 Cores and 4 Threads, 2*Intel i211-AT Gigabit Ports,4COM,Support DDR3L Memory,Scalable TPM Security chip. (NO RAM NO SSD)
- Excellent performanceThe industrial mini computer On-board Intel Celeron J1900 (quad-core, four-thread, 2MB L2 cache, clocked at 1.99GHz) ,Integrated Intel HD Graphics core graphics card ,providing smooth and efficient performance.
- 2*Intel Gigabit ports The Fanless industrial mini pc with 2 *Intel i211-AT Gigabit ports ,support 11*MSATA slot, 1*2.5-inch hard disk on board. Support 4COM ports and 2 optional 485 modes,more powerful performance.
- Storage+MemoryThe mini industrial computer Support DDR3L 1600 4G memory (optional board mount 2G/8G).Only 1.0kg , convenient microcomputer, Fast response and lasting stability.
- VGA+ HDMI High Definition Dual DisplayWith 1*VGA, 1*HDMI high-definition display interface (supporting ynchronous/asynchronous dual display),easy connection. Multiple display screens, clearly showing every detail and connect to various devices with an array of front and rear I/O ports, all in a Fanless Mini PC.
- Packaging content+warranty The package includes
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Reminder:
Processor:On-board Intel Celeron J1900 (quad-core, four-thread, 2MB L2 cache, clocked at 1.99GHz)
Memory:On-board DDR3L 1600 4G memory (optional board mount 2G/8G)
BIOS:AMI UEFI BIOS
Display chip: Integrated Intel HD Graphics core graphics card
Display interface:1*VGA, 1*HDMI high-definition display interface (supporting synchronous/asynchronous dual display)

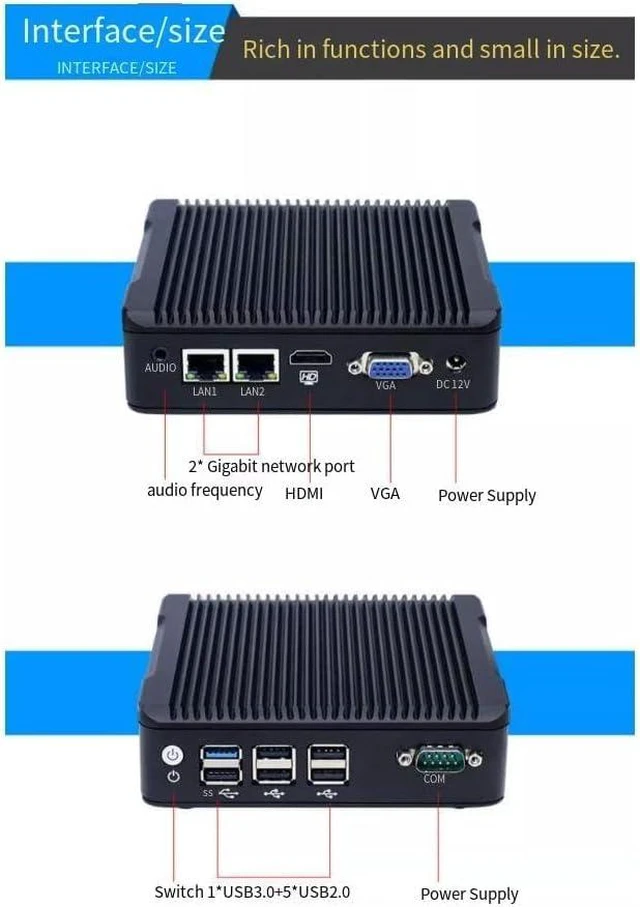

Front panel l/O port:1*power switch, 4*USB2.0, 2*COM ports
Back panel I/O port :1*DC interface, 1*VGA interface, 1*HDMI HD interface, 1*USB3.0,2 network ports,1*audio 2-in-1 interface, 2*serial ports (optional RS232/485), 1*10PIN Phoenix terminal (4 in and 4 out GPIO)
Expansion interface:
Support 1*MINIPCIE slot (optional WIFI/ Bluetooth /3G/4G)
Support 1*MINIPCIE slot (MSATA is supported by default, 3G/4G and SIM card slot are optional)
Expansion slot Extensible functions: TPM pin holder (supporting TPM1.2/2.0 security module), 1 USB2.0 pin holder.
Network interface :2 *Intel i211-AT Gigabit ports
Memory interface:1*MSATA slot, 1*2.5-inch hard disk on board
Input voltage:Support DC12V input
Other functions:Power-on boot, timing boot, network wake-up, PXE boot, watchdog (level 0 ~ 255)
Working temperature:0 ~+50 C (commercial HDD),-20 ~+60 C (industrial SSD), surface air flow
Working humidity: 5% ~ 95% non-condensed state

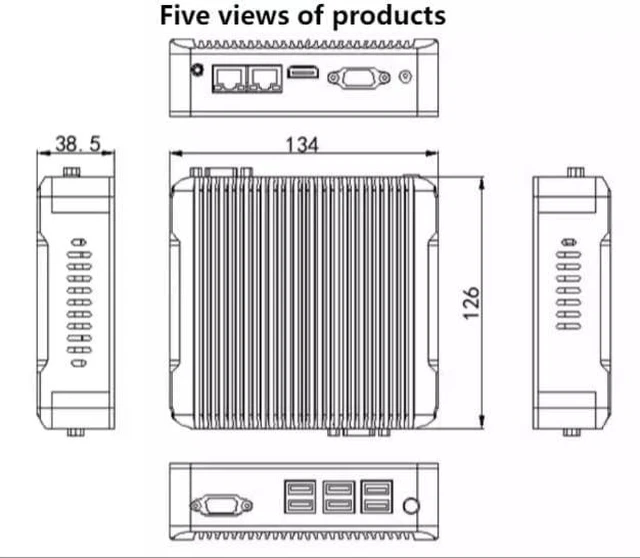

Product size:148*125*58 mm
Product weight:1.0kg
Processor:On-board Intel Celeron J1900 (quad-core, four-thread, 2MB L2 cache, clocked at 1.99GHz)
Memory:On-board DDR3L 1600 4G memory (optional board mount 2G/8G)
BIOS:AMI UEFI BIOS
Display chip: Integrated Intel HD Graphics core graphics card
Display interface:1*VGA, 1*HDMI high-definition display interface (supporting synchronous/asynchronous dual display)
Front panel l/O port:1*power switch, 4*USB2.0, 2*COM ports
Back panel I/O port :1*DC interface, 1*VGA interface, 1*HDMI HD interface, 1*USB3.0,2 network ports,1*audio 2-in-1 interface, 2*serial ports (optional RS232/485), 1*10PIN Phoenix terminal (4 in and 4 out GPIO)
Expansion interface:
Support 1*MINIPCIE slot (optional WIFI/ Bluetooth /3G/4G)
Support 1*MINIPCIE slot (MSATA is supported by default, 3G/4G and SIM card slot are optional)
Expansion slot Extensible functions: TPM pin holder (supporting TPM1.2/2.0 security module), 1 USB2.0 pin holder.
Network interface :2 *Intel i211-AT Gigabit ports
Memory interface:1*MSATA slot, 1*2.5-inch hard disk on board
Input voltage:Support DC12V input
Other functions:Power-on boot, timing boot, network wake-up, PXE boot, watchdog (level 0 ~ 255)
Working temperature:0 ~+50 C (commercial HDD),-20 ~+60 C (industrial SSD), surface air flow
Working humidity: 5% ~ 95% non-condensed state
Product size:148*125*58 mm
Product weight:1.0kg
