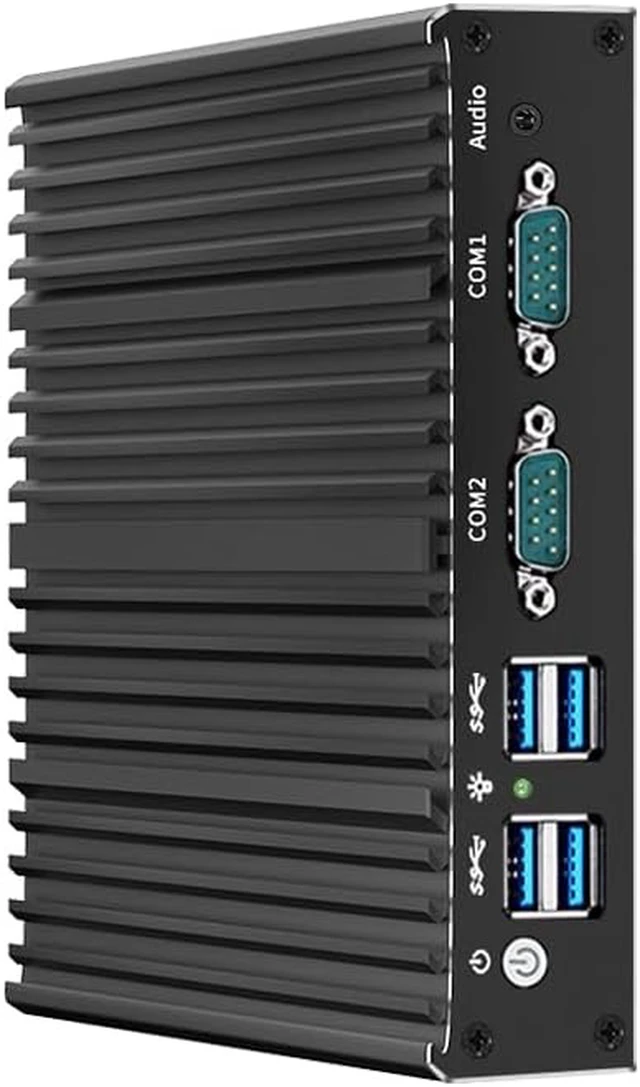

8-PCB Industrial Mini PC, Fanless Mini PC Quad Core J4125,DDR4/Dual LAN/2*COM RS232(Support RS485)/HD VGA/USB3.0,Mini Desktop Computer Support Dual Band WiFi for Home Office,8GB RAM 128GB SSD
- Powerful Celeron J4125 Processor: J4125 Processor, 4 Cores 4 Threads, 4M Cache, Max Turbo Frequency 2.7 GHz, TDP 10 W. Compatible with OPNsense, WindowsLinux, ESXI, OpenWrt and other systems. Press "Delete" key to enter BIOS setup, supports Auto Power On, Wake On Lake, GPIO, PXE
- 1GbE LAN: Mini Router PC with 2*Realtek RTL8111H network card chip full UDE 1000M with filter connector.Soft Router can monitor network data, improve network security, powerful and widely used.Support WiFi/4G module
- DDR4 Memory & Large Storage Capacity: Firewall box computer with 1 x DDR4 SO-DIMM memory 2400MHz, 1*SATA3.0 6Gb/s;1*MSATA3.06Gb/s (optional MPCIE).
- UHD Graphics & Dual Display: J4125processor integrated UHD Graphics, HD and VGA dual display interfaces support 4K@60Hz. Attention:The memory can be expanded up to 16GB, but due to system compatibility, it is recommended to use Samsung or Micron brand memory when using 16GB memory.
- Rich interfaces: 2 x1000M Realtek LAN,4 xUSB3.0, 2 xUSB2.0,
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Highlight

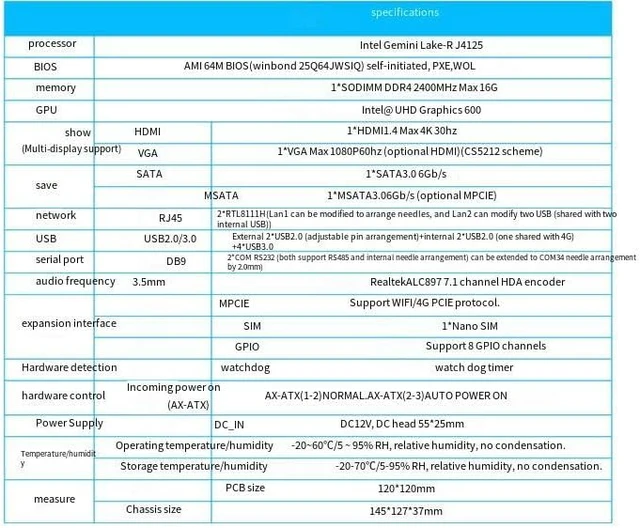

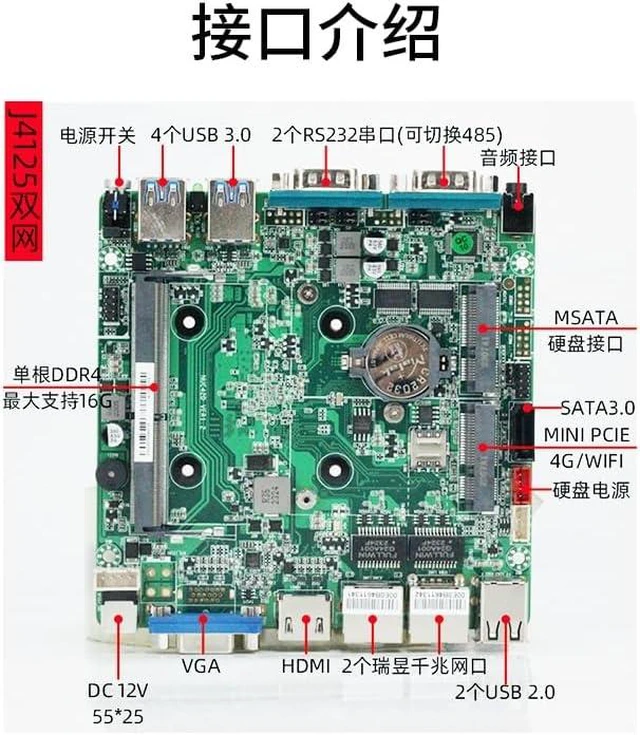

J4125 model:
-2*RTL8111H Gigabit Network Card Chip
-2*USB2.0,4*USB3.0,internal 2*USB2.0 (one shared with 4G), 2*COM RS232 (both support RS485. Internal needle arrangement) can be extended to COM3 4 needle arrangement by 2.0mm).
-1*SODIMM DDR4 2400MHz Max 16G
--Support two storage: 1*SATA3.0 6Gb/s;1*MSATA3.06Gb/s (optional MPCIE)
-Support 1xHDMI and 1xVGA Dual display
-MPCIE : Support WiFi/4G module
-SIM :1*Nano SIM
-Support 8 GPIO channels
Power Supply: DC 12V(2.5 55*25mm)
Operating temperature/humidity: -20~60 /5~95%RH, relative humidity, no condensation.
Temperature/humidity Storage temperature/humidity: -20~70 /5~95%RH, relative humidity, no condensation.
PCB size 120*120mm ;measure Chassis size 145*127*37mm
-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.
The fanless design not only provides a quiet working environment, but also improves system reliability and stability and reduces maintenance problems caused by fan failure. It is ideal for application environments that require long-term operation and low maintenance costs select.
J4125 model:
-2*RTL8111H Gigabit Network Card Chip
-2*USB2.0,4*USB3.0,internal 2*USB2.0 (one shared with 4G), 2*COM RS232 (both support RS485. Internal needle arrangement) can be extended to COM3 4 needle arrangement by 2.0mm).
-1*SODIMM DDR4 2400MHz Max 16G
--Support two storage: 1*SATA3.0 6Gb/s;1*MSATA3.06Gb/s (optional MPCIE)
-Support 1xHDMI and 1xVGA Dual display
-MPCIE : Support WiFi/4G module
-SIM :1*Nano SIM
-Support 8 GPIO channels
Power Supply: DC 12V(2.5 55*25mm)
Operating temperature/humidity: -20~60 /5~95%RH, relative humidity, no condensation.
Temperature/humidity Storage temperature/humidity: -20~70 /5~95%RH, relative humidity, no condensation.
PCB size 120*120mm ;measure Chassis size 145*127*37mm
-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.
The fanless design not only provides a quiet working environment, but also improves system reliability and stability and reduces maintenance problems caused by fan failure. It is ideal for application environments that require long-term operation and low maintenance costs select.
