$420.99
Meet Your Seller

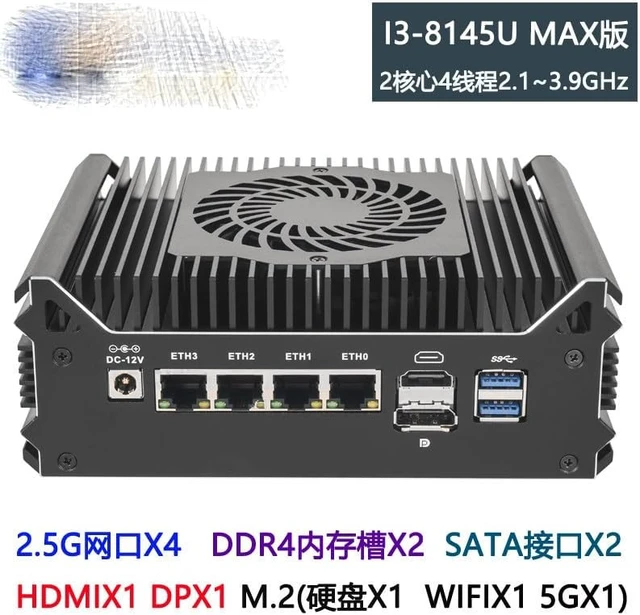

Micro Firewall Appliance 8145U Mini PC,4 i226-V 2.5Gbe LAN Ports
- Desktop Computer NO RAM NO SSD,DDR4 1*M.2 Support AES-NI Barebone Router PC VPN/HDMI+DP+Type-C/2SATA3.0/WiFi/5G/SIM card slot
- Powerful 8145U Processor: 8145U Processor, 2 Cores 4 Threads, 4M Cache, 2.1-3.9GHz, TDP 15W. Compatible with OPNsense, Linux,Windows,ESXI, OpenWrt and other systems. Press "Delete" key to enter BIOS setup, supports Auto Power On, Wake On Lake, GPIO, PXE
- Quad 2.5GbE LAN: Mini Router PC with 4 x i226-V network card chip full UDE2.5G with filter connector, 2.5x faster than common Gigabit Ethernet. Soft Router can monitor network data, improve network security, powerful and widely used. 1× M2_2230 Port supporting CNVI/PCIE/USB Protocols ;1× M.2 KEY-B 2250 (5G Module) Port.
- DDR4 Memory & Large Storage Capacity: Firewall box computer with 2xDDR4 SODIMM non-ecc ram slots, support 2133/2400MHz, 2 x SATA3.0 interface;1× M2_2280 Solid State Drive Port, NVMe Only (Does not support SATA signal M.2, PCIe 3.0x1)
- UHD Graphics & Dual Display: 8145U Processor integrate
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Motherboard Specifications
Onboard Core I3 8th 8145U ProcessorFCBGA1528 Dual core four thread, 2.1-3.9GMz, 4MB Cache cache, TDP15W processor
Memory :2× DDR4 260PIN SO-DIMM Slot (Memory Support Voltage 1.2V),2133~2400MHz.
Storage:2× SATA 3.0 ;1× M2_2280 Solid State Drive Port, NVMe Only (Does not support SATA signal M.2, PCIe 3.0x1)
Expansion bus:1× M2_2230 Port supporting CNVI/PCIE/USB Protocols ;1× M.2 KEY-B 2250 (5G Module) Port
Network Function:Onboard INTEL I226-V×4 2.5G Network Card Chip
Operating Temperature :-20~55
Ambient temperature :Relative humidity at 5~90, without condensation
Onboard Core I3 8th 8145U ProcessorFCBGA1528 Dual core four thread, 2.1-3.9GMz, 4MB Cache cache, TDP15W processor
Memory :2× DDR4 260PIN SO-DIMM Slot (Memory Support Voltage 1.2V),2133~2400MHz.
Storage:2× SATA 3.0 ;1× M2_2280 Solid State Drive Port, NVMe Only (Does not support SATA signal M.2, PCIe 3.0x1)
Expansion bus:1× M2_2230 Port supporting CNVI/PCIE/USB Protocols ;1× M.2 KEY-B 2250 (5G Module) Port
Network Function:Onboard INTEL I226-V×4 2.5G Network Card Chip
Operating Temperature :-20~55
Ambient temperature :Relative humidity at 5~90, without condensation
