$1,776.99
Meet Your Seller

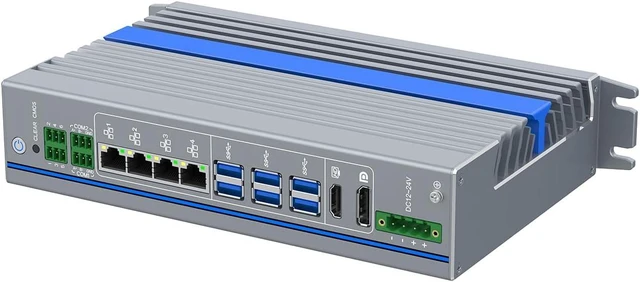

DIN Rail Industrial PC, Mini PC, I5 12500T, IX24, 2 x RS485 Optical Isolation, 4 x LAN, 12-24V 4-pin Phoenix, Expandable CAN, 0 RAM, 0 Storage, Barebone No System
- Powered by core i5 12500t processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work, application for industrial automation, medical, logistics, transportation, warehousing, e-education etc, with side mount din rail
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
- Fanless passive cooling design, silent solution thats ultra energy-efficient

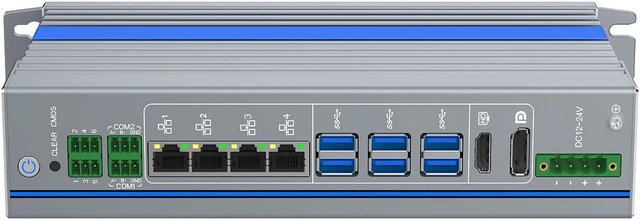

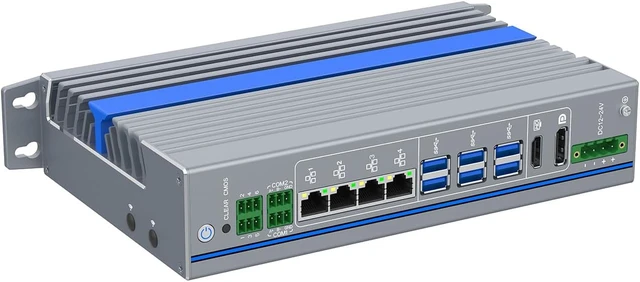

- ANDAQI IX24 with power switch, clear cmos, switch signal for remote switch and power supply indicator light, 2 x rs485 optical isolation, 4 x lan, 6 x usb3.0, hdmi, dp, dc_in 12-24v 4-pin phoenix terminal, industrial aesthetic design and reasonable interface layout, support auto power on, timing boot, wake on lan, pxe boot, watchdog 0255, tpm2.0
- Size at 265 x 146 x 50mm, 2.21kgs, 12v10a power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance, very powerful book-style industrial comput
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: ANDAQI IX24
Material: Aluminum
CPU: Core I5 12500T Processor 18M Cache, up to 4.40 GHz
Chipset: H610
Memory: 2 x SODIMM Up to DDR5 4800 MT/s, MAX.96GB
Storage: 1 x M.2 2280 M-Key NVME/SATA X1 SSD, mSATA SSD
Network: 3 x I210-AT Gigabit LAN, 1 x I219-LM Gigabit LAN
Expansion: 1 x Full Length Mini PCIE slot for WiFi/4G, with Nano SIM slot
WiFi: Wi-Fi 6 802.11AX
Bluetooth: 5.2
Optional Expansion: CAN module etc
I/0 Port: Power Switch, Clear CMOS, Switch Signal for Remote Switch and Power Supply Indicator Light, 2 x RS485 Optical Isolation,
4 x LAN, 6 x USB3.0, HDMI, DP, DC_IN 12-24V 4-pin Phoenix Terminal
Power: DC100-240V AC/50-60hz, 12V10A
Operating Temperature: -20°C ~ +50°C, surface air flow
Working Humidity: 5%~95% non-condensing
Size: 265 x 146 x 50mm
Weight: 2.21kgs
TDP: 35-74W
Cooling system: Fanless
Packing List: ANDAQI IX24 book-style industrial computer with side mount din rail, power supply, power cord, WiFi antennas, warranty card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level, TPM 2.0 security encryption

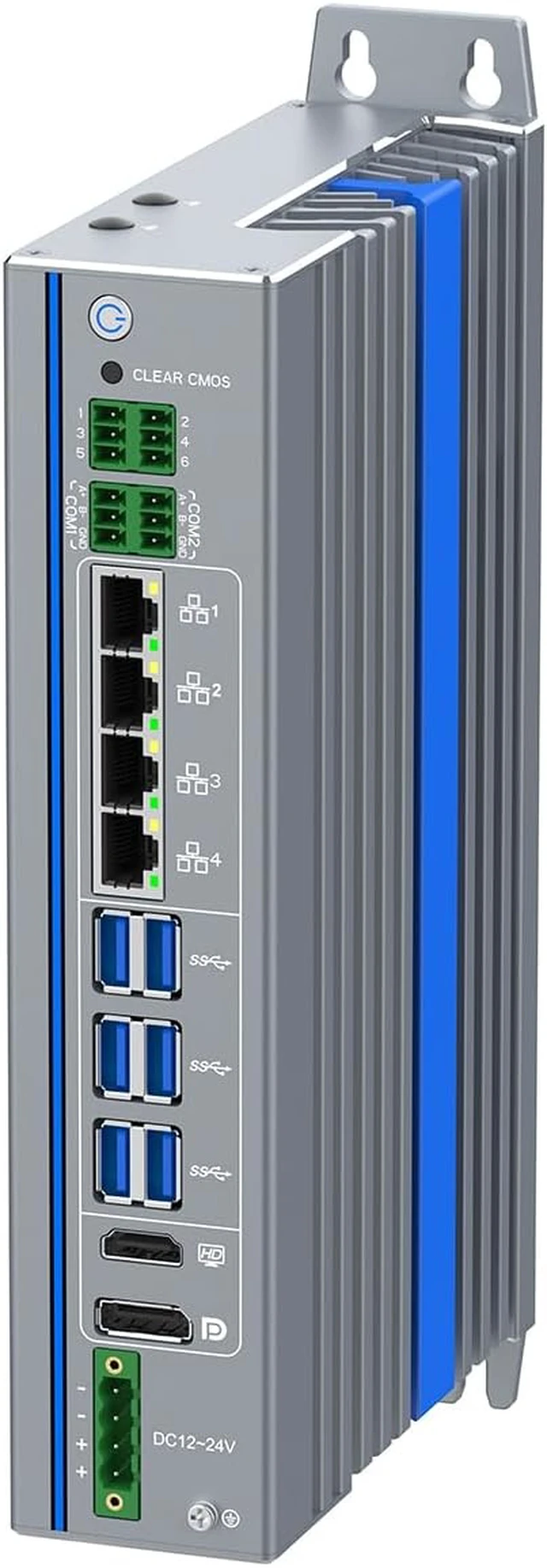

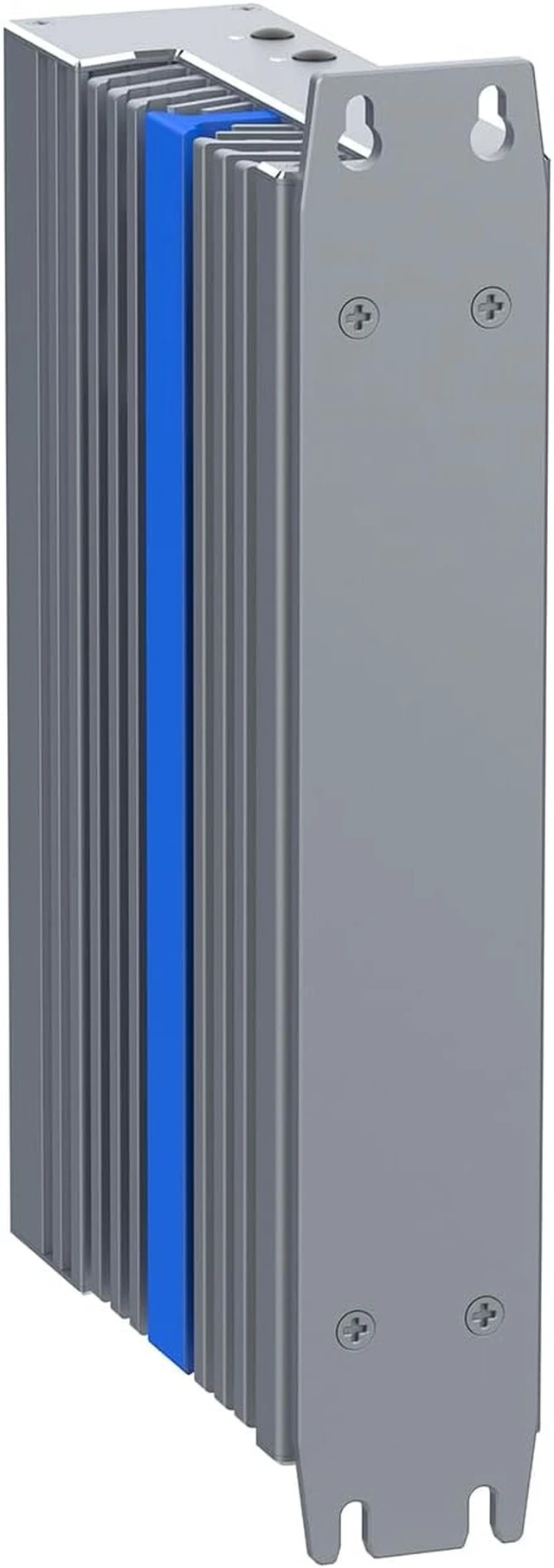

Installation: Supports Desktop, Din Rail, Book-Style vertical flat wall-mounted and other fixing methods, default as side mount din rail method
System Support: Windows 11, Linux Ubuntu etc
Model Number: ANDAQI IX24
Material: Aluminum
CPU: Core I5 12500T Processor 18M Cache, up to 4.40 GHz
Chipset: H610
Memory: 2 x SODIMM Up to DDR5 4800 MT/s, MAX.96GB
Storage: 1 x M.2 2280 M-Key NVME/SATA X1 SSD, mSATA SSD
Network: 3 x I210-AT Gigabit LAN, 1 x I219-LM Gigabit LAN
Expansion: 1 x Full Length Mini PCIE slot for WiFi/4G, with Nano SIM slot
WiFi: Wi-Fi 6 802.11AX
Bluetooth: 5.2
Optional Expansion: CAN module etc
I/0 Port: Power Switch, Clear CMOS, Switch Signal for Remote Switch and Power Supply Indicator Light, 2 x RS485 Optical Isolation,
4 x LAN, 6 x USB3.0, HDMI, DP, DC_IN 12-24V 4-pin Phoenix Terminal
Power: DC100-240V AC/50-60hz, 12V10A
Operating Temperature: -20°C ~ +50°C, surface air flow
Working Humidity: 5%~95% non-condensing
Size: 265 x 146 x 50mm
Weight: 2.21kgs
TDP: 35-74W
Cooling system: Fanless
Packing List: ANDAQI IX24 book-style industrial computer with side mount din rail, power supply, power cord, WiFi antennas, warranty card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level, TPM 2.0 security encryption
Installation: Supports Desktop, Din Rail, Book-Style vertical flat wall-mounted and other fixing methods, default as side mount din rail method
System Support: Windows 11, Linux Ubuntu etc
