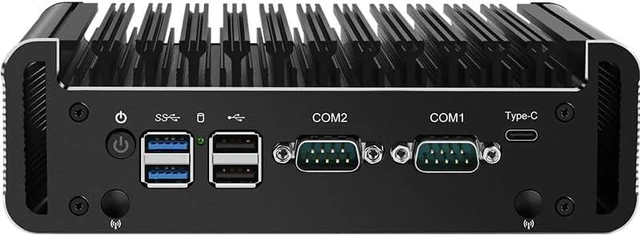

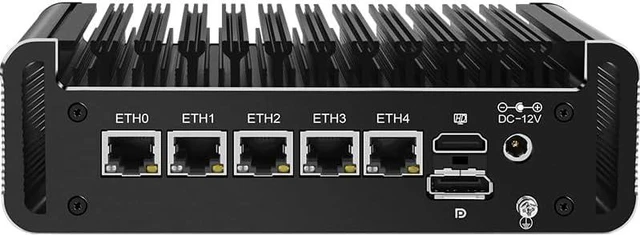

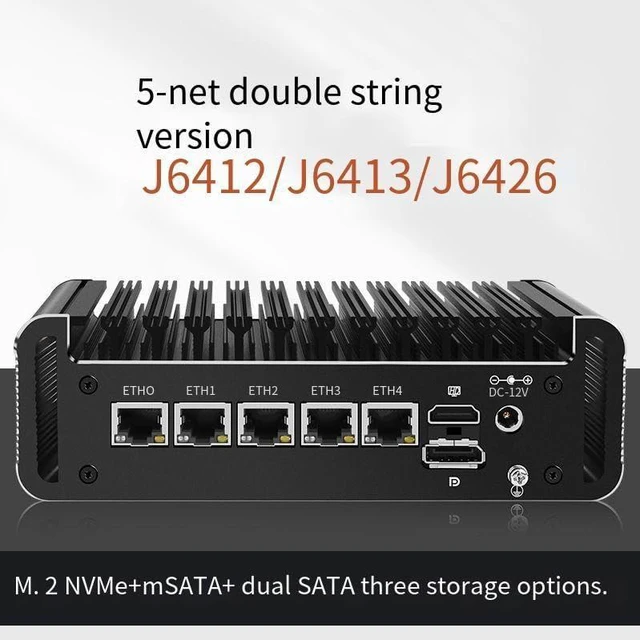

Fanless Mini PC with 5 * I226-V 2.5G LANs,Celeron J6413,NO RAM NO SSD
- UDPTCP Desktop Computer Support Home Industry Business,DDR4 M.2 NVMe,4K HD/DP/Type-C Display,2*USB3.0,2*SATA3.0,2 RS232 COM
- Powerful J6413 Processor: J6413 Processor, 4 Cores 4 Threads, 4M Cache,Max Turbo Frequency 3.0 GHz, TDP 10W.Compatible with OPNsense, Windows,Linux, ESXI, OpenWrt and other systems. Press "Delete" key to enter BIOS setup, supports Auto Power On, Wake On Lake, GPIO, PXE
- Penta Gigabit LAN: Mini Router PC with 5*I226 network card chip full UDE 2.5G with filter connector.Soft Router can monitor network data, improve network security, powerful and widely used. 1 full height MINIPCIE supports 4G/WiFi, with resistance changes to support mSATA hard drives.
- DDR4 Memory & Large Storage Capacity: Firewall box computer with 2 SO-DIMM DDR4 3200MHz (compatible with 2400/2666) Max 64G, 1 M.2 NVMe (PCIe 3.0 X1) interface compatible with 2242/2280 sizes+2 SATA3.0 interfaces.
- UHD Graphics & Triple Display: J6413 processor integrated UHD Graphics, 1 HDMI 1.4+DP1.2a+Type-C
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

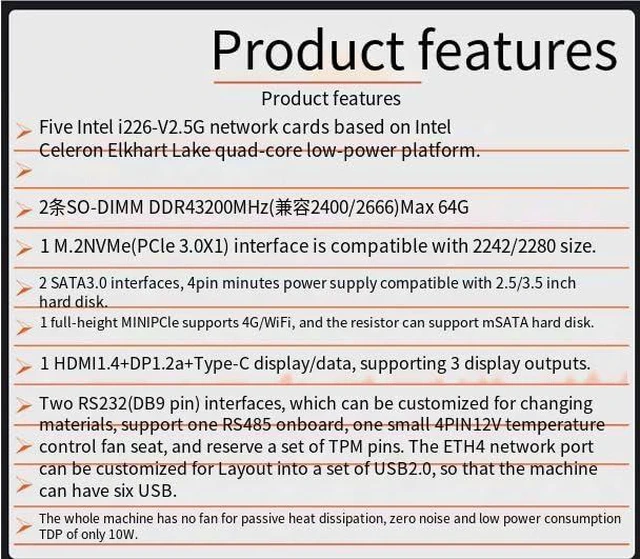

Product Highlight

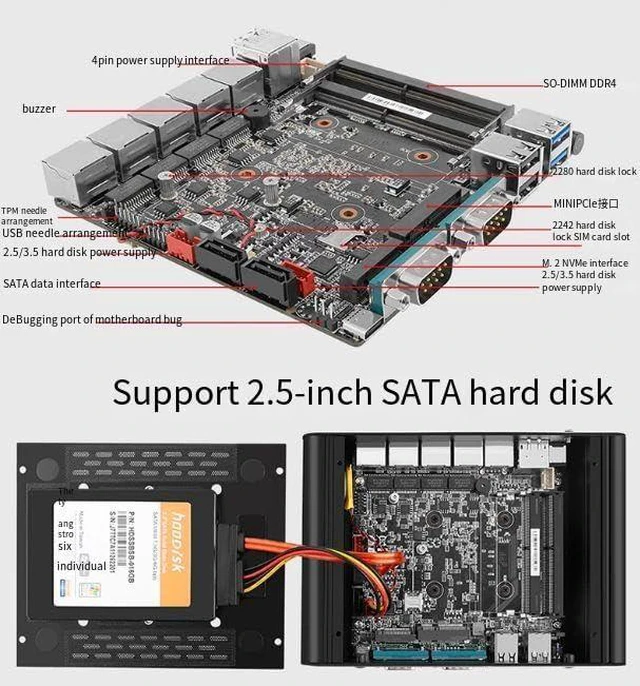

Based on the Celeron Elkhart Lake quad core low-power platform
5 Intel i226-V 2.5G network cards
2 SO-DIMM DDR4 3200MHz (compatible with 2400/2666) Max 64G
1 M.2 NVMe (PCIe 3.0 X1) interface compatible with 2242/2280 sizes
2 SATA3.0 interfaces, 4-pin power supply compatible with 2.5-inch/3.5-inch hard drives
1 full height MINIPCIE supports 4G/WiFi, with resistance changes to support mSATA hard drives
1 HDMI 1.4+DP1.2a+Type-C display/data, supports 3 display outputs
2 RS232 (DB9 pin) interfaces, customizable material modification support 1 RS485
Onboard 1 small 4PIN 12V temperature controlled fan socket with reserved TPM pin set
The ETH4 network port can be customized into a set of USB 2.0 layouts, allowing the machine to have 6 USB ports
The whole machine has no fan passive cooling, zero noise, and low power consumption TDP of only 10W

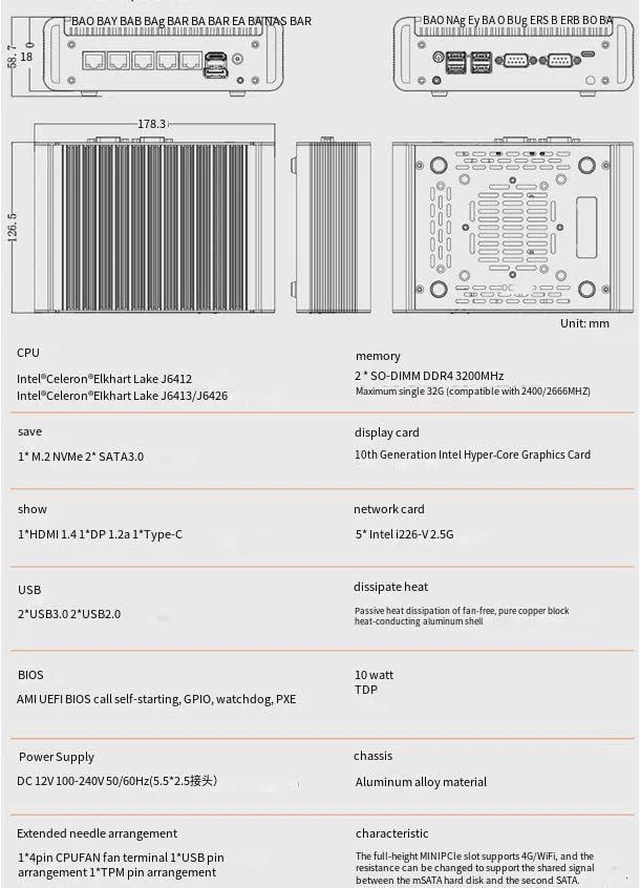

Size 178.3mm (length) *126.5mm (width) *55mm (height)
working environment -0 ~+70 relative humidity 5%-85%
Based on the Celeron Elkhart Lake quad core low-power platform
5 Intel i226-V 2.5G network cards
2 SO-DIMM DDR4 3200MHz (compatible with 2400/2666) Max 64G
1 M.2 NVMe (PCIe 3.0 X1) interface compatible with 2242/2280 sizes
2 SATA3.0 interfaces, 4-pin power supply compatible with 2.5-inch/3.5-inch hard drives
1 full height MINIPCIE supports 4G/WiFi, with resistance changes to support mSATA hard drives
1 HDMI 1.4+DP1.2a+Type-C display/data, supports 3 display outputs
2 RS232 (DB9 pin) interfaces, customizable material modification support 1 RS485
Onboard 1 small 4PIN 12V temperature controlled fan socket with reserved TPM pin set
The ETH4 network port can be customized into a set of USB 2.0 layouts, allowing the machine to have 6 USB ports
The whole machine has no fan passive cooling, zero noise, and low power consumption TDP of only 10W
Size 178.3mm (length) *126.5mm (width) *55mm (height)
working environment -0 ~+70 relative humidity 5%-85%
