MeLE Quieter3C Fanless Mini PC N5105 8GB 128GB Small Desktop Computer Triple Display Dual HDMI Micro PC WiFi 5 BT5.1 Ethernet Unlocked Bios Full Function USB-C on Office/Home/Astrophotography

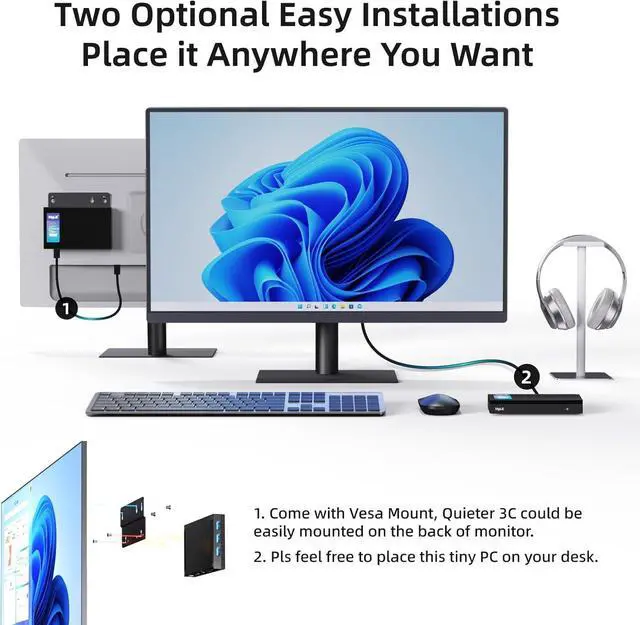

- Fanless Design & Pocket Size --MeLE mini computers adopted fanless design of 0dB noise offers a silent and comfortable experience. Quieter3C tiny PC is a small form factor in size 0.7inchx3.2inchx5.2inch/ 18.5mmx81mmx131mm, only 0.44lbs/230g. This quiet pc could be put into a pocket and easily carry out for a business trip. Space saving design with a VESA bracket mounted on the back of a TV/monitor.
- Full Function USB Type C, Triple Display --With the high demands of a fanless mini pc with PD, MeLE newly releases Quieter3C mini computer,which amazingly supports Power input PD3.0 , Data Transmit , Video Display Via one full function USB-C Port. Plus 2XHDMI 2.0, support triple display 4K@60fps. This micro computer with excellent compatibility, which could improve efficiency for your office work, business, industrial, education,home-learning, home office, entertainment.
- Dual Band Wifi/BT5.1/Gigabit Ethernet --The micro desktop computer built-in RJ45 LAN port for Gigabit Ethernet (10
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
MeLE Technologies (Shenzhen ) Co., Ltd, founded in September 2004, is a High Technology group with product R&D, manufacturing,supply chain integration marketing and branding operation. Focus on innovative Mini PC.
Ten Reasons for Gaining a MeLE Quieter3C small computer:
1. Fanless Design Quiet PC , 0 bd noise during working.

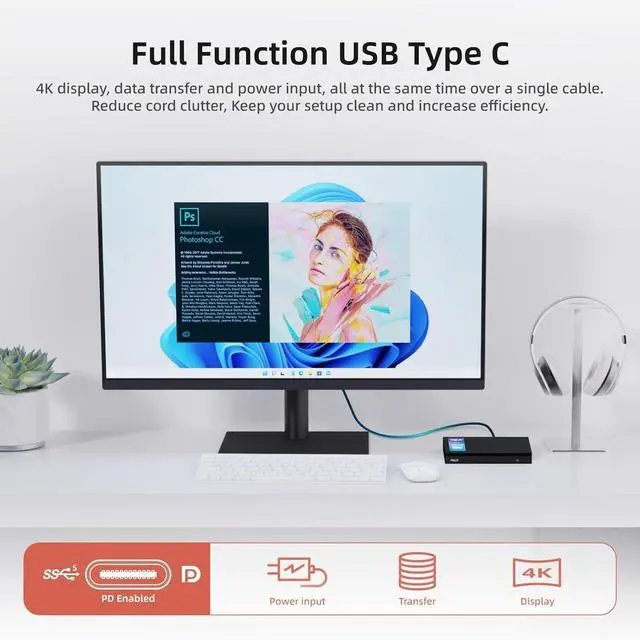

2. Full Function USB-C could meet Power input , Data Transmit , Video Display with just one cable. PD3.0.

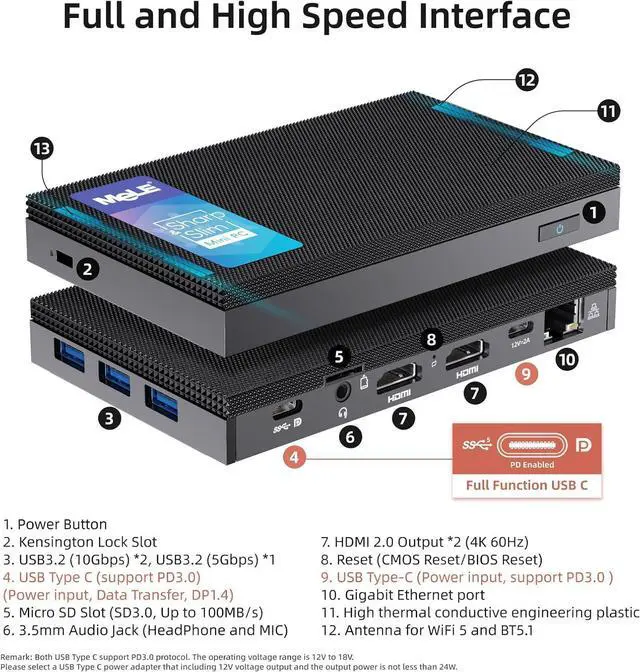

3. Multi I/O ports for computer peripheral devices, 2*USB3.2 Gen2, 1*USB3.2 Gen1, 2*HDMI2.0, 1*Full function USB-C.

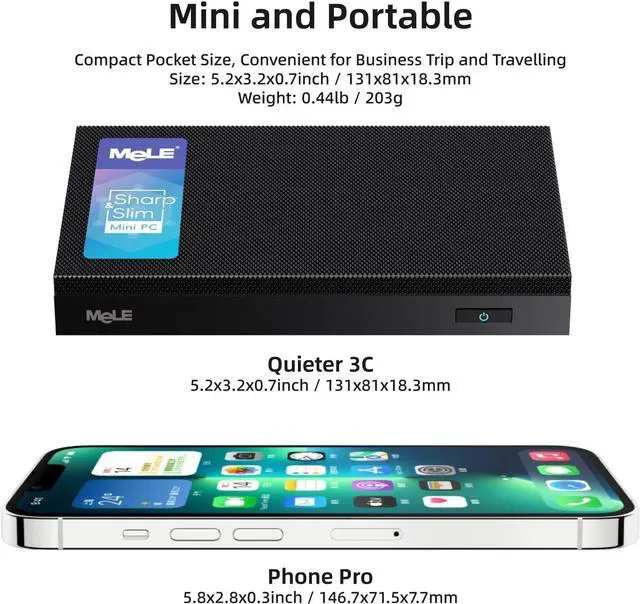

4. Pocket PC of 0.44lbs/230 grams, 18.5mm*81mm*131mm/0.713.25.2.
5. Support 5TB Expandable storage via M.2 ssd slot,usb,micro SD slot.
6. Support Triple Display 4K HDR via 2*HDMI2.0, 1*Full function USB-C.
7. Higher performance celeron Jasper Lake N5105, 8GB LPDDR4, 7/24 stable performance.

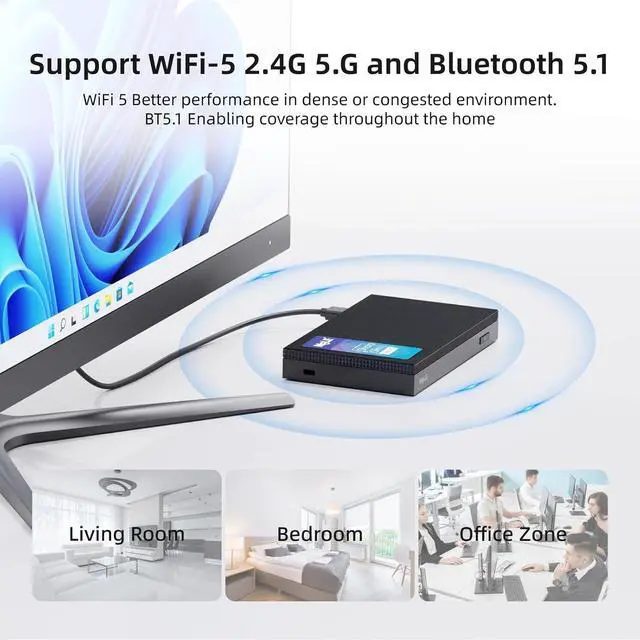

8. Dual band wifi 2.4GHz+5.0GHz Wi-Fi 5/ Bluetooth 5.1/Gigabit Ethernet multiple Connections, provide more stable and faster internet experience at anywhere.
9.Unlocked Bios, Support Wake on LAN / PXE / Auto Power on / RTC Wake.
ProcessorQuad Core Celeron Jasper Lake N5105 with TDP 8WRAM & ROM8GB Single Channel LPDDR4x, 1* eMMC 128GB(Not include an SSD )ConnectivityWiFi-5 MU-MIMO, Bluetooth 5.1, 1*RJ45 Gigabit Ethernet Support 10M/100M/1000MUnlocked Biossupport PXE Boot/iPXE Boot, Wake On LAN,Auto Power OnExpandable StorageSupport 1* M.2 2280 NVMe SSD, M.2 22x80 Key M Slot for PCIe3.0 x2,not Support SATA SSD USB Type-CUSB 3.2 Gen1 with PD3.0 protocol DC-IN, Data transmit, Video display 4K,Max Resolution 4096x2160Multi I/O Port1*USB3.2 Gen1, 2*USB3.2 Gen2, 1*full function Type C, 2*HDMI2.0,1*micro sd,1*RJ-45 Ethernet PortParcel List1*Mini PC,1* VESA Mount,1*12V 2A Power Supply, 1*UL Plug,1*User manual, 1* Silicon Pad for SSD MeLE Quieter3C Mini desktop adopts celeron jasperlake N5105quad core processor.

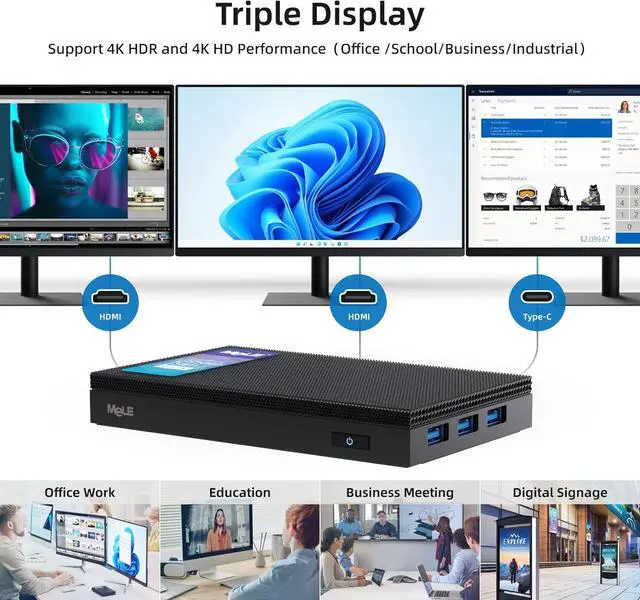

Support Triple Display 4K@60GHz HDR via 2*HDMI2.0, 1*Full function USB-C
The HDR output,stands for High Dynamic Rangeand more photo details, ideal for media ads display on digital signage,photographer and astrophotographer to view photo details onmonitors.
3*USB , 2*HDMI, 1*Full function USB-C:
2*USB3.2 Gen 2 (Theoretical data speed USB3.2 Gen 2=10Gbps)
1*USB3.2 Gen 1(Theoretical data speed USB3.2 Gen 1=5Gbps)
2* HDMI 2.0 (female)
1*Full function USB-C.
Why the 128GB eMMC Storage only displays 114GB storage on computer?
It is because the different matrixing method between PC and HDD/SSD/eMMC.Computer matrixing:1KB=1024Byte1MB=1024KB1GB=1024MB.
HDD/SSD/eMMC supplier's matrixing:1KB=1000Byte1MB=1000KB1GB=1000MB
How to set auto power on MeLE Quieter3C fanless mini pc?
Press the power button and press F7 or Delete continuously to enter select boot device menuselect Enter Setup and press Enter to enter into BIOS Setting menu-Advanced--Customer Exclusive Functions-Auto Power on--Enabled-Save & Exit-Save Changes and ExitYes to Complete this setting
Why the 4K performance is lagging?
4k displays is affected by many factors, such as net speed, HDMI cable, monitor setting, graphic card, video decoding method, video format and video resolution.Our mini pc adopts integrated graphic, if the 4K video still lags when hardware decoding, your video might need higher processor and delicate graphic card.And we suggest you to lower the resolution to 1080p for video fluency.
Does the high temperature affect the mini pc performance?
We use special ABS plastic materials for higher heat dissipation, meanwhile, we adopt a patented thermal dissipation system to prevent mini pc from overheating during working, maximum temperature of CPU is 105 degrees, when tempterature of CPU reach 90 degrees, CPU reduce frequency automatically to reduce power consumption.Here is temperature data for your reference: Working ambient temperature: 0-40,Storage ambient temperatu
Ten Reasons for Gaining a MeLE Quieter3C small computer:
1. Fanless Design Quiet PC , 0 bd noise during working.
2. Full Function USB-C could meet Power input , Data Transmit , Video Display with just one cable. PD3.0.
3. Multi I/O ports for computer peripheral devices, 2*USB3.2 Gen2, 1*USB3.2 Gen1, 2*HDMI2.0, 1*Full function USB-C.
4. Pocket PC of 0.44lbs/230 grams, 18.5mm*81mm*131mm/0.713.25.2.
5. Support 5TB Expandable storage via M.2 ssd slot,usb,micro SD slot.
6. Support Triple Display 4K HDR via 2*HDMI2.0, 1*Full function USB-C.
7. Higher performance celeron Jasper Lake N5105, 8GB LPDDR4, 7/24 stable performance.
8. Dual band wifi 2.4GHz+5.0GHz Wi-Fi 5/ Bluetooth 5.1/Gigabit Ethernet multiple Connections, provide more stable and faster internet experience at anywhere.
9.Unlocked Bios, Support Wake on LAN / PXE / Auto Power on / RTC Wake.
ProcessorQuad Core Celeron Jasper Lake N5105 with TDP 8WRAM & ROM8GB Single Channel LPDDR4x, 1* eMMC 128GB(Not include an SSD )ConnectivityWiFi-5 MU-MIMO, Bluetooth 5.1, 1*RJ45 Gigabit Ethernet Support 10M/100M/1000MUnlocked Biossupport PXE Boot/iPXE Boot, Wake On LAN,Auto Power OnExpandable StorageSupport 1* M.2 2280 NVMe SSD, M.2 22x80 Key M Slot for PCIe3.0 x2,not Support SATA SSD USB Type-CUSB 3.2 Gen1 with PD3.0 protocol DC-IN, Data transmit, Video display 4K,Max Resolution 4096x2160Multi I/O Port1*USB3.2 Gen1, 2*USB3.2 Gen2, 1*full function Type C, 2*HDMI2.0,1*micro sd,1*RJ-45 Ethernet PortParcel List1*Mini PC,1* VESA Mount,1*12V 2A Power Supply, 1*UL Plug,1*User manual, 1* Silicon Pad for SSD MeLE Quieter3C Mini desktop adopts celeron jasperlake N5105quad core processor.
Support Triple Display 4K@60GHz HDR via 2*HDMI2.0, 1*Full function USB-C
The HDR output,stands for High Dynamic Rangeand more photo details, ideal for media ads display on digital signage,photographer and astrophotographer to view photo details onmonitors.
3*USB , 2*HDMI, 1*Full function USB-C:
2*USB3.2 Gen 2 (Theoretical data speed USB3.2 Gen 2=10Gbps)
1*USB3.2 Gen 1(Theoretical data speed USB3.2 Gen 1=5Gbps)
2* HDMI 2.0 (female)
1*Full function USB-C.
Why the 128GB eMMC Storage only displays 114GB storage on computer?
It is because the different matrixing method between PC and HDD/SSD/eMMC.Computer matrixing:1KB=1024Byte1MB=1024KB1GB=1024MB.
HDD/SSD/eMMC supplier's matrixing:1KB=1000Byte1MB=1000KB1GB=1000MB
How to set auto power on MeLE Quieter3C fanless mini pc?
Press the power button and press F7 or Delete continuously to enter select boot device menuselect Enter Setup and press Enter to enter into BIOS Setting menu-Advanced--Customer Exclusive Functions-Auto Power on--Enabled-Save & Exit-Save Changes and ExitYes to Complete this setting
Why the 4K performance is lagging?
4k displays is affected by many factors, such as net speed, HDMI cable, monitor setting, graphic card, video decoding method, video format and video resolution.Our mini pc adopts integrated graphic, if the 4K video still lags when hardware decoding, your video might need higher processor and delicate graphic card.And we suggest you to lower the resolution to 1080p for video fluency.
Does the high temperature affect the mini pc performance?
We use special ABS plastic materials for higher heat dissipation, meanwhile, we adopt a patented thermal dissipation system to prevent mini pc from overheating during working, maximum temperature of CPU is 105 degrees, when tempterature of CPU reach 90 degrees, CPU reduce frequency automatically to reduce power consumption.Here is temperature data for your reference: Working ambient temperature: 0-40,Storage ambient temperatu
