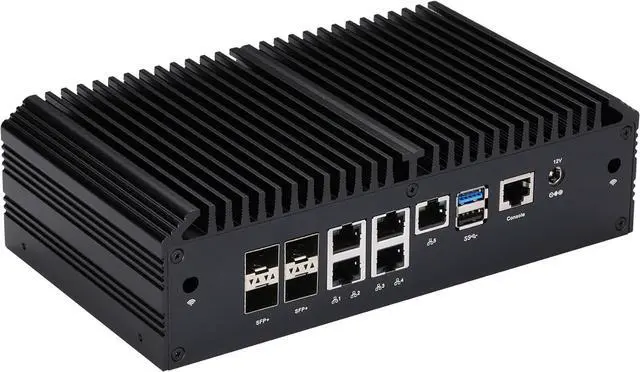

Qotom Q20331G9 SFP+ 10GB /2.5G / I225 2.5GB LAN C3758R Office Router Mini PC 8G RAM 128G SSD

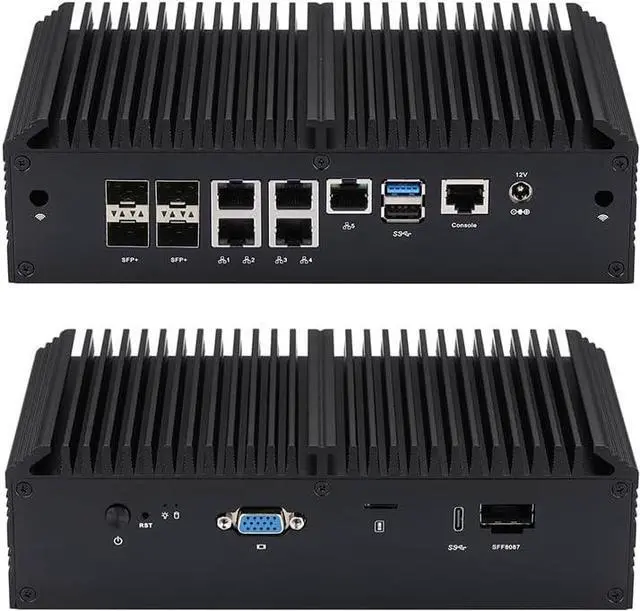

- Main Port: 4*SFP+ 10G LAN +5*2.5G LAN+1 VGA + 1 SIM Slot + 1 Type C + 1 COM + 2 USB 2.0
- CPU:Intel Atom Denverton C3758R,2.4GHz,16m Cache,8 core,AES-NI,TDP 26W
- Configuration:8G RAM 128G SSD
- No WiFi support by default. We can provide Windows drivers download link and motherboard user manual download link.
- We pre-install Unactivated Windows 10 in English for test without any Windows license. You also can install OS and software package by yourself. Press F11 key boot from USB Drive, press Delete key enter into BIOS.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Item DimensionL x W x H = 217 x 122 x 62 mm
Audio: No
AES-NI: Yes
Watch Dog: Yes
CPU TDP: 10.5W
Graphics: ASPEED AST2400
LAN Chipset: 5 x Intel I225-V 2.5G LAN, 4 x SFP+ 10G/4 x SFP 1G/2 x SFP+ 10G+2 x SFP 1G
RAM:Support 2 x DDR4 SO-DIMM Socket,Non-ECC Memory.Up to 64G, 2400MHz
Hard disk:Support 2 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 2)Support 1 x 2.5" SATA SSD/HDD
Wifi Option:No WiFi support by default.WiFi support via a Converter Card, then 1 x M.2 SSD is unusable.
VESA Mounting DimensionInner Dimension: 75 x 75 mmExternal dimension: 100 x 100 mm
5 x Intel I225-V 2.5G LAN
1 x Type C (USB 3.0)
Q20311G9 SFP 1G x4
Q20321G9 SFP+ 10G x2 + SFP 1G x2
Q20332G9 SFP+ 10Gx4
Q20331G9 SFP+ 10Gx4
Q20342G9SFP+ 10Gx4
Environmental
Humidity: 10%~90%
Operating Temp: 0°C~50°C
Non-Operating Temp: -20°C~80°C
Cooling Mode: Fanless Design
We pre-install Unactivated Windows 10 in English for test without any Windows license. Barebone system is NO OS.
Support Windows 10, Linux.
F11 key boot from USB Drive, Delete key enter into BIOS.
We don't provide SIM card and 4G/5G module.
Audio: No
AES-NI: Yes
Watch Dog: Yes
CPU TDP: 10.5W
Graphics: ASPEED AST2400
LAN Chipset: 5 x Intel I225-V 2.5G LAN, 4 x SFP+ 10G/4 x SFP 1G/2 x SFP+ 10G+2 x SFP 1G
RAM:Support 2 x DDR4 SO-DIMM Socket,Non-ECC Memory.Up to 64G, 2400MHz
Hard disk:Support 2 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 2)Support 1 x 2.5" SATA SSD/HDD
Wifi Option:No WiFi support by default.WiFi support via a Converter Card, then 1 x M.2 SSD is unusable.
VESA Mounting DimensionInner Dimension: 75 x 75 mmExternal dimension: 100 x 100 mm
5 x Intel I225-V 2.5G LAN
1 x Type C (USB 3.0)
Q20311G9 SFP 1G x4
Q20321G9 SFP+ 10G x2 + SFP 1G x2
Q20332G9 SFP+ 10Gx4
Q20331G9 SFP+ 10Gx4
Q20342G9SFP+ 10Gx4
Environmental
Humidity: 10%~90%
Operating Temp: 0°C~50°C
Non-Operating Temp: -20°C~80°C
Cooling Mode: Fanless Design
We pre-install Unactivated Windows 10 in English for test without any Windows license. Barebone system is NO OS.
Support Windows 10, Linux.
F11 key boot from USB Drive, Delete key enter into BIOS.
We don't provide SIM card and 4G/5G module.
