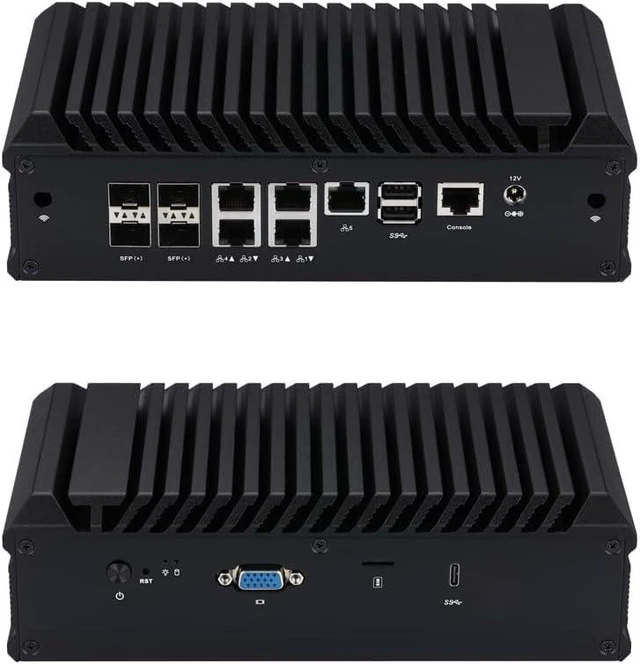

Qotom Q20332G9 S20 Mini PC Intel C3758 with Mini SAS 5X 2.5G LAN 4X 10G SFP+ AES-NI 4 Cores Computer (NO RAM, NO SSD)

Q20332G9 Intel Atom Denverton C3758,2.2GHz,16m Cache,8 core,AES-NI,TDP 25W Q20331G9 Intel Atom Denverton C3758R,2.4GHz,16m Cache,8 core,AES-NI,TDP 26W Q20342G9 Intel Atom Denverton C3808,2.0GHz,12m Cache,12 core,AES-NI,TDP 26W Q20352G9 Intel Atom C3908 Processor, 16 Cores, 16 Threads, 16 MB Cache, 2.0 GHz. CPU TDP 31W.
1 x Power Button 1 x Reset Button 1 x Power LED 1 x HDD LED 1 x VGA (DB15) 1 x Nano SIM Slot 1 x Type C (USB 3.0) 1 x Mini SAS (SFF8087)
1 x DC Jack 1 x RS-232 (RJ-45) 1 x USB 3.0 1 x USB 2.0 5 x Intel I225-V 2.5G LAN Q20332G9 SFP+ 10Gx4
Q20331G9 SFP+ 10Gx4
Q20342G9 SFP+ 10Gx4
Q20352G9 SFP+ 10Gx4
M.2: 1 x M.2 for 4G/5G (B key, Type: 3042/3052)
M.2: 2 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 2)
SIM Card Slot: 0
RS-485: 0
GPIO: No
DC-in: No
AutoStart Jumper: No
CMOS Clear Jumper: No

Item DimensionL x W x H = 217 x 122 x 62 mm Audio: No AES-NI: Yes Watch Dog: Yes CPU TDP: 10.5W Graphics: ASPEED AST2400 LAN Chipset: 5 x Intel I225-V 2.5G LAN, 4 x SFP+ 10G/4 x SFP RAM:Support 2 x DDR4 SO-DIMM Socket,Non-ECC Memory.Up to 64G, 2400MHz Hard disk:Support 2 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 2)Support 1 x 2.5" SATA SSD/HDD Wifi Option:No WiFi support by default.WiFi support via a Converter Card, then 1 x M.2 SSD is unusable. VESA Mounting DimensionInner Dimension: 75 x 75 mm External dimension: 100 x 100 mm 5 x Intel I225-V 2.5G LAN 1 x Type C (USB 3.0) Q20332G9 SFP+ 10Gx4
Q20331G9 SFP+ 10Gx4
Q20342G9 SFP+ 10Gx4
Q20352G9 SFP+ 10Gx4

Environmental Humidity: 10%~90% Operating Temp: 0°C~50°C Non-Operating Temp: -20°C~80°C Cooling Mode: Fanless Design We pre-install Unactivated Windows 10 in English for test without any Windows license. Barebone system is NO OS. Support Windows 10, Linux. F11 key boot from USB Drive, Delete key enter into BIOS. We don't provide SIM card and 4G/5G module. 1)Mini PC supports Windows, Linux, pfSense, CentOS, Sophos, OPNsense, VyOS, Linux iptables, Untangle, etc. It will comes with inactive Windows 11 inactive and without any Windows license. If you prefer to install other OS, please leave a message,you also can reinstall OS by yourself.
2)F11 key boot from USB Drive. Delete key enter BIOS.
Packing list
1 x Mini PC
1 x Power supply: plug (US/ UK/ EU/ AU/ IT standard)
1 x packaging box
2 x Antennas if order Wi-Fi.(If you choose Wifi option)
We Usually ship BY UPS to USA,It will takes 15 days by DDP, (You don't need to pay duty fee any more.)
Q20300G9 S20 Case Front I/O Rear I/O Internal Header Picture for motherboard Support OS
