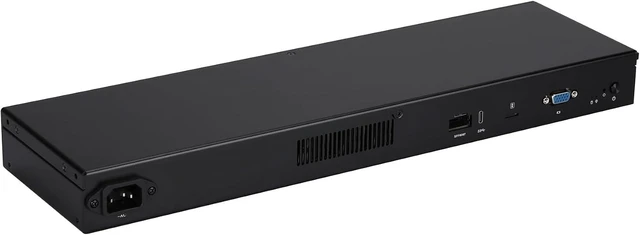

Alt view image 5 of 7 - Qotom Mini PC with 8G DDR4 RAM 512G M.2 SSD,5 Intel I225-V 2.5G Port,4X 10G SFP+,Atom C3758 Mini PC 1U Chassis

Alt view image 6 of 7 - Qotom Mini PC with 8G DDR4 RAM 512G M.2 SSD,5 Intel I225-V 2.5G Port,4X 10G SFP+,Atom C3758 Mini PC 1U Chassis

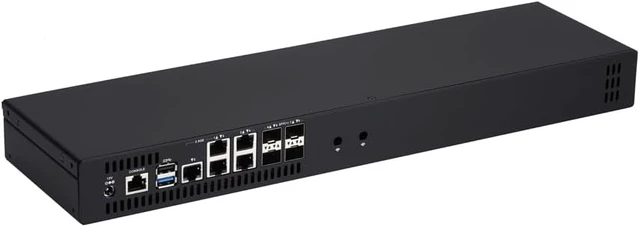

Alt view image 7 of 7 - Qotom Mini PC with 8G DDR4 RAM 512G M.2 SSD,5 Intel I225-V 2.5G Port,4X 10G SFP+,Atom C3758 Mini PC 1U Chassis

Shop All Qotom Products | Visit XinjintongLimited Store

Qotom Mini PC with 8G DDR4 RAM 512G M.2 SSD,5 Intel I225-V 2.5G Port,4X 10G SFP+,Atom C3758 Mini PC 1U Chassis

Be the first to review this product...

CPU:Intel Denverton Atom C3758 Processor,8 core,2.2GHz,16M Cache,AES-NI
8G DDR4 RAM;512G M.2 SSD;5x Intel I226-V 2.5G LAN,4x 10G SFP+
Ports:5x2.5G LAN,4x10G SFP+,1RJ45 RS232,1 Type C,1 Nano SIM slot,VGA,1xMini SAS,1xUSB3.0,1xUSB2.0
440*127*44mm(L*W*H),Compatible with Win10, Linux, and PF, it's suitable for firewall, NAS, and virtualization applications.
Support power failure Auto-on:Step 1: Power up your MINI PC and press DEL to enter BIOS. Step 2: Inside BIOS menu,select the boot option to find a setting named automatic power on and enable this setting.

Overview

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Audio: NO
WatchDog: YES
Support 5G: YES
Cooling mode: Fan
Processor:Intel Denverton Atom C3758 (16M Cache, 8 core 2.2GHz,AES-NI)
Graphics:ASPEED AST2400
Mini SAS: only supports SAS to SATA
Memory:Support 2*DDR4L SO-DIMMs 2400MHz,Max.64G
Hard Disk:support 2*M.2 for SSD(M key,Type:2280,pcie3.0x1), 2.5inch SSD
LAN:4x 10G SFP+,,5x Intel I226-V 2.5 Gigabit LAN(B3 Version)

1 x DC Jack 1 x RS-232 (RJ-45) port 1 x USB 3.0 port 1 x USB 2.0 port 5 x Intel I226-V 2.5G LAN port 4 x 10G SFP+ port 1 × Mini SAS (SFF8087)
1 x Power Button 1 x Reset Button 1 x Power LED 1 x HDD LED 1 x VGA (DB15) port 1 x Nano SIM Slot 1 x Type C (USB 3.0) port 1 x Mini PC
2 x Rack ears
plug cord
Some replacement screws
1.Sliver logo for printing: White background,and ORIGINAL logo documents in PDF version.
2.boot logo: JPG version, black background,and resolution 800*600
LOGO and OEM:
We pre-install NO LICENSE win10,you can also install OS and software package by yourself. F11 key boot from USB Drive. Delete key enter into BIOS.
System:
You can ask for BIOS and Drivers
You can changing BIOS settings such as Wake on lan,Restore from AC power Loss when you place order.
We do not provide 3G/4G/5G module and SIM card.
Technician Points I/O Description Front Panel: Back Panel: Packing The memory list we suggest(first boot takes time,please be patient) LOGO
