Alphacool ES 2U 19" Watercooling ServerRack Case REV1 (14677)

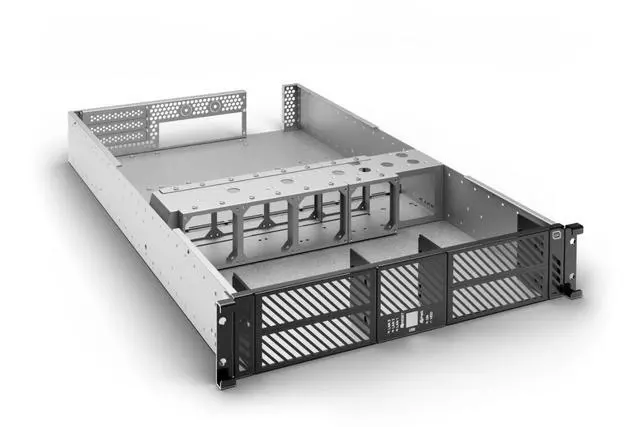

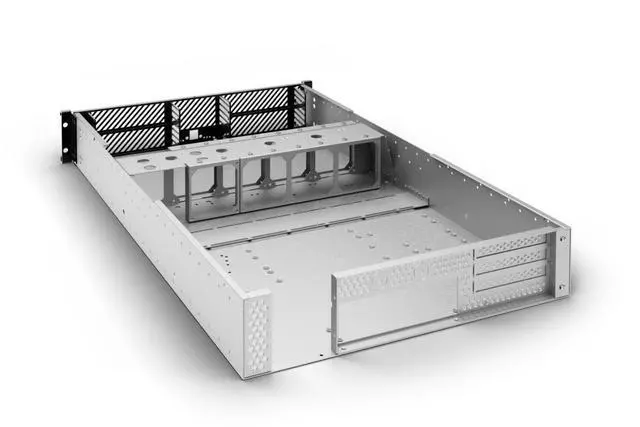

The Alphacool ES 2U ServerRack is a compact rackmount chassis engineered for high-performance water-cooled server systems. Designed specifically for enterprise and workstation environments, the 2U enclosure supports advanced liquid cooling configurations while maintaining excellent hardware compatibility and serviceability.

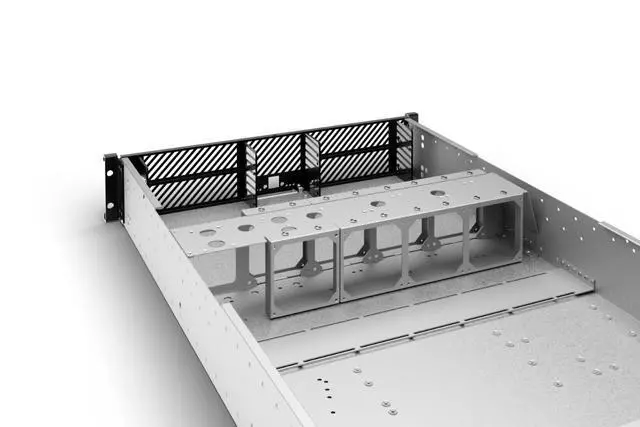

To handle demanding thermal loads, the ES 2U ServerRack includes a dedicated mounting bracket for up to a 4x80mm Alphacool NexXxoS full-copper radiator. Optional Alphacool ES 80mm PWM fans can be installed for optimized airflow and efficient heat dissipation in dense server deployments.

The chassis supports a wide range of motherboard form factors from Mini-ITX up to EE-ATX using a standard ATX mounting layout. Expansion support includes up to seven 0.8" low-profile cards or up to three single-slot expansion cards, providing flexibility for networking, GPU acceleration, or storage controller applications.

For storage and front-panel customization, the front section provides mounting locations for up to four 5.25" drives. The optional Alphacool status front panel with USB connectivity can also be installed for additional functionality.

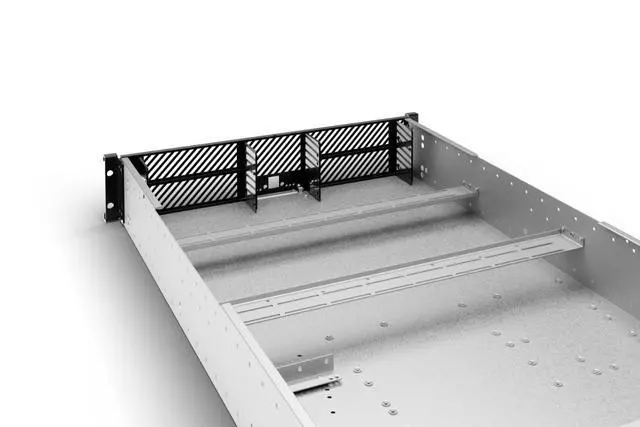

A newly developed rail system simplifies installation and maintenance in server racks or open-frame environments. In addition, the internal radiator and fan bracket can be repositioned to better accommodate custom hardware layouts and cooling configurations.

The ES 2U ServerRack is also compatible with Alphacools pre-configured enterprise liquid cooling kits, allowing tailored cooling solutions for specialized server deployments.

Technical Specifications

1. Form Factor: 2U Server Rack
2. Motherboard Support: Mini-ITX to EE-ATX
3. Radiator Support: Up to 4x80mm Alphacool NexXxoS full-copper radiator
4. Fan Support: Optional Alphacool ES 80mm PWM fans
5. Expansion Slots: Up to 7x low-profile cards or 3x single-slot cards
6. Drive Bays: 4x 5.25"
7. Rail System: Integrated adjustable mounting system
8. Mounting Options: Adjustable radiator and fan positioning
9. Included Accessories: Multiple slot brackets and PSU brackets
10. I/O Panel: Sold separately (Item No. 25054)
