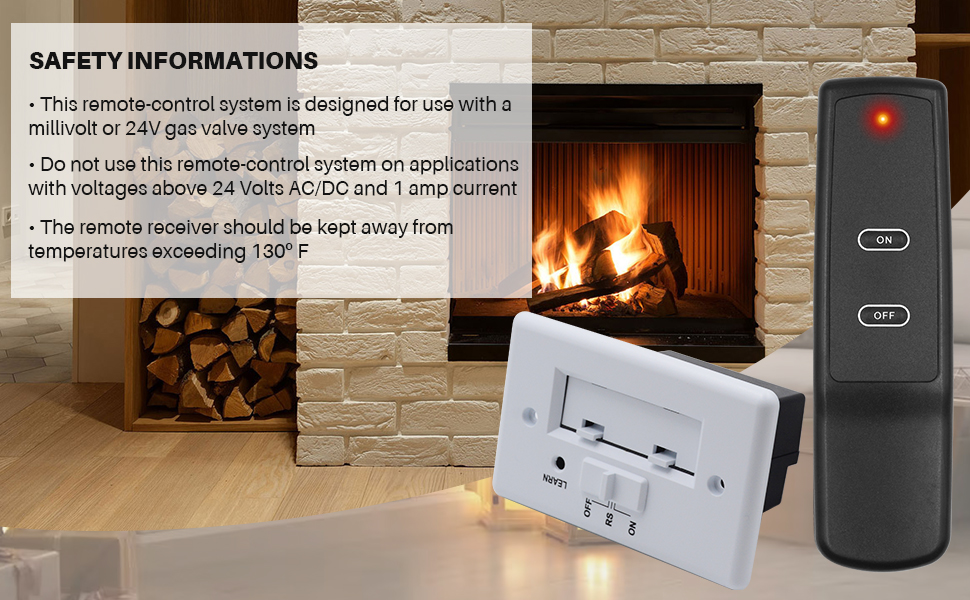

Important Safety Information
• Read this manual thoroughly prior to installing, programming or operating any remote control.
• This remote-control system is designed for use with a millivolt or 24V gas valve system. Do not use
this remote-control system on applications with voltages above 24 Volts AC/DC and 1 amp current.
• This remote-control system requires two (2) “AAA” and four (4) “AA” alkaline batteries to power the
transmitter and receiver.
• Turn appliance OFF (at the appliance or remote receiver) if you are away from your house for a
long period of time.
Installing Batteries
The remote transmitter uses two (2) “AAA” batteries. To install batteries:
1. Press down the battery door and remove the battery door.
2. Install uses two (2) “AAA” batteries as indicated on transmitter.
3. Close the battery door by snapping in place.
4. The LED signal light should illuminate when either the ON or OFF button is pressed. If the signal light
does not illuminate, check the position of the transmitter’s battery, and if the battery is fully charged.

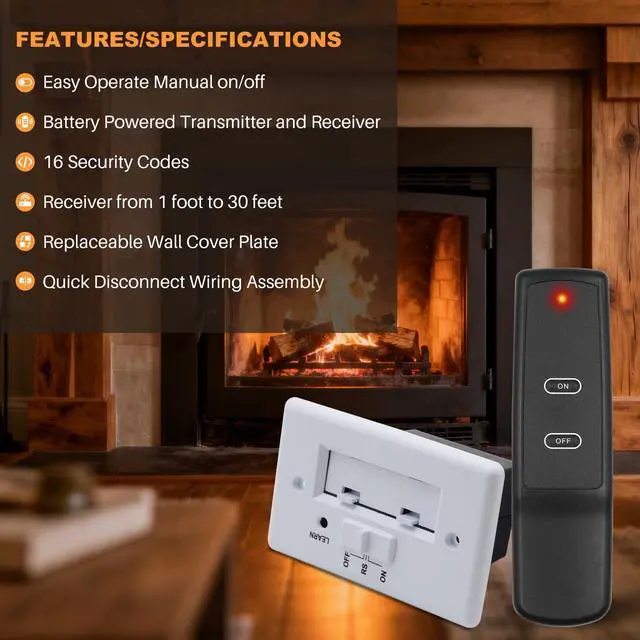

Transmitter
*this Fireplace remote control can control the fireplace thermostatically or manually with On/Mode/Set/Off operation.
*The transmitter will operate the remote receiver from 1foot to a maximum of 30 feet.
*Features a blue backlit LCD display, making it easy for you to check the temperature display at night.

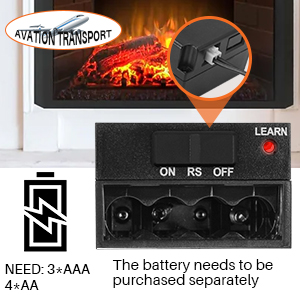

Receiver Overview
*The receiver uses four (4) "AA" batteries.Battery life is also significantly shortened if batteries are exposed to temperatures 130ºF or higher.

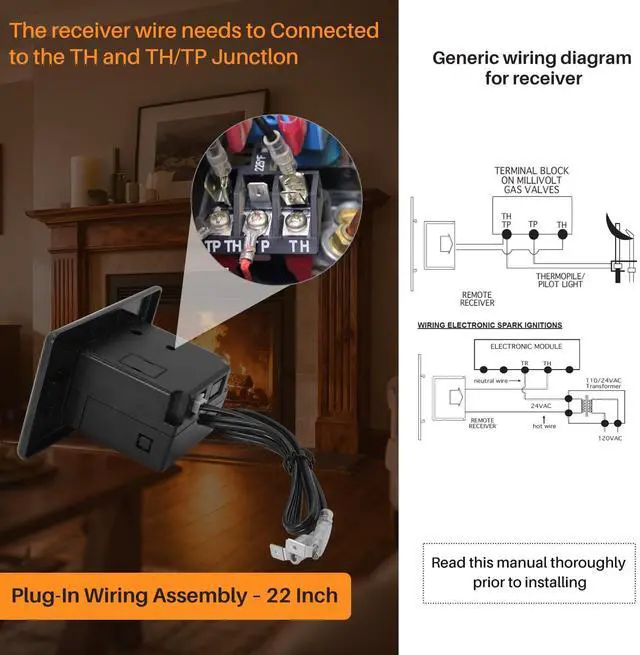

The 22-inch plug-in connection cable makes it easier to install, use, and replace the gas fireplace remote control kit.

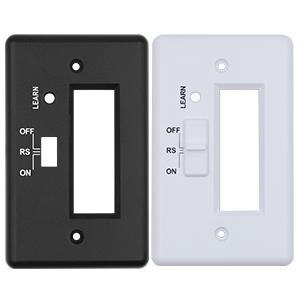

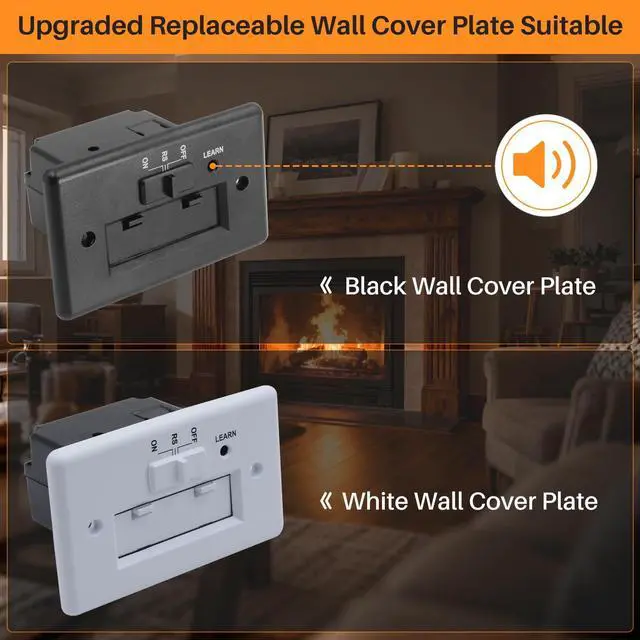

Black and White Wall Cover Plate and wall clamp
*Allows you to choose the appropriate installation plan according to the environment. Make your installation look more beautiful and better integrated into your furniture environment.
LEARNING TRANSMITTER TO RECEIVER

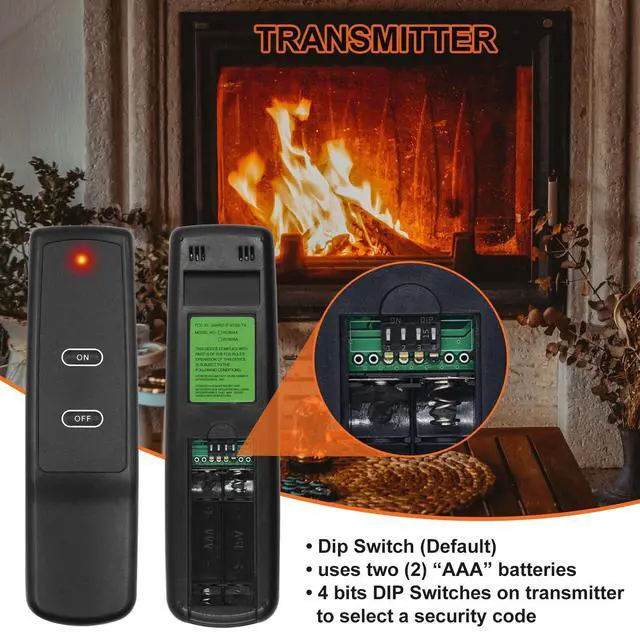

1. The transmitter privacy (DIP) Switches are preset at the factory. Setting the 4 bits DIP Switches on
transmitter to select a security code.
2. Put the receiver slide switch to “RS” location. Using a small screwdriver or end of a paper clip gently press
and hold the ‘LEARN ‘button on the receiver to accept the transmitter security code upon initial use, when you
release the LEARN button the receiver will emit an audible 3 “beep” sounds
3. After the receiver emits 3 “beep” sounds. Press the transmitter “ON “or “OFF” button and release at once.
The receiver will emit several beeps indicating that the transmitter’s code has been accepted into the receiver.
Brand: BaiAcces

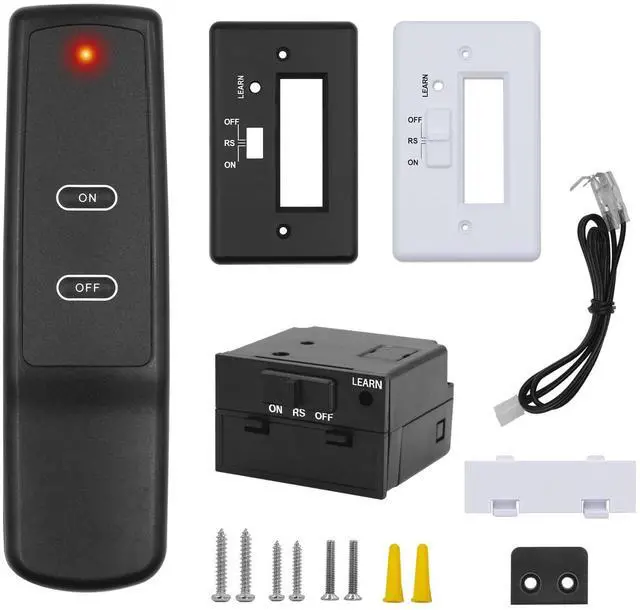

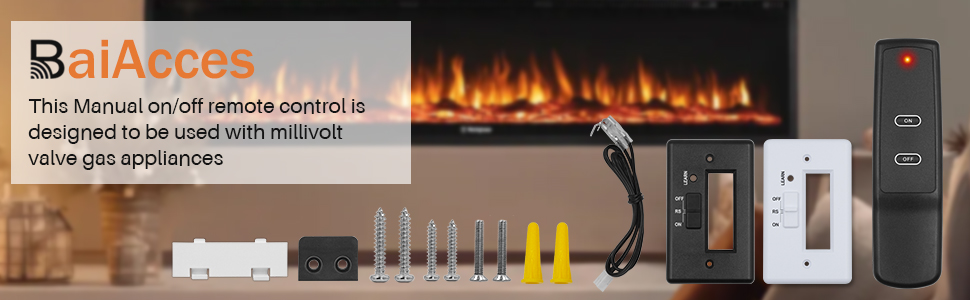

- Package Includes:
- 1*Transmitter remoter
- 1*receiver box
- 1*Wall Cover Plate(Black and White)
- 1*Batteries Cover
- 1*plug-in wiring assembly - 22 inches
- 1*wall clamp
- 1*Installation Instructions

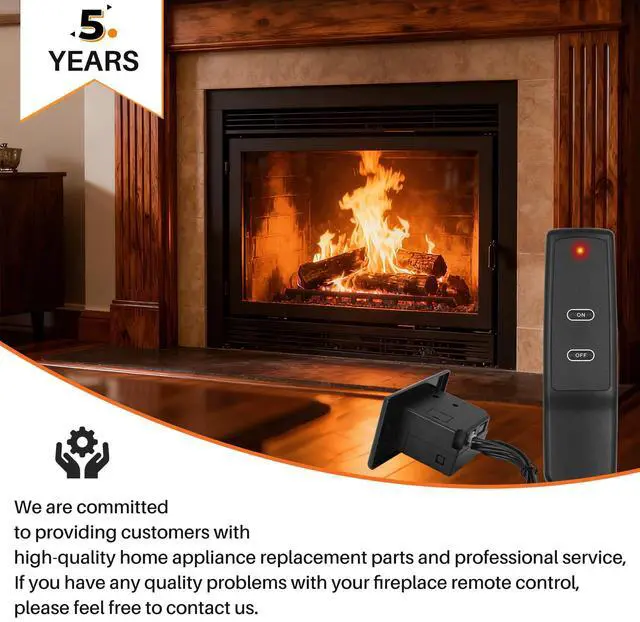

"About us"
We are committed to providing customers with high-quality home appliance replacement parts and professional service. We have built our own supply chain globally, fully involved in product development, ensuring that customers get well-qualified products.
