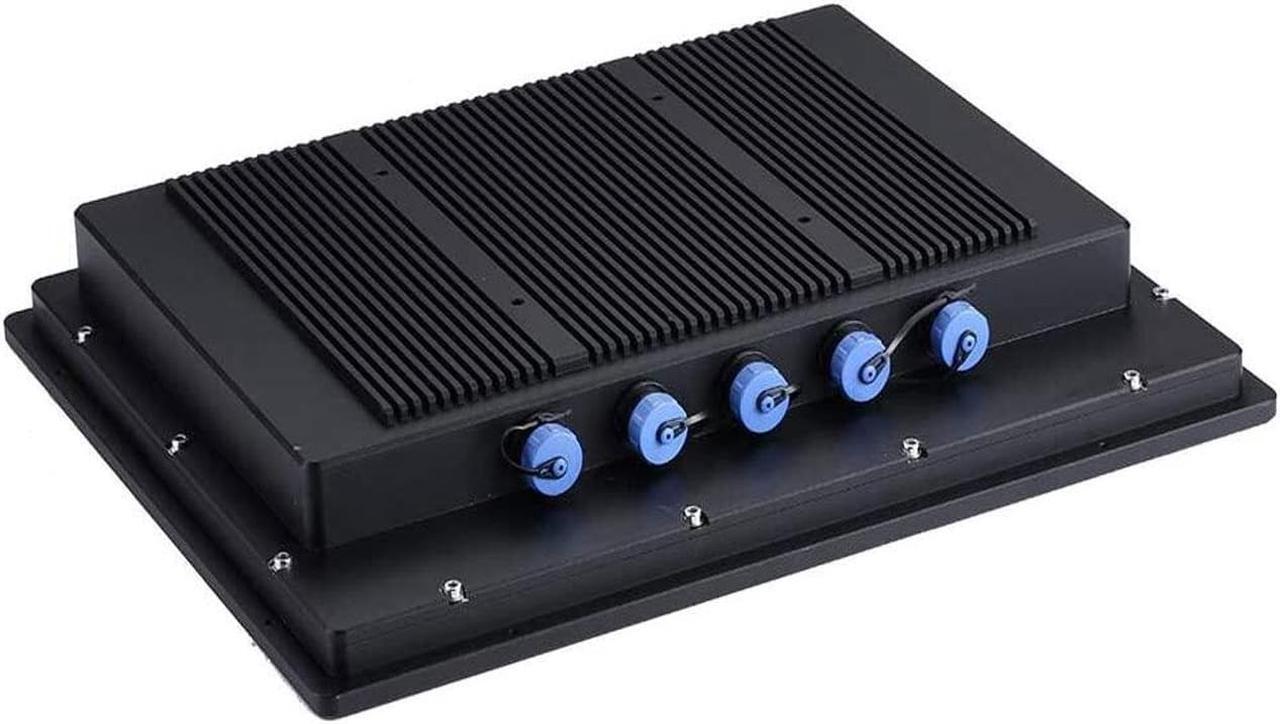

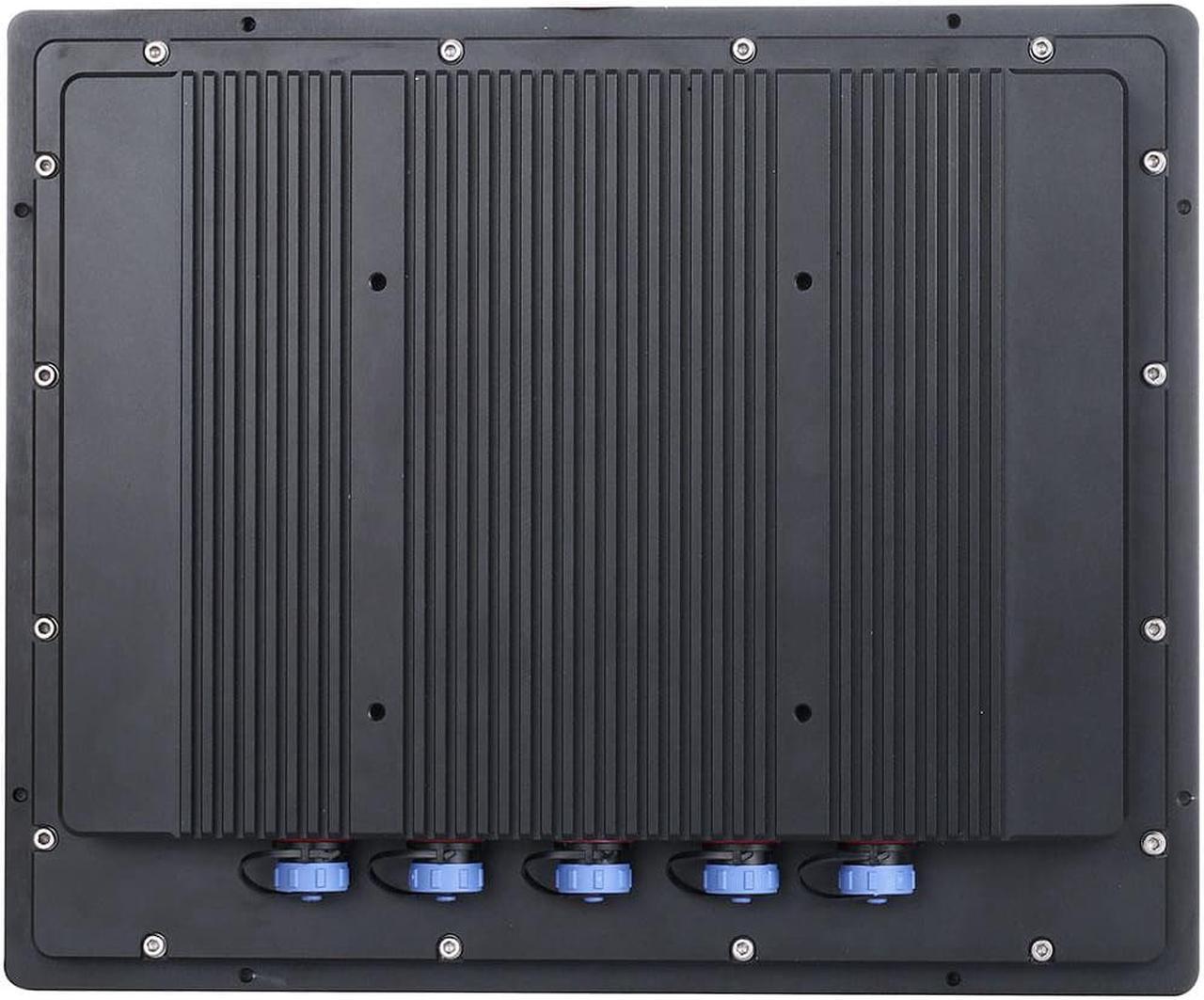

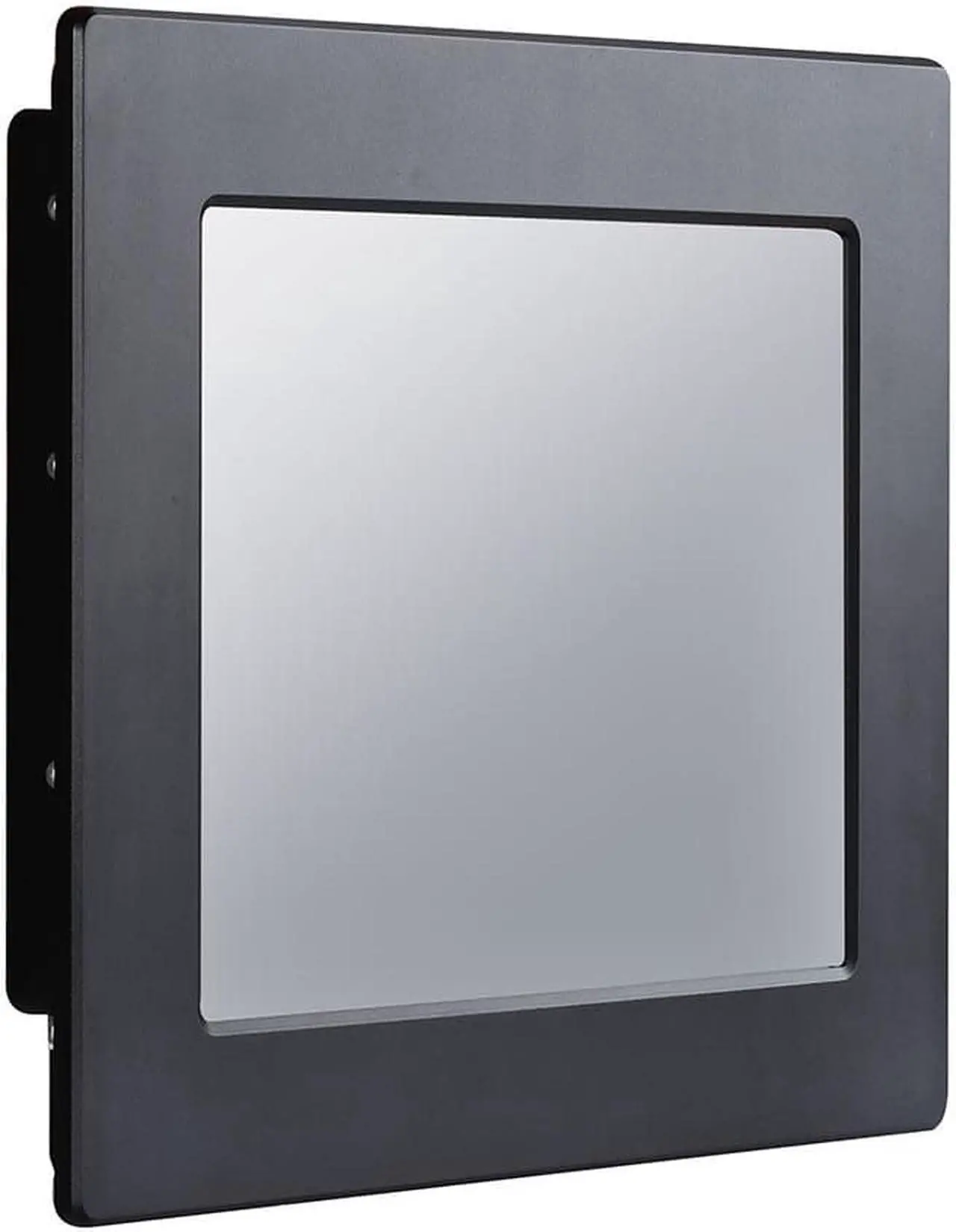

12.1 Inch Industrial All in One Panel PC Resistive Touch Screen IP67 Full Waterproof Intel Celeron J1900 Windows or Linux Dual Lan 2xUSB 2.0 1xRS485 2xRS232 4GB Ram 64GB SSD

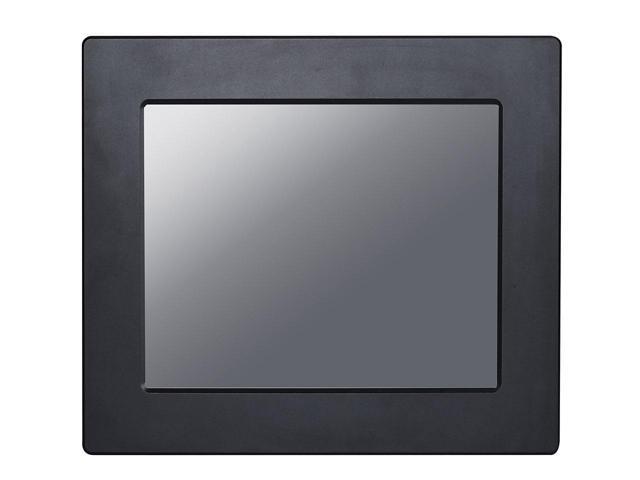

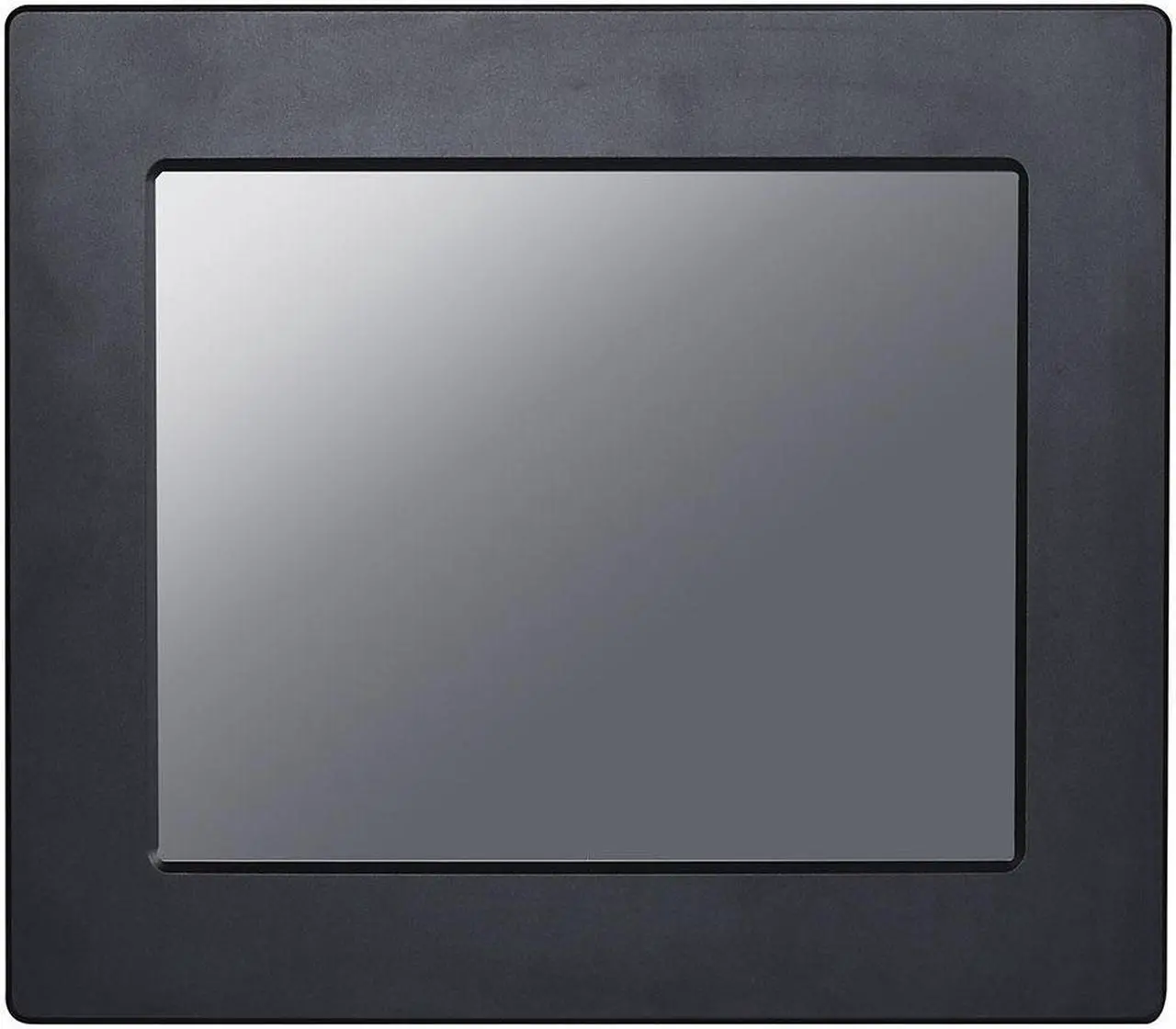

- Industrial Grade 12.1 Inch LED Screen Panel
- Imported Resistive Touch Screen

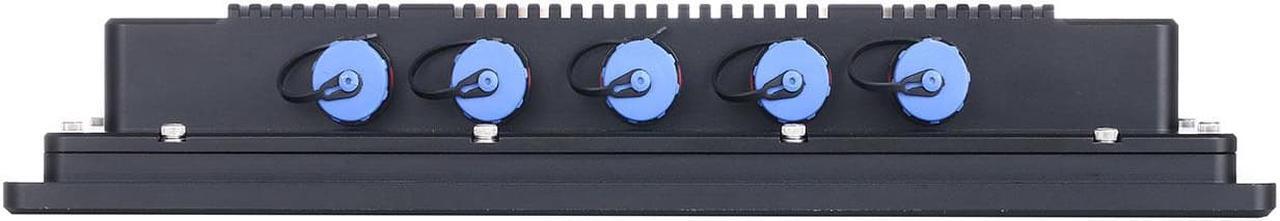

- IP67 Full Waterproof Type, Full Interface Waterproof Aviation Head Connector
- Intel Celeron Processor J1900
- RS485+ 2*RS232+ 2*LAN+ 2*USB2.0
- Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog and Other Functions
Overview
Specs
Reviews
Model Number: Z20
Panel Specification:
1. Industrial Grade 12.1 Inch LED Screen Panel
2. Imported Resistive Touch Screen
3. IP67 Full Waterproof Type, Full Interface Waterproof Aviation Head Connector
CPU: Intel Celeron Processor J1900
Memory: 4G/8G RAM
Storage: 64G/128G SSD
I/O: RS485+ 2*RS232+ 2*LAN+ 2*USB2.0
Cooling System: Fanless
BIOS: Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog and Other Functions
Network: Realtek 8111E
Physical Dimension: 326*261*46.5(mm)
Weight: 4.5KGS
Opening Hole Size: 312*247mm (Length*Width)
Display Parameters:
Resolution: 1024*768
Display Brightness: 350cd/m(2)
Contrast: 800
Response Time: 16ms
Durability (number of touches): > 35 million times
Installation Method:
Standard VESA screw hole (75*75 or 100*100mm) for flexible installation
Embedded/Wall-mounted/Desktop/Cantilevered/Other Installation Methods
Operating Temperature: 0 ~ 50°C with SSD,0 ~ 40°C with HDD
Storage Temperature: -30 ? ~ 70 ?
Operating Humidity: 10% ~ 95% @ 40 ? without condensation
Power Supply: DC100-240V AC/50-60Hz, 12V4A
Packing List: Z20 Panel PC+ Testing Power Set+ Touch Pen+ Aviation Heads+ Warranty Card
System Support: Windows 7/10,Linux Ubuntu etc
System Default Option: Windows 10 pro in English
ATTENTION: For other options, Linux or other OS, other system language, do leave us message on the order, thank you.
Panel Specification:
1. Industrial Grade 12.1 Inch LED Screen Panel
2. Imported Resistive Touch Screen
3. IP67 Full Waterproof Type, Full Interface Waterproof Aviation Head Connector
CPU: Intel Celeron Processor J1900
Memory: 4G/8G RAM
Storage: 64G/128G SSD
I/O: RS485+ 2*RS232+ 2*LAN+ 2*USB2.0
Cooling System: Fanless
BIOS: Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog and Other Functions
Network: Realtek 8111E
Physical Dimension: 326*261*46.5(mm)
Weight: 4.5KGS
Opening Hole Size: 312*247mm (Length*Width)
Display Parameters:
Resolution: 1024*768
Display Brightness: 350cd/m(2)
Contrast: 800
Response Time: 16ms
Durability (number of touches): > 35 million times
Installation Method:
Standard VESA screw hole (75*75 or 100*100mm) for flexible installation
Embedded/Wall-mounted/Desktop/Cantilevered/Other Installation Methods
Operating Temperature: 0 ~ 50°C with SSD,0 ~ 40°C with HDD
Storage Temperature: -30 ? ~ 70 ?
Operating Humidity: 10% ~ 95% @ 40 ? without condensation
Power Supply: DC100-240V AC/50-60Hz, 12V4A
Packing List: Z20 Panel PC+ Testing Power Set+ Touch Pen+ Aviation Heads+ Warranty Card
System Support: Windows 7/10,Linux Ubuntu etc
System Default Option: Windows 10 pro in English
ATTENTION: For other options, Linux or other OS, other system language, do leave us message on the order, thank you.
