Partaker 21.5 Inch TFT LED Industrial IP65 Front Panel PC, Resistance Touch Screen, I5 8260U, Windows 11, A22, TPM2.0, 2 x COM, HDMI, 2 x LAN, 9-36V 2Pin Phoenix, 8G RAM, 128G SSD
Limited time offer, ends 09/12 By Partaker Mini PC‘s Marketplace

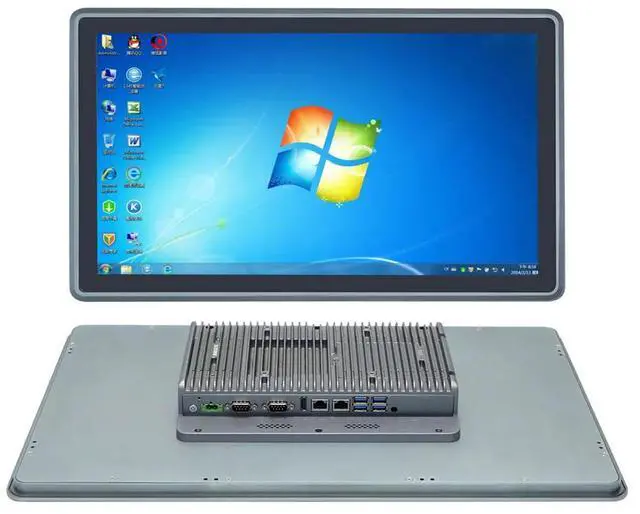

- 21.5" TFT LED industrial touch panel PC with IP65 front protection & 1920x1080 Full HD resolution
- With Core i5 processors (8250U/8260U/8350U variants) for 24/7 industrial-grade reliability
- Fanless aluminum alloy passive cooling design ensures silent, energy-efficient performance
- Versatile I/O: 2x COM (RS232/422/485), HDMI, 4x USB 3.0, 2x LAN, 9-36V Phoenix power input
- Pre-installed Win 11 Pro, auto power-on recovery, includes embedded mounting kits
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: Partaker A22
Panel: 21.5" TFT LED panel, IP65 full flat front panel
CPU: Intel I5 8250U/8260U/8259U/8265U/8350U, ship one of them
Security: TPM 2.0
Memory: 1 x SODIMM DDR4-2400, max. to 32GB RAM
Storage: 1 x M. 2 2280 SATA SSD, 1 x 2.5" SATA SSD/HDD
I/O: Power Switch, 9-36V 2Pin power supply phoenix connector, 2 x COM COM1/COM2 for RS232/RS422/RS485 optional, HDMI, 2 x LAN, 4 x USB 3.0, Audio
Expansion: 1 x Mini PCIE slot for WiFi/4G, with sim slot
Network Card: 2 x Intel 1000M LAN
Speaker: Two 8-ohm 2-watt speaker
Cooling System: Aluminum alloy, fanless

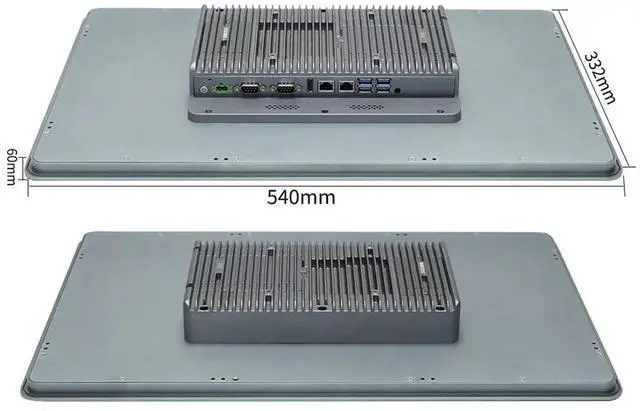

Dimension: 540 x 332 x 60mm
Embedded Installation: 528 x 320mm
Weight: 6.8 kgs
Resolution: 1920 x 1080
Brightness: 250cd/m2
Viewing Angle: Full angle
Ratio: 16: 9
Touch Screen: Resistive high-sensitivity touch screen
Life Time: More than 50 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Working Temperature: 0 ~ 50°C for commercial, -20 °C ~ 60 °C for industrial SSD, surface air flow
Working Humidity: 5% ~ 95% non-condensing
Power Supply: DC100-240V AC/50-60Hz, 12V5A, DC 9V ~ 36V wide voltage Input, support positive pole and negative electrode connect reversely protection
Packing List: Partaker A22 Panel PC, Power Supply, Power Cord, Embedded Mounting Clip x4, Warranty Card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level
System Support: Windows 11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you
Panel: 21.5" TFT LED panel, IP65 full flat front panel
CPU: Intel I5 8250U/8260U/8259U/8265U/8350U, ship one of them
Security: TPM 2.0
Memory: 1 x SODIMM DDR4-2400, max. to 32GB RAM
Storage: 1 x M. 2 2280 SATA SSD, 1 x 2.5" SATA SSD/HDD
I/O: Power Switch, 9-36V 2Pin power supply phoenix connector, 2 x COM COM1/COM2 for RS232/RS422/RS485 optional, HDMI, 2 x LAN, 4 x USB 3.0, Audio
Expansion: 1 x Mini PCIE slot for WiFi/4G, with sim slot
Network Card: 2 x Intel 1000M LAN
Speaker: Two 8-ohm 2-watt speaker
Cooling System: Aluminum alloy, fanless
Dimension: 540 x 332 x 60mm
Embedded Installation: 528 x 320mm
Weight: 6.8 kgs
Resolution: 1920 x 1080
Brightness: 250cd/m2
Viewing Angle: Full angle
Ratio: 16: 9
Touch Screen: Resistive high-sensitivity touch screen
Life Time: More than 50 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Working Temperature: 0 ~ 50°C for commercial, -20 °C ~ 60 °C for industrial SSD, surface air flow
Working Humidity: 5% ~ 95% non-condensing
Power Supply: DC100-240V AC/50-60Hz, 12V5A, DC 9V ~ 36V wide voltage Input, support positive pole and negative electrode connect reversely protection
Packing List: Partaker A22 Panel PC, Power Supply, Power Cord, Embedded Mounting Clip x4, Warranty Card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level
System Support: Windows 11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you
