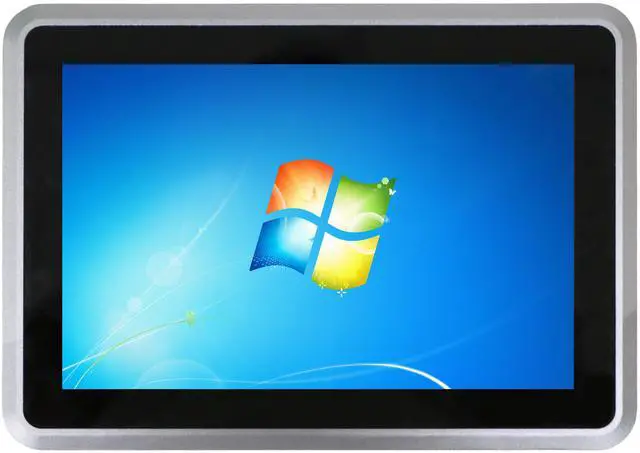

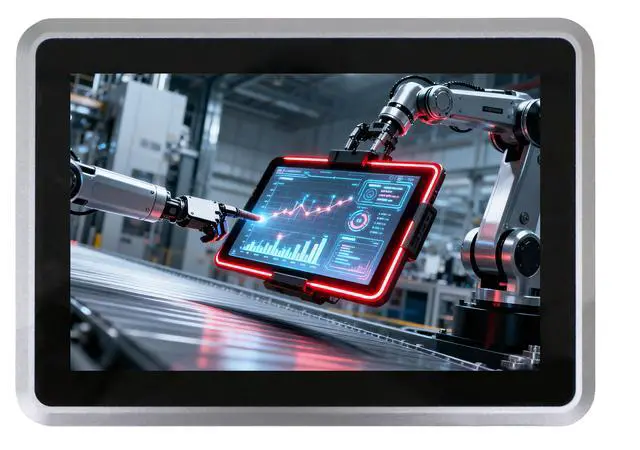

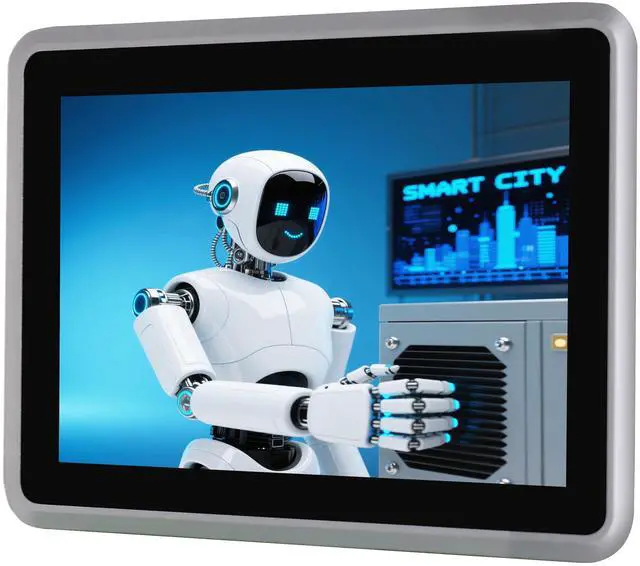

Partaker 10.1 Inch TFT LCD IP65 Industrial Panel PC, Capacitive Touch Screen Computer, I5 8250U, Win 10 Pro, A25, Dual Lan, HDMI, 2 x COM, 4 x USB, 8GB RAM 512GB SSD
- 10.1-Inch Multi-Touch Display: IPS screen with 1280×800 resolution delivers smooth, responsive touch operation without the need for external input devices.
- Fanless All-Aluminum Construction: Robust aluminum alloy housing provides silent, reliable, and continuous performance in demanding industrial environments.
- Versatile Mounting Compatibility: Supports both embedded installation and VESA-standard mounts for easy integration into control panels, machinery, and consoles.
- Comprehensive Industrial Connectivity: Equipped with dual RS232/485 serial ports and dual Gigabit Ethernet ports for flexible equipment and network communication.
- Enhanced Computing Platform: Features an i5-8250U quad-core processor, supports up to 32GB DDR4 memory and one mSATA storage slot for demanding multitasking and complex computational applications.
- IP65 Front Panel Protection: Fully sealed flat front panel ensures dust-tight and water-resistant performance, designed for harsh or high-traffic operational conditions.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: Partaker A25
Color: Gray (color customizable)
Material: Aluminum alloy shell
Processor: Intel Core I5 8250U Processor, 6M Cache, up to 3.40 GHz
Panel: IP65 Waterproof front panel
Memory: 2*DDR4/32G Max
BIOS: AMI EFI BIOS
Display Port: 1*HDMI, 1*LVDS (LVDS has been connected to the LCD screen, synchronous/asynchronous dual display)
Storage: 1*MSATA hard disk
Expansion slot: 2*Mini PCIE slots (support 1*WIFI/Bluetooth/3G/4G with SIM card holder, support 1* wifi)

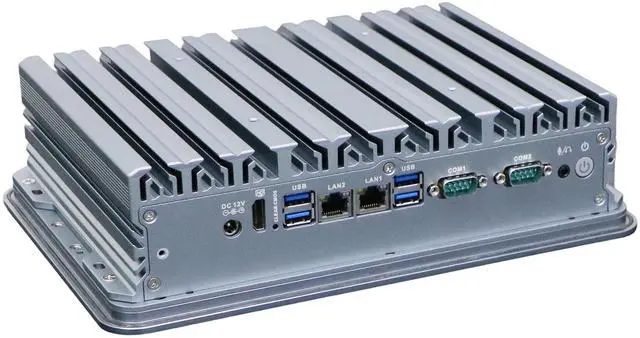

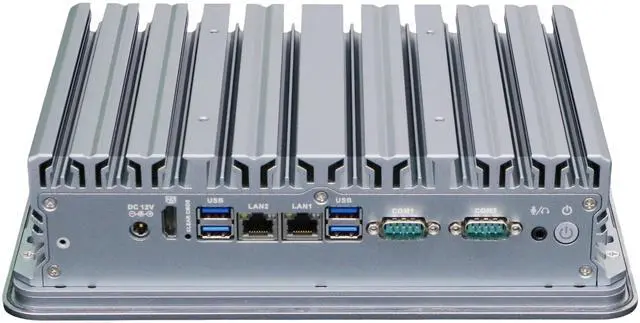

I/O Port: 1*HDMI, 2*COM (COM1-2 RS232/485, Customizable 6 COM), 1*Power Button, 1*DC, 1*audio two-in-one, 4*USB, 2*Realtek Gigabit network ports, support network wake up /PXE
Other Functions: Power on, timer on, watchdog (0~255 level)
Expansion options: (Standard shipment does not include this interface): GPIO (4 channels), 4*COM, 2*USB)
LCD: Screen size- 10.1 inch TFT-LCD; screen brightness-430 cd/m2; viewing Angle- full Angle, Screen ratio 16; 10; resolution-1280 * 800;
Touch screen: Industrial capacitive touch screen, the touch life can reach more than 50 million times;
Speaker: 2*82W speakers
Input Voltage: DC12V input, customizable DC 9~36V wide voltage input
Work Temperature: -20 ~ +60 (solid state drive), surface air flow
Work Humidity: 5% ~ 95% non-condensable state
Dimension: 271.4 * 190 * 73.5 mm
Embedded size: 262 * 180 mm
Weight: 2.8KG s
System: Support Windows 7/10/Linux, default system with Windows 10 pro, if need other system, leave us message after order placed.
Application: Industrial automation, medical, logistics and transportation, warehousing, machine vision etc.
Color: Gray (color customizable)
Material: Aluminum alloy shell
Processor: Intel Core I5 8250U Processor, 6M Cache, up to 3.40 GHz
Panel: IP65 Waterproof front panel
Memory: 2*DDR4/32G Max
BIOS: AMI EFI BIOS
Display Port: 1*HDMI, 1*LVDS (LVDS has been connected to the LCD screen, synchronous/asynchronous dual display)
Storage: 1*MSATA hard disk
Expansion slot: 2*Mini PCIE slots (support 1*WIFI/Bluetooth/3G/4G with SIM card holder, support 1* wifi)
I/O Port: 1*HDMI, 2*COM (COM1-2 RS232/485, Customizable 6 COM), 1*Power Button, 1*DC, 1*audio two-in-one, 4*USB, 2*Realtek Gigabit network ports, support network wake up /PXE
Other Functions: Power on, timer on, watchdog (0~255 level)
Expansion options: (Standard shipment does not include this interface): GPIO (4 channels), 4*COM, 2*USB)
LCD: Screen size- 10.1 inch TFT-LCD; screen brightness-430 cd/m2; viewing Angle- full Angle, Screen ratio 16; 10; resolution-1280 * 800;
Touch screen: Industrial capacitive touch screen, the touch life can reach more than 50 million times;
Speaker: 2*82W speakers
Input Voltage: DC12V input, customizable DC 9~36V wide voltage input
Work Temperature: -20 ~ +60 (solid state drive), surface air flow
Work Humidity: 5% ~ 95% non-condensable state
Dimension: 271.4 * 190 * 73.5 mm
Embedded size: 262 * 180 mm
Weight: 2.8KG s
System: Support Windows 7/10/Linux, default system with Windows 10 pro, if need other system, leave us message after order placed.
Application: Industrial automation, medical, logistics and transportation, warehousing, machine vision etc.
