Partaker 17 Inch Industrial Panel PC Touch Screen, Resistive Industrial Display, All In One Computer, J1900, Win 11 Pro, A29, Dual Lan, HDMI, 2 x COM, 4 x USB, 4GB RAM 128GB SSD
- 17 Inch Industrial Resistive Touch Panel PC: 1280×1024 5:4 TFT LCD with IP65rated flat front panel, 250 cd/m² brightness, and full viewing angle, built for industrial control and machine interface applications.
- Fanless Aluminum Cooling: Passive cooling design ensures silent, maintenancefree operation; supports -20°C to +60°C widetemperature range (with SSD) and 5%~95% humidity for reliable 24/7 performance in harsh environments.
- Rich I/O & Expansion: Dual COM (RS232/485), dual Gigabit LAN, USB 3.0 + 3× USB 2.0, plus 2× Mini PCIe slots with SIM slot for WiFi/BT/3G/4G integration and future connectivity upgrades.
- Industrial-Grade Touch Durability: Highsensitivity resistive touch screen rated for over 50 million touches, paired with dual storage (mSATA + 2.5" SATA) and dual speakers for versatile application needs.
- Flexible Mounting & Power: Supports embedded, wall, desktop, or cantilever installation; standard 12V DC input with optional 936V widevoltage customization; includes auto poweron, WakeonLAN, PXE boot, and watchdog timer for stable automation deployment.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Model Number: Partaker A29
Panel: 17" TFT LCD panel, IP65 full flat front panel
CPU: Celeron Processor J1900 2M Cache, up to 2.42 GHz
Memory: 1 x SODIMM DDR3L 1333, MAX. 8GB RAM
Storage: 1 x mSATA SSD, 1 x 2.5 Inch SATA SSD/HDD

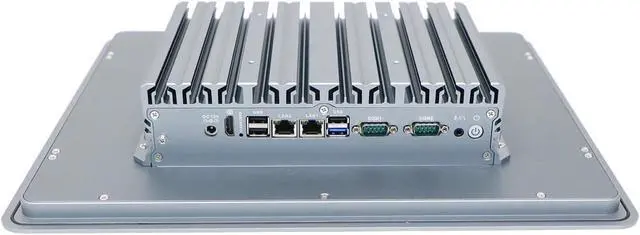

I/O: Power Switch, Audio, 2 x COM COM1/COM2 for RS232/RS485, USB 3.0, 3 x USB 2.0, 2 x LAN, CLR CMOS, HDMI, DC_IN
Expansion: 2 x Mini PCIE slot for WiFi/BT/3G/4G, with sim slot
Network Card: 2 x Realtek Gigabit LAN
Speaker: Two 8-ohm 2-watt speaker

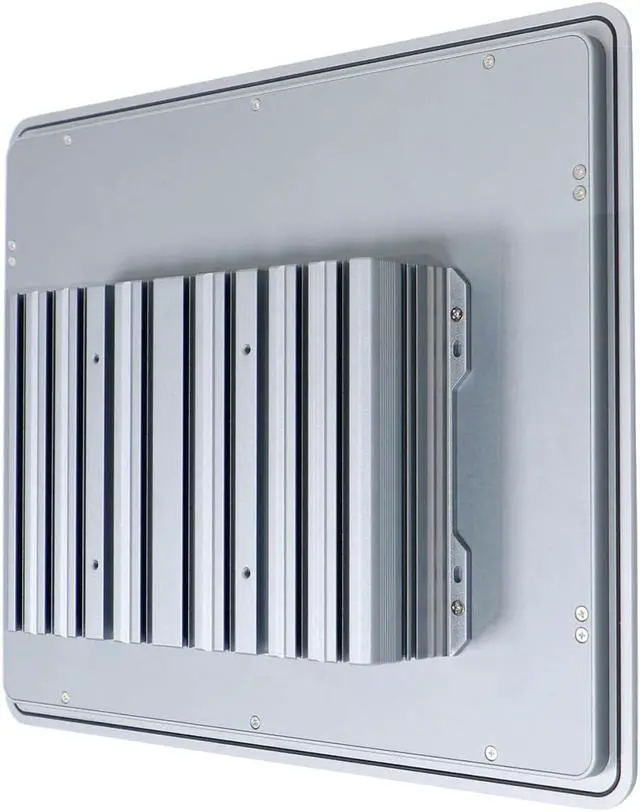

Cooling System: Aluminum alloy, fanless
Dimension: 408.5 x 346 x 78mm
Embedded Installation: 389 x 321mm
Weight: 5.5 kgs
Resolution: 1280 x 1024
Brightness: 250cd/m2
Viewing Angle: Full angle
Ratio: 5: 4
Touch Screen: Resistive high sensitivity touch screen
Life Time: The touch life can reach more than 50 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Work Temperature: -20 °C ~ 60 °C for SSD, surface air flow
Work Humidity: 5% ~ 95% non-condensing
Power Supply: DC100-240V AC/50-60Hz, 12V, customizable DC 9~36V wide voltage input
Packing List: Panel PC, Power Supply, Power Cord, Embedded Mounting Clip x4, Warranty Card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level
System Support: Windows 11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you
Panel: 17" TFT LCD panel, IP65 full flat front panel
CPU: Celeron Processor J1900 2M Cache, up to 2.42 GHz
Memory: 1 x SODIMM DDR3L 1333, MAX. 8GB RAM
Storage: 1 x mSATA SSD, 1 x 2.5 Inch SATA SSD/HDD
I/O: Power Switch, Audio, 2 x COM COM1/COM2 for RS232/RS485, USB 3.0, 3 x USB 2.0, 2 x LAN, CLR CMOS, HDMI, DC_IN
Expansion: 2 x Mini PCIE slot for WiFi/BT/3G/4G, with sim slot
Network Card: 2 x Realtek Gigabit LAN
Speaker: Two 8-ohm 2-watt speaker
Cooling System: Aluminum alloy, fanless
Dimension: 408.5 x 346 x 78mm
Embedded Installation: 389 x 321mm
Weight: 5.5 kgs
Resolution: 1280 x 1024
Brightness: 250cd/m2
Viewing Angle: Full angle
Ratio: 5: 4
Touch Screen: Resistive high sensitivity touch screen
Life Time: The touch life can reach more than 50 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Work Temperature: -20 °C ~ 60 °C for SSD, surface air flow
Work Humidity: 5% ~ 95% non-condensing
Power Supply: DC100-240V AC/50-60Hz, 12V, customizable DC 9~36V wide voltage input
Packing List: Panel PC, Power Supply, Power Cord, Embedded Mounting Clip x4, Warranty Card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level
System Support: Windows 11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you
