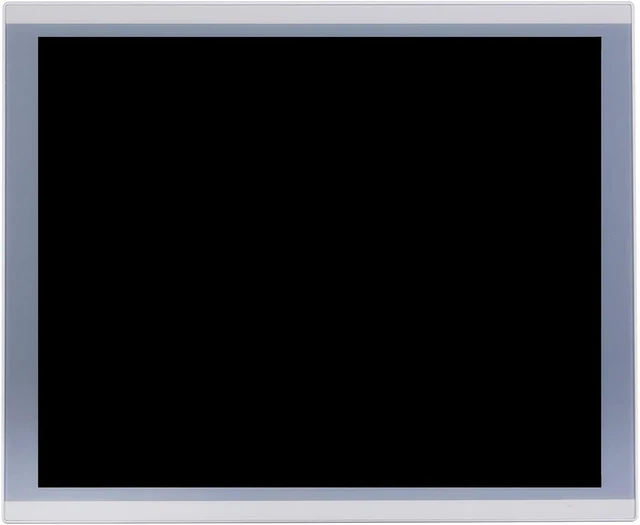

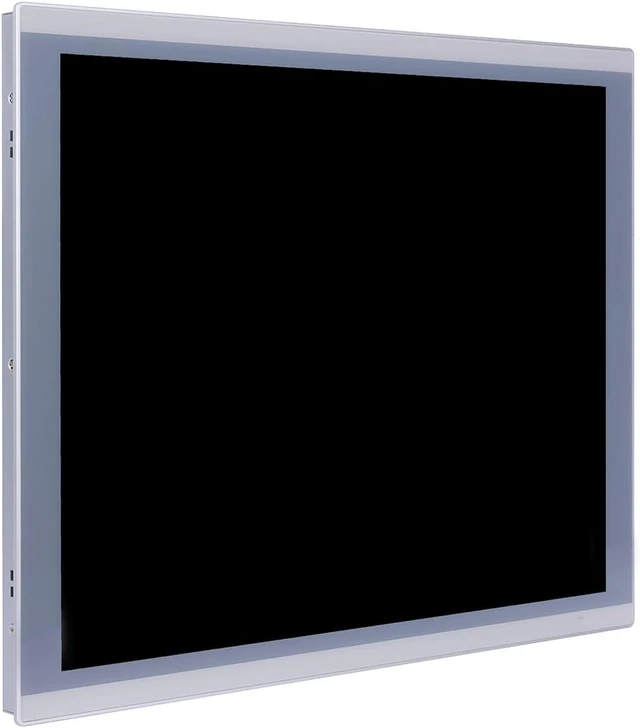

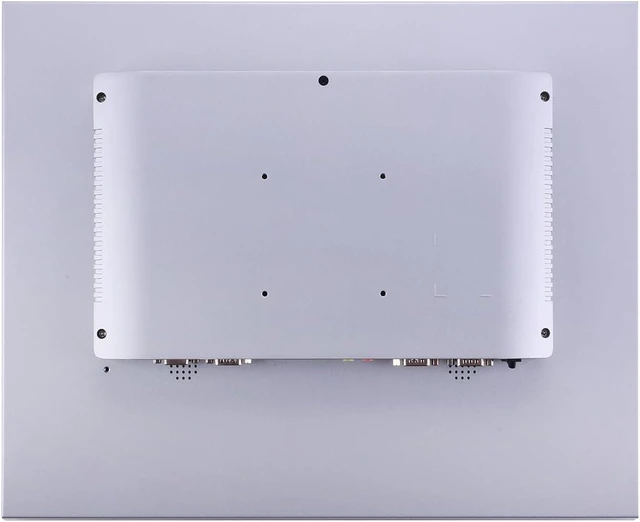

Partaker 19" TFT LED IP65 Industrial Panel PC, 10-Point Projected Capacitive Touch Screen, I7 8560U 8565U, A10, Dual Lan, VGA, HDMI, 2 x COM, 8G RAM, 128G SSD
- 19" Industrial Panel PC with Premium Display: Features a 1280x1024 LED panel, 250 nits brightness, IP65 front protection, and a highly durable 10-point projected capacitive touch screen.
- Powerful Performance & Triple Storage: Powered by an 8th Gen Core i7 processor with dual DDR4 slots up to 64GB. Supports versatile storage via mSATA, M.2 2280 (NVMe/SATA), and 2.5" SATA drives.
- Rich I/O for Seamless Integration: Equipped with HD, VGA, dual Gigabit LAN, 2x COM, 4x USB ports, and audio in/out, making it easy to connect to diverse industrial peripherals.
- Flexible Expansion & Fanless Design: Includes a Mini PCIe slot with a SIM socket for 4G connectivity. The rugged aluminum alloy chassis offers silent, fanless cooling for dusty environments.
- Reliable 24/7 Operation: Built for continuous use with a 255-level hardware watchdog, wide operating temperatures (0~50°C with SSD), and flexible embedded or wall-mount installation options.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Model Number: Partaker A10
Panel: 19" TFT LED panel, front panel protection IP65
CPU: Core I7 Gen. 8th CPU, ship one of them
Memory: 2 x SODIMM DDR4-2400, max. to 64GB RAM
Storage: 1 x mSATA SSD, 1 x M. 2 2280 NVME PCIE X4/SATA SSD, 1 x 2.5" SATA SSD/HDD
I/O: 12V DC, HDMI, VGA, 2 x USB 3.0, 2 x USB 2.0, 2 x LAN, AUDIO-IN&OUT, 2 x COM, POWER_SW
Expansion: Mini PCIE slot for WiFi/4G, with sim slot
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 428 x 351.65 x 54.5 mm
Weight: 5.4 kgs
Opening Hole: 422 x 346mm
Resolution: 1280 x 1024
Perspective: 80L, 80R, 60T, 60B
Brightness: 250cd/m2
Contrast: 1000
Backlight Life: 30, 000 hours min.
Touch Screen: 10-point projected capacitive touch screen
Transmittance: 86±5% at 550 nm wavelength
Durability Touch Count: 200 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20 ~ 60
Operating Humidity: 10% ~ 95% @ 40 without condensation
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: Partaker A10 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you
Panel: 19" TFT LED panel, front panel protection IP65
CPU: Core I7 Gen. 8th CPU, ship one of them
Memory: 2 x SODIMM DDR4-2400, max. to 64GB RAM
Storage: 1 x mSATA SSD, 1 x M. 2 2280 NVME PCIE X4/SATA SSD, 1 x 2.5" SATA SSD/HDD
I/O: 12V DC, HDMI, VGA, 2 x USB 3.0, 2 x USB 2.0, 2 x LAN, AUDIO-IN&OUT, 2 x COM, POWER_SW
Expansion: Mini PCIE slot for WiFi/4G, with sim slot
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 428 x 351.65 x 54.5 mm
Weight: 5.4 kgs
Opening Hole: 422 x 346mm
Resolution: 1280 x 1024
Perspective: 80L, 80R, 60T, 60B
Brightness: 250cd/m2
Contrast: 1000
Backlight Life: 30, 000 hours min.
Touch Screen: 10-point projected capacitive touch screen
Transmittance: 86±5% at 550 nm wavelength
Durability Touch Count: 200 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20 ~ 60
Operating Humidity: 10% ~ 95% @ 40 without condensation
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: Partaker A10 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you
