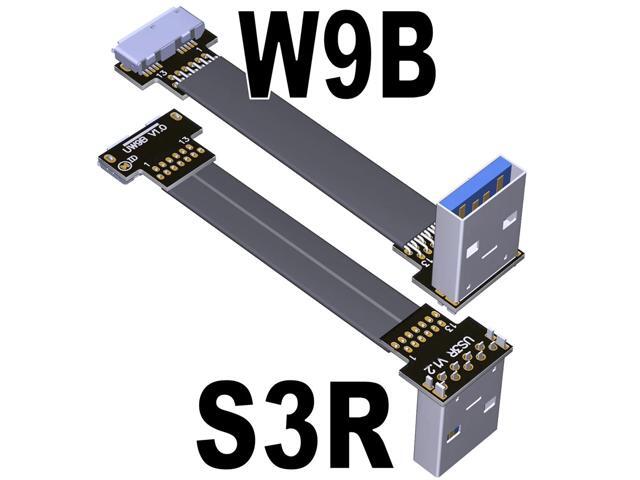

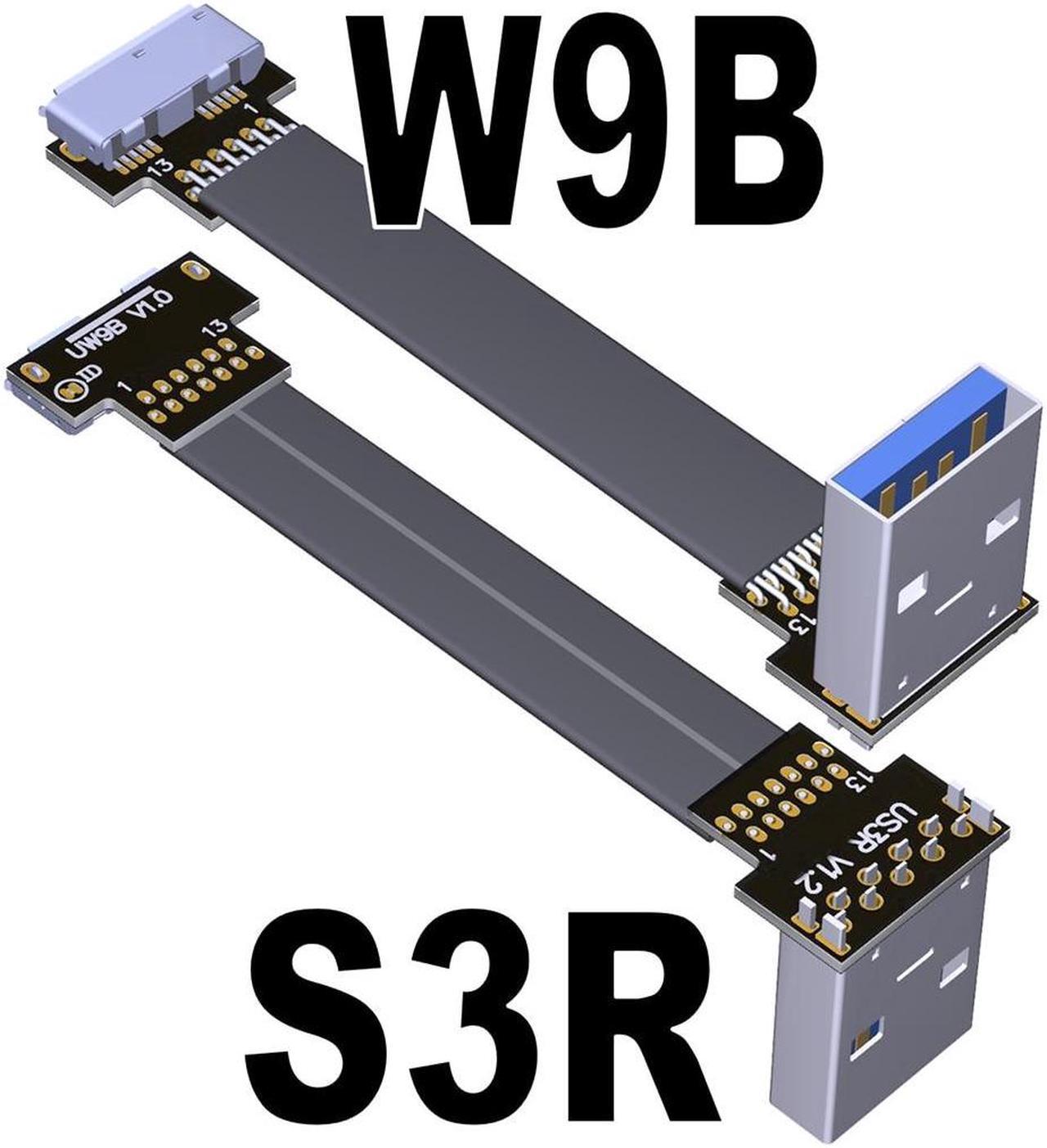

USB 3.0 Flat Ribbon Cable Male to Female Type A to Micro-B Adapter Connector USB Data Extender 13P Support OTG 20/30cm Extension(S3R-W9B)(20cm)

USB 3.0 Flat Ribbon Cable Male to Female Type A to Micro-B Adapter Connector USB Data Extender 13P Support OTG 20/30cm Extension
Product model: USW3-MF-OTG-13P series products
Product name: A-type to Micro-B extension cable
Wire length: 20cm 30cm (length customization is supported, if you need other lengths, please contact customer service to change the price, thank you! )
Compatible range: USB-A to micro-B OTG
Speed bandwidth: USB 3.0 standard 5G/bps high speed
Current capacity: 1.5A within 50cm, 0.9A within 1 meter.
Product application: for Intel UP Board microcontroller development board and other devices. Connect industrial cameras, hard disk boxes and other extended uses through micro-B 3.0 OTG
Purchase restrictions: This product is designed to be connected to built-in USB OTG devices. It is not suitable for ordinary external use. The product engineer specifies the purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for ordinary purposes.
Wire length description:
Wire length does not include PCB and connectors.
Summary of technical issues
How thick is the wire? Is it soft?
The thickness of the wire of this product is only 1.4 mm, so the wire of this product is softer.
How is the quality of the wire? Is there a shield?
No, no metal shielding, this wire uses EMI shielding conductive polymer, new material for EMI shielding, flat cable design. This technique allows each cable to be completely covered by an EMI shield of conductive polymer to prevent incoming or outgoing emission of electromagnetic frequencies, minimize interference and performance degradation, and reduce the weight of the extender.
