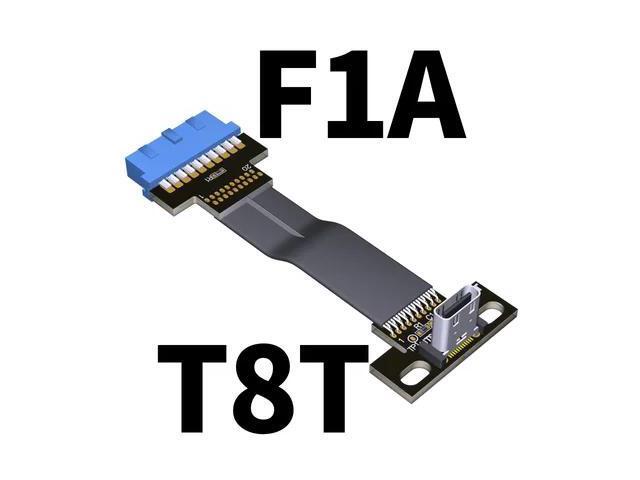

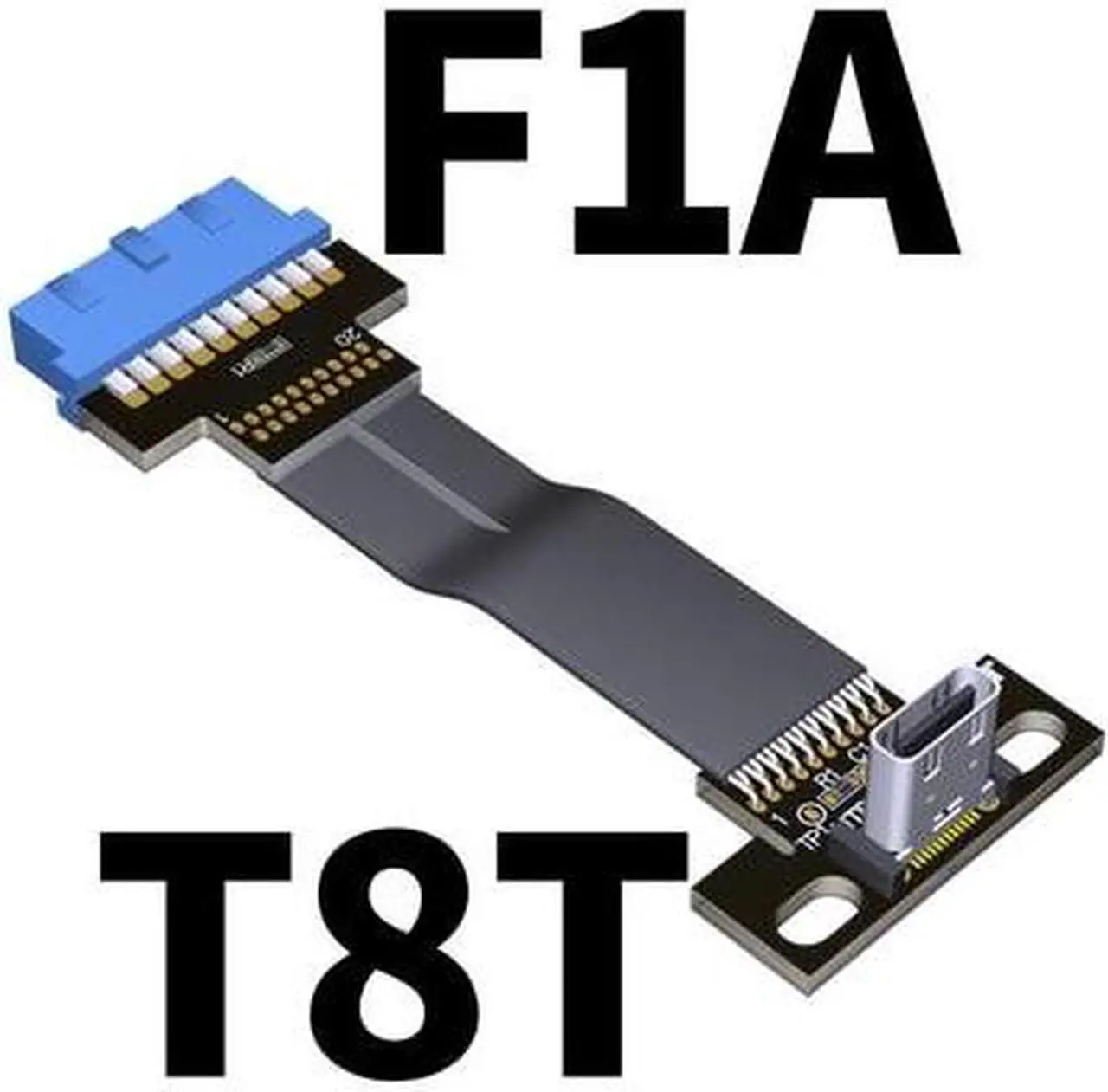

USB 3.0 Type-C to Internal 19P / 20P Extension Adapter Cable TypeC to Type-E Data Cable USB3.0 USB-C Connector with PCI Baffle(T8T-F1A)(25cm)

USB 3.0 Type-C to Internal 19P / 20P Extension Adapter Cable Type-C to Type-E Data Cable USB 3.0 USB-C Connector with PCI Baffle
Colour: Black
Length: 15cm, 25cm
product description:
Product model: UTF series products
Product name: USB 3.0 USB-C to built-in 19/20P extension cable
Wire length: 3cm-3m (support length customization, if you need other lengths, please contact us to change the price, thank you! )
Adaptation range: USB 3.0 type-C to built-in 19P/20P
Speed bandwidth: USB 3.0 standard (support 5G/bps within 1 meter)
Current capacity: 3A (measured to support 3A within 50cm, 1.5A within 1 meter)
Product application: ITX motherboard built-in USB device extension adapter, suitable for A4 chassis customized side panel USB type-C seat.
Note: The length of the wire refers to the part of the visible wire, excluding PCB and connectors.
Product advantages:

1. Use German patent imported wire, support USB 3.0 5G/bps speed.

2. Cable length advantage, from 3 cm to 3 meters can be customized.

3. The differential signal has no via hole design, the signal is pure, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit phenomenon, and the product is durable.

4. The PCB is made of high-quality materials with high frequency and low resistance. The PCB is made of precision. The PCB uses high TG plates. The thickness of the copper material is thickened to 1oz. The PCB power circuit is strengthened and the use of 2 5V power core wires is strengthened to transmit current up to 3A.
