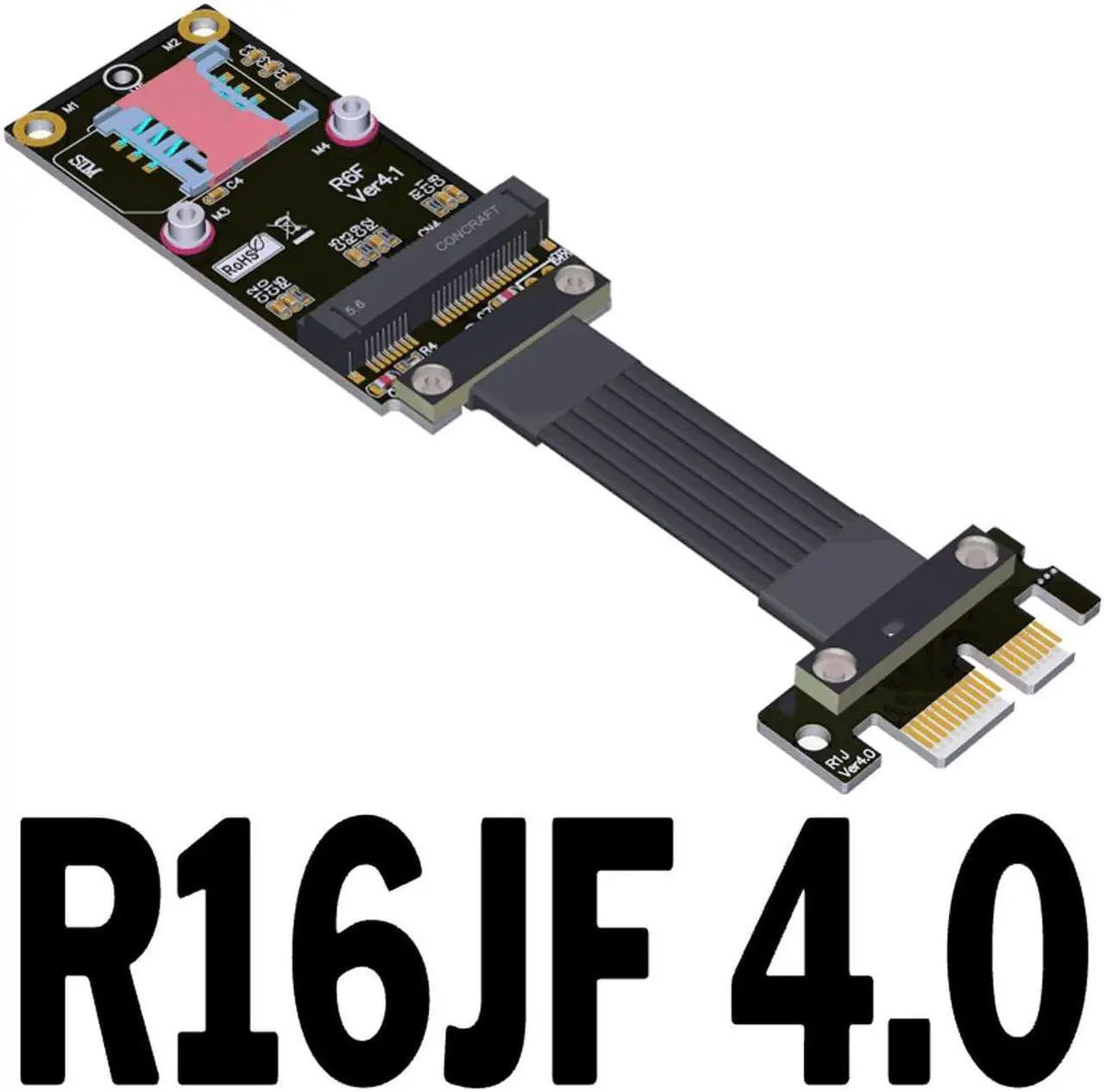

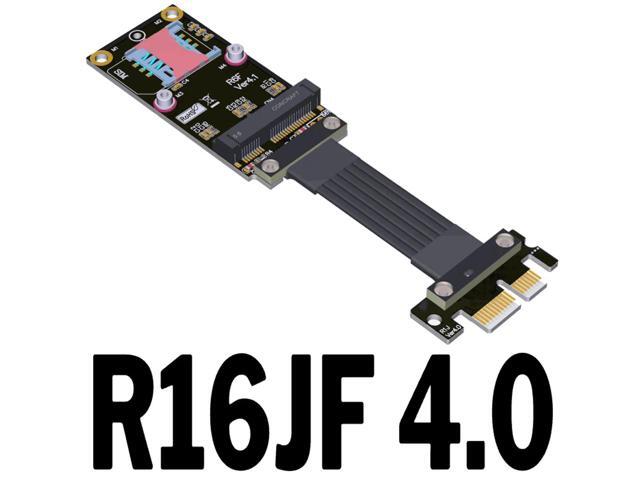

R16JF Key A+E PCI Express 4.0 x1 To Mini PCIe M.2 WiFi Signal Extension Cable mPCIe Minipcie PCIE 4.0 1x Riser Card Adapter(25cm)(R16JF 4.0)

PCI Express 4.0 x1 To Mini PCIe (Minicard) /M. 2 WiFi Signal Extension Cable mPCIe Minipcie PCIE 4.0 1x Network Riser Card Adapter
Brand: XT-XINTE
Product number:
R15JF 4.0 -M. 2 ngff key AE WiFi wireless network card to PCI-E X1 signal cable
R16JF 4.0 -mini-PCIe to PCI-E X1 signal cable
Wire length: 3-100cm (If you need other lengths, please contact us to change the price, thank you! )
Speed bandwidth: PCIe 3.0 / 4.0
Product function: industrial control server equipment connection, PCIe signal high-speed transmission
Friendly reminder: There are many compatibility problems with this product. Incorrect assembly or improper operation will burn your equipment. Only designated by professional engineers to purchase. This product is a customized product and is not refundable or exchangeable. Please consider and confirm clearly before placing an order.
There are many restrictions on the use of this product:
R15JF 4.0 does not support NVMe SSD, does not support WWAN, and only supports M. 2 wireless network card with PCIE channel.
R16JF 4.0 does not support mSATA, WWAN, and only supports mPCIe cards with PCIE channels.
Length description: The length of the wire refers to the part of the wire, excluding the PCB and the connector.
Product advantages:

1. Support PCIe 3.0 / 4.0 full-speed stable transfer.

2. Cord length advantage, from 3 cm to 1 meter can be customized.

3. Differential signal has no via hole design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there will be no CAF micro short circuit phenomenon, and the product is durable

4. The product is made of high-quality materials, the PCB is made of precision, the thickness of the copper material is thickened to 1oz, the gold plated content of the gold finger is sufficient, and the gold plated foot has good electrical conductivity, which can reduce the blue screen of crash caused by the increase of oxidation and rust resistance.

5. The wire used in the product is very durable. Use PCB gaskets with a thickness of 3mm at the metal welding point, and lock the screws and hexagonal nuts to fasten the product. The product is strong and reliable, resistant to pulling, anti-interference, and will not break the wire. The nail drop problem. The wire can be bent or folded without affecting the use.

6. The PCB is designed with short and fattening, which will not get stuck on the graphics card. The fattening and long design makes the board easier to install and reduces the chance of damage.
