1 PCS All Black Sleeved 5 Way PWM Splitter Hub for 12V Computer Fans(0.4m)

product description
[product name]: second generation upgraded version of the lock type network computer fan hub [product size]: length 5.8 cm width 1.8 cm [Wire length]: 40cm (other sizes can be customized) [Extended number]: 5
[insulation material]: PVC insulation [Conductor
Specifications]: 17*
0.12TS [Conductor material]: tinned
copper [Wire outer diameter]: OD
1.4 mm*4 [rated temperature]: 80
C [wire color]: black
[product weight]: 20
grams [product interface]: one end lock type 4Pin needle seat, the other end signal line is the computer motherboard 4Pin interface, the power supply line is the big 4Pin D port. [Product
Function]: Five fans use the large 4Pin interface for power supply at the same time, which can reduce the load on the motherboard, increase the service life of the motherboard, and realize the PWM speed regulation function. [Packing method]: Pearl
film bag use:

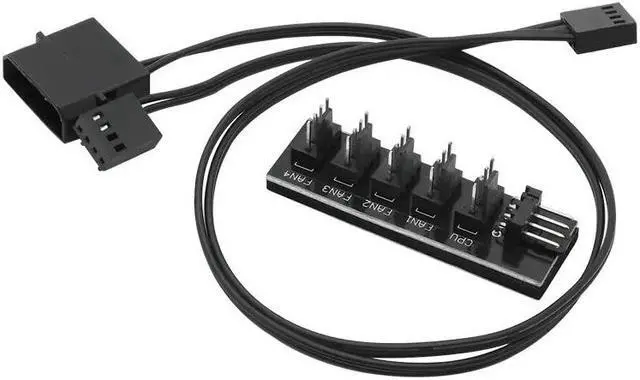

1: Expand the 5-pin/4-pin interface of the 5-position fan to solve the problem of insufficient motherboard interface and centralized processing of fan wires. 2: CPU interface is connected to the motherboard cpu fan interface, the first cpu fan dedicated interface. The FAN1/FAN2/FAN3/FAN4 interface is a pwm conventional fan interface. 3: This line has two interfaces on the top, one is the big 4Pin power supply interface, the power supply is connected to the D-shaped port of the power supply, and the other is the 4Pin speed measurement and temperature control (PWM) function, which is inserted into the four pins of the computer motherboard, so that several The fan simultaneously realizes the synchronous temperature control function with the motherboard.
