    New Dell T160 ( 4 x 3.5 - inch Drives) Tower Server - E2414 Option, No Memory, No Disk, Single Power Supply

    • - Compact and Space - saving: It adopts a 3U form factor with a chassis volume of less than 17 liters, which is suitable for deployment in various environments, such as warehouses, retail stores, or office desktops, and has good acoustic performance, suitable for office use.
    • - Processor Performance: It is equipped with an Intel Xeon E - 2414 processor, which has 4 cores, 4 threads, a main - frequency of 2.6GHz, and a cache of 12MB, with a power consumption of 55W, which can provide a certain computing power.
    • - Expandable Memory: It has 4 DDR5 DIMM slots, supporting UDIMM, with a maximum of 32GB per DIMM and a speed of up to 4400MT/s. Only unbuffered ECC DDR5 DIMMs are supported, and users can configure the appropriate memory capacity according to their needs.
    • - Flexible Storage: The server is equipped with 4 3.5 - inch drive bays, which can support SAS/SATA HDDs or SSDs, with a maximum capacity of 48TB. It can also be configured with an additional 2 2.5 - inch drive bays, with a maximum capacity of 63.36TB, and supports software RAID S160, providing flexible storage solutions.

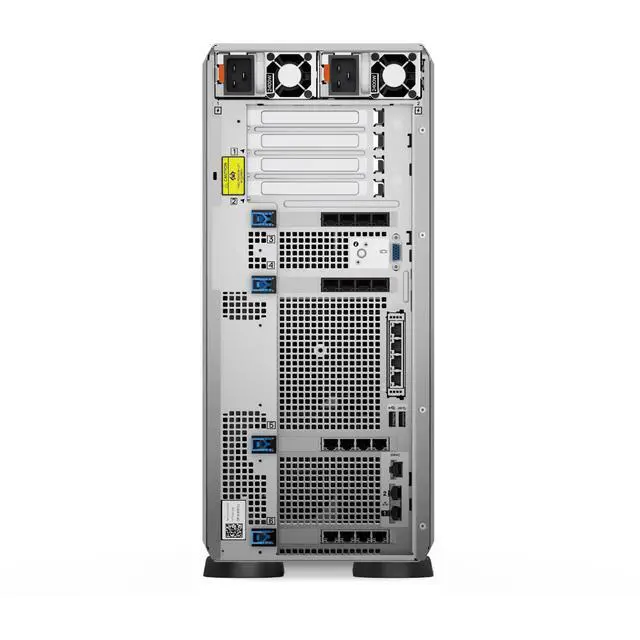

    • - Rich Interfaces: It has a variety of interfaces, including 1 iDRAC Direct (Micro - AB USB) port and 1 USB 3.2 Gen1 port on the front; 3 USB 2.0 ports, 3 USB 3.2 Gen1 ports, 1 dedicated iDRAC Ethernet port, 1 serial port, 1 VGA port, and 2 Ethernet ports on the back, which can meet different connection needs.
    • - Power Supply Configuration: It is equipped with a single 300W copper - level AC PSU
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    - Compact and Space - saving: It adopts a 3U form factor with a chassis volume of less than 17 liters, which is suitable for deployment in various environments, such as warehouses, retail stores, or office desktops, and has good acoustic performance, suitable for office use.


    - Processor Performance: It is equipped with an Intel Xeon E - 2414 processor, which has 4 cores, 4 threads, a main - frequency of 2.6GHz, and a cache of 12MB, with a power consumption of 55W, which can provide a certain computing power.


    - Expandable Memory: It has 4 DDR5 DIMM slots, supporting UDIMM, with a maximum of 32GB per DIMM and a speed of up to 4400MT/s. Only unbuffered ECC DDR5 DIMMs are supported, and users can configure the appropriate memory capacity according to their needs.


    - Flexible Storage: The server is equipped with 4 3.5 - inch drive bays, which can support SAS/SATA HDDs or SSDs, with a maximum capacity of 48TB. It can also be configured with an additional 2 2.5 - inch drive bays, with a maximum capacity of 63.36TB, and supports software RAID S160, providing flexible storage solutions.


    - Rich Interfaces: It has a variety of interfaces, including 1 iDRAC Direct (Micro - AB USB) port and 1 USB 3.2 Gen1 port on the front; 3 USB 2.0 ports, 3 USB 3.2 Gen1 ports, 1 dedicated iDRAC Ethernet port, 1 serial port, 1 VGA port, and 2 Ethernet ports on the back, which can meet different connection needs.


    - Power Supply Configuration: It is equipped with a single 300W copper - level AC power supply, which can provide stable power support for the server.


    - Management and Security: It is equipped with an iDRAC9 management controller, which supports remote monitoring, management, and maintenance. It also has functions such as TPM 2.0, secure boot, and silicon root of trust to ensure the security and integrity of the system.

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
    • Read full details
    • CONTACT

    Return Policies

    Manufacturer Contact Info

    LOADING...

    The Dell T160 is a compact tower server with an Intel Xeon E-2414, four 3.5-inch drive bays, and ECC DDR5 support, making it a good fit for small businesses, branch offices, retail sites, or warehouse deployments that need entry-level on-site infrastructure with flexible storage.

    Recommended For

    • Small offices buying a first on-prem server for shared files, user management, basic business apps, or a light internal database—especially when they want a compact tower that can sit in an office instead of a server room.
    • Branch or remote office deployments that need a short-depth, office-friendly server for local services such as domain control, file sharing, print, backup target, or line-of-business apps without moving to a rack setup.
    • IT admins who want a simple entry tower they can configure themselves with their own ECC RAM and drives, then use for light virtualization, backup, or core SMB infrastructure with Dell remote management features.
    • Businesses replacing an aging pedestal server or repurposed desktop with something quieter, more compact, and built for 24/7 office use, but without stepping up to a larger T360-class system.

    Spec Summary

    AttributeValue
    Best ForSmall offices, retail stores and warehouses needing a compact, quiet tower server for modest 4-core Xeon compute and multi-drive local storage
    Processor And Core CountIntel Xeon E-2414 — 4 cores / 4 threads, 2.6 GHz base frequency, 12 MB cache, 55W power consumption
    Memory Configuration4 DDR5 DIMM slots supporting UDIMM; only unbuffered ECC DDR5 DIMMs supported, up to 32 GB per DIMM and up to 4400MT/s
    Storage And Expansion4 × 3.5-inch drive bays supporting SAS/SATA HDDs or SSDs (listed max 48TB); optional additional 2 × 2.5-inch bays (listed max 63.36TB); supports software RAID S160
    I/O And Remote ManagementFront: iDRAC Direct (Micro-AB USB) and 1 × USB 3.2 Gen1; Rear: 3 × USB 2.0, 3 × USB 3.2 Gen1, dedicated iDRAC Ethernet, serial, VGA, and 2 Ethernet ports — includes dedicated iDRAC for out-of-band management
    Power And CoolingSingle 300W copper-level AC power supply (single-PSU configuration)
    Chassis And AcousticsCompact 3U-form-factor tower with chassis volume <17 liters; described as space-saving with good acoustic performance suitable for office use
    Default ConfigurationShips without memory and without disks by default; configured with a single power supply
    Model IdentifiersDell T160 (E2414 option) — 4 × 3.5-inch drive bays
