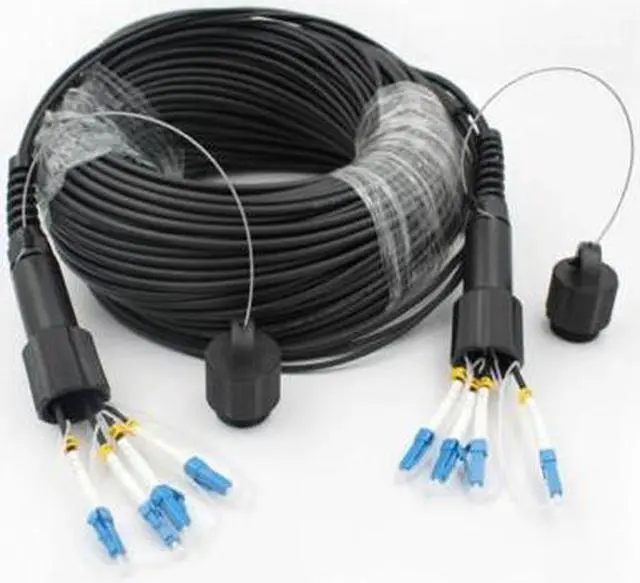

150M LC-LC SM 4 Strand Armored Field TPU Optic Patch Cable Waterproof Head - In Stock
- Connector Type LC
- Polish Type UPC to UPC
- Fiber Mode OS2 9/125m
- Wavelength 1310/1550nm
- Fiber Count 4 Fibers
- Fiber Grade G.657.A1
- Min. Dynamic Bend Radius 20D (mm)
- Min. Static Bend Radius 10D (mm)
- Insertion Loss (dB) LC0.3
- Return Loss (dB) UPC50, APC60
- Attenuation at 1310nm 0.36 dB/km
- Attenuation at 1300nm 1.0 dB/km
- Crush Resistance (N/100mm)
- 1000 (Long Term)/3000 (Short Term)
- Impact Resistance 200 Impacts
- Flex Resistance 2000 Cycles
- Tensile Load (N) 200 (Long Term)/600 (Short Term)
- Breakout Diameter 3.0mm (1~4 Fibers)
- 2.5mm (6~24 Fibers)
- Trunk Diameter 3.0mm-7.0mm
- Cable Jacket TPU (Thermoplastic Polyurethane)
- Jacket Color Black
- Operating Temperature -40~85°C
- Storage Temperature -40~85°C
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
OS2 Singlemode Military-Grade Tactical Fiber Optic Patch Cable 1-24 Fibers
Armored tactical cable features strong tensile strength, strong pressure resistance and good flexibility characteristics. Besides, it is bending resistant, oil resistant, wear resistant and flame retardant. Therefore, armored tactical cable is ideal for both indoor and outdoor applications, such as rapid wiring/repeated retrieval in military field or connecting the networks of two buildings through the use of an underground conduit or direct buried.
Product Specification
Connector Type LC Polish Type UPC to UPC
Fiber Mode OS2 9/125m Wavelength 1310/1550nm
Fiber Count 4 Fibers Fiber Grade G. 657. A1
Min. Dynamic Bend Radius 20D (mm) Min. Static Bend Radius 10D (mm)
Insertion Loss (dB) LC 0.3 Return Loss (dB) UPC50, APC60
Attenuation at 1310nm 0.36 dB/km Attenuation at 1300nm 1.0 dB/km
Crush Resistance (N/100mm) 1000 (Long Term) /3000 (Short Term) Impact Resistance 200 Impacts
Flex Resistance 2000 Cycles Tensile Load (N) 200 (Long Term) /600 (Short Term)
Breakout Diameter 3.0 mm (1~4 Fibers)
2.5 mm (6~24 Fibers) Trunk Diameter 3.0 mm- 7.0 mm
Cable Jacket TPU (Thermoplastic Polyurethane) Jacket Color Black
Operating Temperature -40~85°C Storage Temperature -40~85°C
Armored tactical cable features strong tensile strength, strong pressure resistance and good flexibility characteristics. Besides, it is bending resistant, oil resistant, wear resistant and flame retardant. Therefore, armored tactical cable is ideal for both indoor and outdoor applications, such as rapid wiring/repeated retrieval in military field or connecting the networks of two buildings through the use of an underground conduit or direct buried.
Product Specification
Connector Type LC Polish Type UPC to UPC
Fiber Mode OS2 9/125m Wavelength 1310/1550nm
Fiber Count 4 Fibers Fiber Grade G. 657. A1
Min. Dynamic Bend Radius 20D (mm) Min. Static Bend Radius 10D (mm)
Insertion Loss (dB) LC 0.3 Return Loss (dB) UPC50, APC60
Attenuation at 1310nm 0.36 dB/km Attenuation at 1300nm 1.0 dB/km
Crush Resistance (N/100mm) 1000 (Long Term) /3000 (Short Term) Impact Resistance 200 Impacts
Flex Resistance 2000 Cycles Tensile Load (N) 200 (Long Term) /600 (Short Term)
Breakout Diameter 3.0 mm (1~4 Fibers)
2.5 mm (6~24 Fibers) Trunk Diameter 3.0 mm- 7.0 mm
Cable Jacket TPU (Thermoplastic Polyurethane) Jacket Color Black
Operating Temperature -40~85°C Storage Temperature -40~85°C
