    27 inch 10 Points Infrared Touch Screen Overlay, Multipoint IR touch Frame , USB Free Driver, Easy Fix and Install, for Digital Signage Whiteboard Kiosks Interactive Application

    • 27"
    • 82"
    • 80"
    • 85"
    • 98"
    • 1- 27 inch 10 points interactive multi points touch screen overlay frame, not including glass;
    • 2- Anti-light interference,no drift even in the sunlight. Design for Kiosks, Digital Signage, Whiteboard, Exhibition and so on. Warranty is 3 years;
    • 3- Design for standard 27 inch monitor, you can check drawing on the left. S is the diagonal length of display active area;
    • 4- This item just be only touch frame for sale, it be with Installation Manual in package and guide you how to fix it. Installation is very simple and very easy;
    • 5- This Item is Free driver for Windows,Android and Linux. Support Mac iOS with HID driver, if you use this item on Mac iOS, please contact us and get the driver. About Android TV box, please inquiry TV box supplier if the box be with touch function before you order this item.
    +
    +
    Overview
    Specs
    Reviews

    BUSINESS FOCUS

    We are the professional manufacturer and supplier of touch screen product whose with over ten years experience, including Infrared touch overlay, P-cap touch panel, touch monitor,touch AIO PC, touch kiosks. Industry sector cover Kiosks, Digital Signage, Interactive display and Whiteboard and so on. We can provide ODM/OEM service.

    DETAIL SPEC

    Product name: 27 inch interactive IR infrared touch scree frame overlay panel

    Detection Method: Infrared rays

    Detail size data

    Display area: L1=602.3mm, W1=336.8mm

    Outside area: L3=640.3mm,W3=374.8mm

    Frame thickness: 9.4mm

    Ratio: 16:9

    Touch Points: 10 points

    Object Touch Size: = Ø5mm

    Touch Activation Force: Non Minimum activation force

    Touch Durability: Over 60 millions for single touch

    Touch Resolution: 32768*32768

    Position Accuracy: 2mm

    Fault Tolerance: Workable even 75% sensors are damaged

    Frames per Second: Up to 450 fps

    Touch Response Time: 8ms

    Draw Response Time: 8ms

    Altitude: 3,000m

    Light Transmission: 100% without glass

    Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Android

    Need to install the HID driver in Mac OS(Does not support Smart TV Android system, Raspberry Pi)

    (Does not support Smart TV Android system, Raspberry Pi)

    Second-development Support: free SDK, support C/C++, C#, Java etc.

    ElECTRICAL

    Operating Voltage: DC 4.5V ~ DC 5.5V

    Power Supply: Single USB Connection

    Power Consumption: 1.0W (200mA at DC 5V)

    ENVIRONMENT

    ?Operating Temperature: -20°C~70°C

    Storage Temperature: -30°C~80°C

    Operating Humidity: 10%~90%RH(Non-condensing)

    Storage Humidity: 0~95%RH

    Certification: FCC,CE,ROHS

    Warranty: 3 year

    DeYoWo Logo

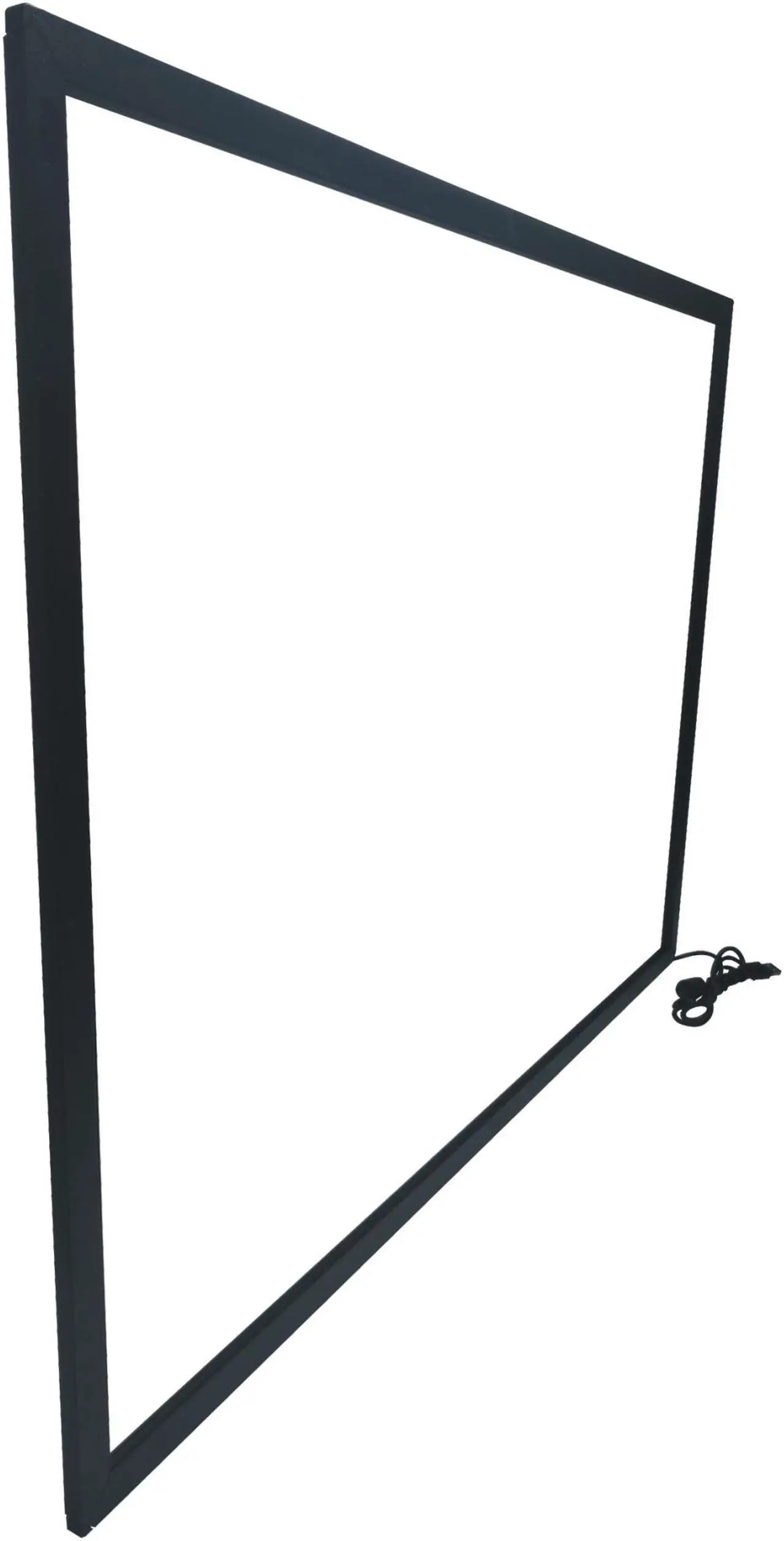

    27 inch IR touch frame
    Product description

    1-This item is Deyowo 27 inch 10 points interactive infrared touch screen frame overlay, design and use for interactive board, touch LCD monitor, touch display TV. Touch Kiosks, Touch Digital Signage, Whiteboard, Exhibition and etc.

    2-The out frame of Infrared Touch using alluminum material, product is strong and durabel, not including glass.

    3-The infrared touch screen is anti-sunshine, there are no light interference, no drift even if it be uesed under the sunshine directly.

    4-This item just only matching 27 inch display or monitor, we showed the detail dimension drawing on webpage, you can check if your display or monitor can match this item.

    5-This item is only touch frame for sale which be without glass, the installation is very simple and very easy, we will provide Installation Manual.

    6-The infrared touch screen is Free driver for Windows, Android and Linux. Support Mac iOS with HID driver, you can sent E-mail to us on Amazon and get Mac driver. Don't support Android TV box

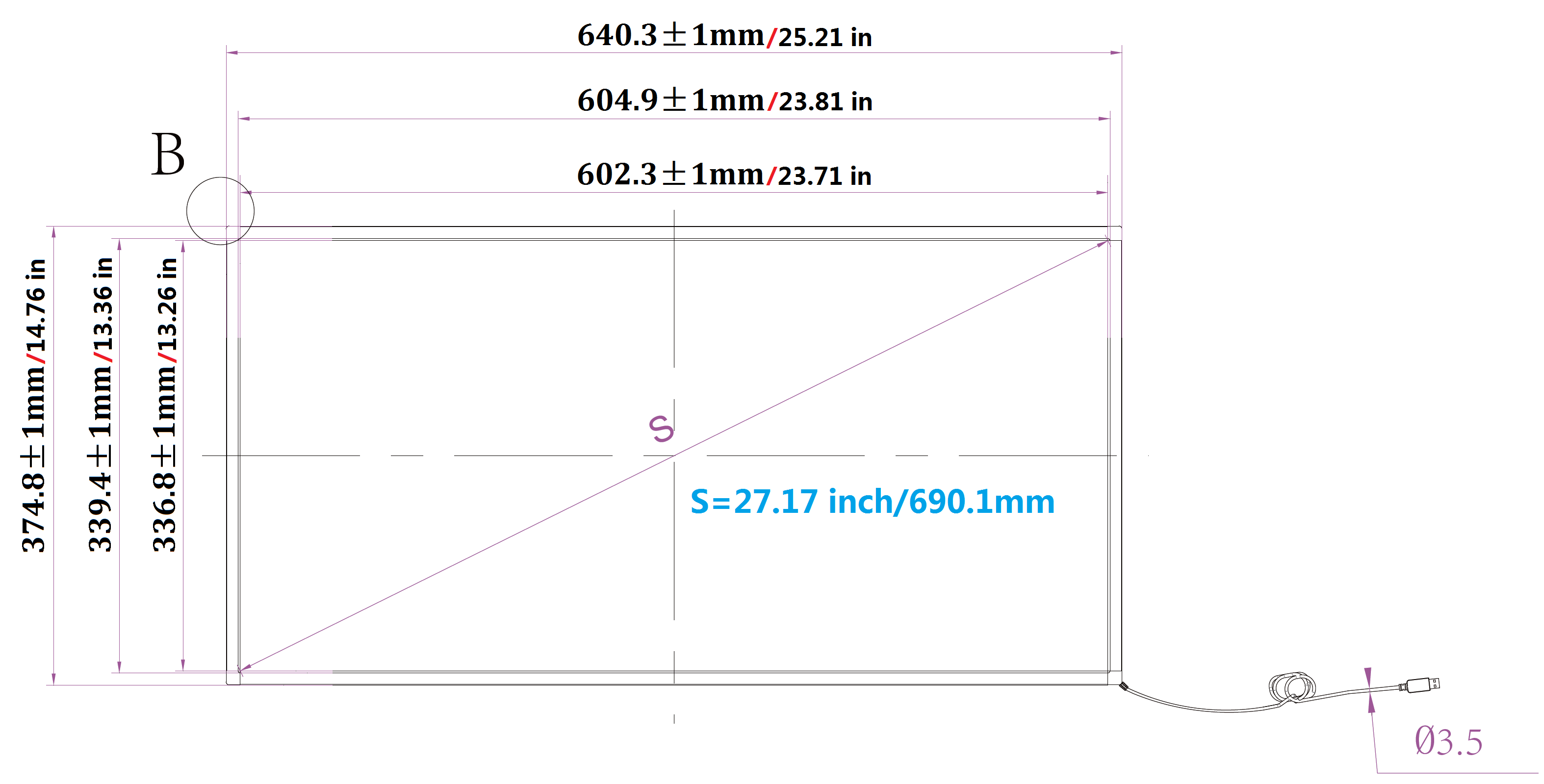

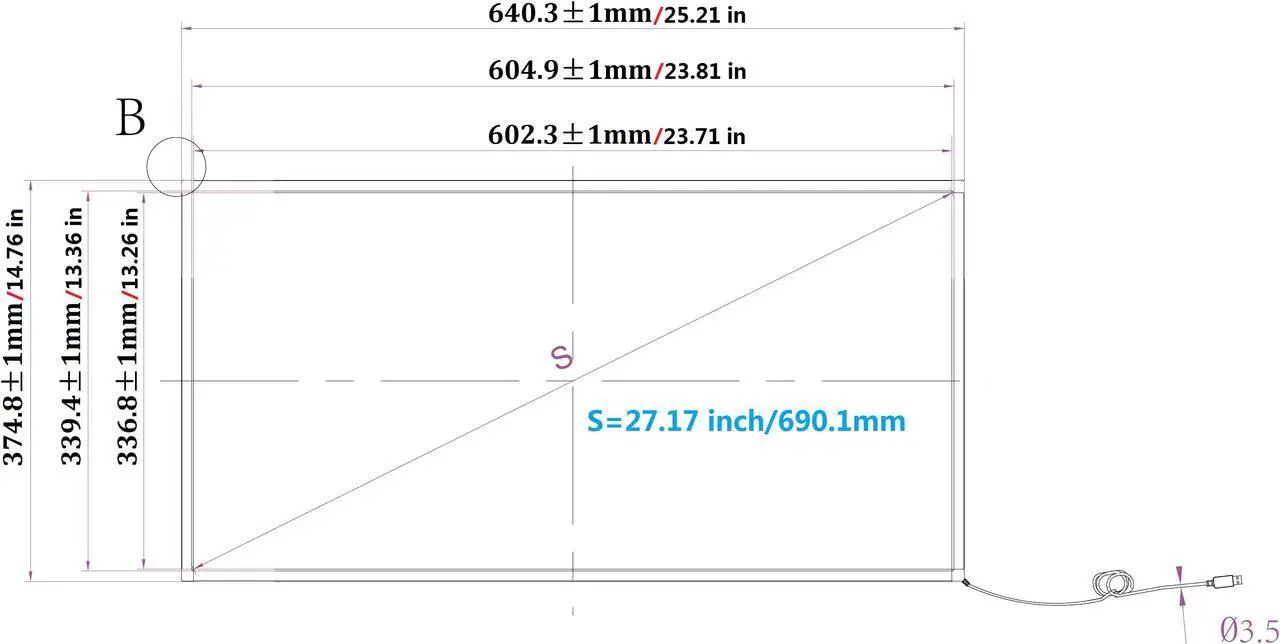

    drawing for 27 inch IR touch frame
    Product drawing

    1-This item just only matching 27 inch display or monitor, we showed the detail dimension drawing on webpage, you can check if your display or monitor can match this item.

    2-This item is only touch frame for sale which be without glass, the installation is very simple and very easy, we will provide Installation Manual.

    Product advantage
    10 points touch

    Support 10 points interactive touch, design and use for interactive board, touch LCD monitor, touch display TV. Touch Kiosks, Touch Digital Signage, Whiteboard, Exhibition and etc.

    Anti light interference

    Anti light interference function, it can run well even if it is under sunshine.

    OS support

    1-Driver free for Windows7, Windows8, Windows10, Native Linux and Android OS.

    2-Need to install the HID driver on Mac OS

    3-Does not support Smart TV Android system, Raspberry Pi

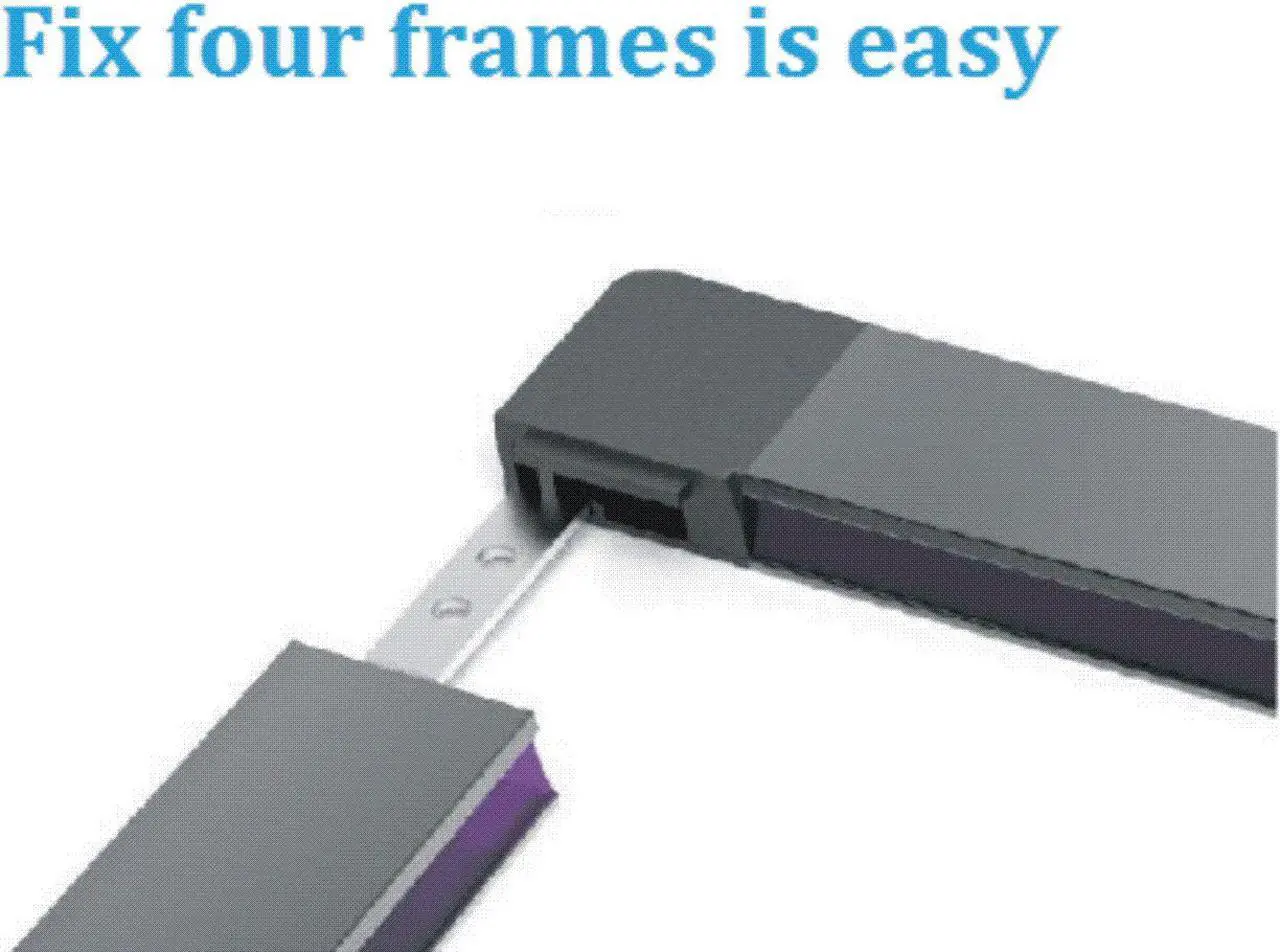

    Interface port connecting

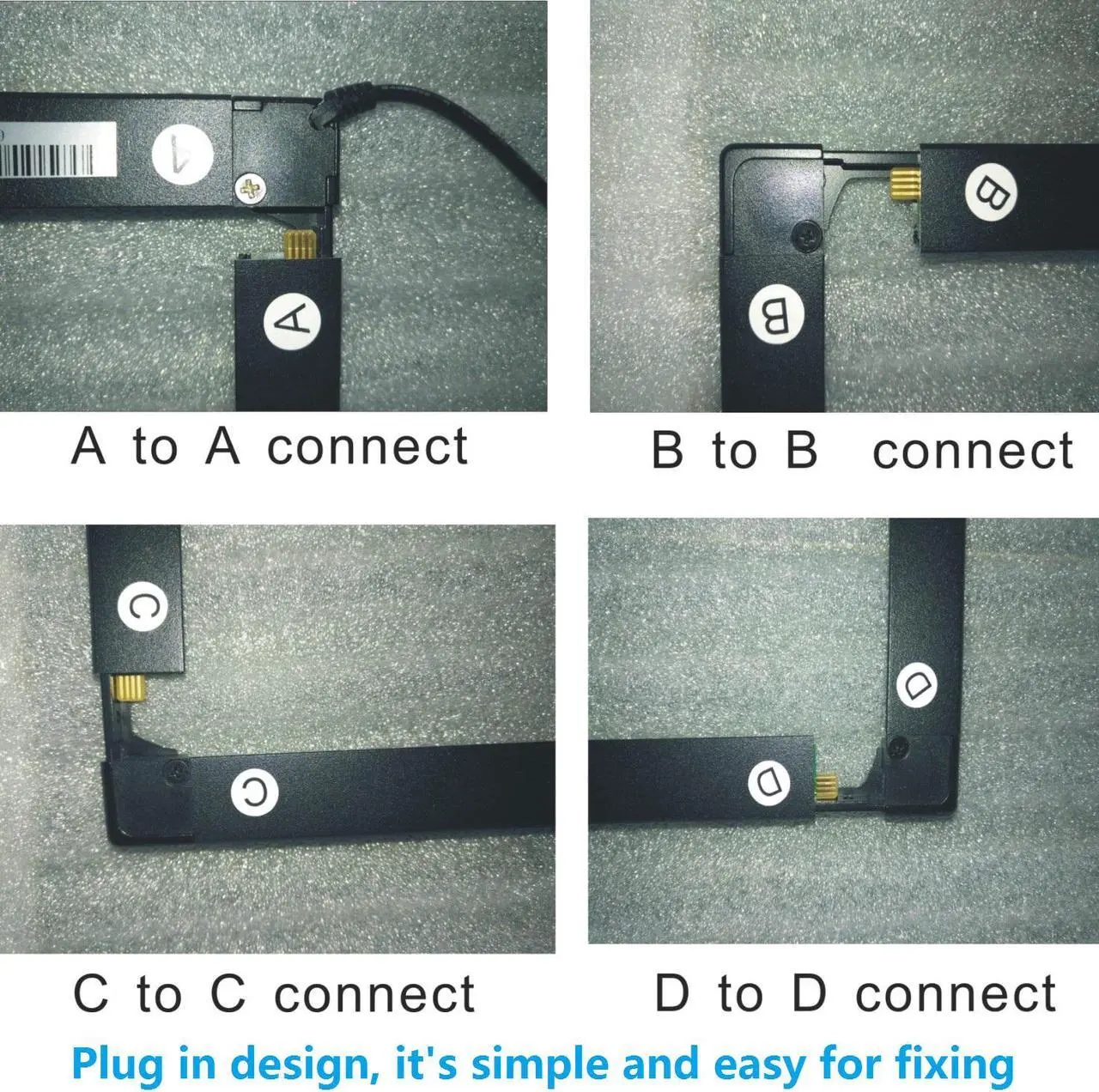

    Slot design for four corner interface ports connecting, A to A, B to B, C to C and D to D. Easy and simple

    Detail specification
    Product name interactive IR infrared touch scree frame overlay
    Detection Method Infrared rays
    Touch Activation Force Non Minimum activation force
    Object Touch Size min Ø5mm
    Touch Durability Over 60 millions for single touch
    Touch Resolution 32768*32768
    Position Accuracy 2mm
    Fault Tolerance Workable even 75% sensors are damaged
    Frames per Second Up to 450 fps
    Touch Response Time 8ms
    Draw Response Time 8ms
    Altitude 3000m
    Light Transmission 100% without glass
