Deyowo 40 Inch 6 Points Interactive Infrared IR Touch Screen Overlay Frame Free Driver, Design for Touch TV, Touch Monitor, Interactive White Board, Touch Kiosks and Digital Signage…
- 1-6 POINTS TOUCH: This item is 40 inch 6 points interactive infrared touch screen frame, not including glass, Design for for 40 inch LCD display.

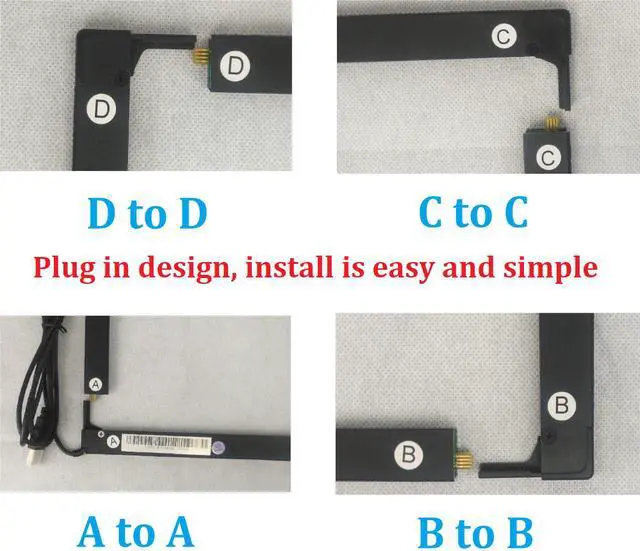

- 2-EASY INSTALLATION: Our IR touch frames is Plug in design, the installation job is very simple and easy. You can read Installation Guide Manual or watch installation video online, you will do it well. If the touch positioning is not accurate after installation, we can provide the calibration software.
- 3-FREE DRIVER: You don't need to install drivers for this Item on Windows,Android and Linux, meanwhile it support Mac iOS with HID driver. If you use this item on Mac iOS, please contact us and get the driver.If use this item on Android TV box, please inquiry TV box supplier if the box be with touch function before you order this item!
- 4-LONG LIFE: The out frame material is full aluminum, the infraed light and PCBA is reliable quality and stable performance. Warranty is 3 years.
- 5-APPLICATION: Design for Touch Screen Monitor, Touch All in one
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
BUSINESS FOCUS
We are the professional manufacturer and supplier of touch screen product whose with over ten years experience, including Infrared touch overlay, P-cap touch panel, touch monitor,touch AIO PC, touch kiosks. Industry sector cover Kiosks, Digital Signage, Interactive display and Whiteboard and so on. We can provide ODM/OEM service.
DETAIL SPEC
Product name: 40 inch interactive IR infrared touch scree frame overlay panel
Detection Method: Infrared rays

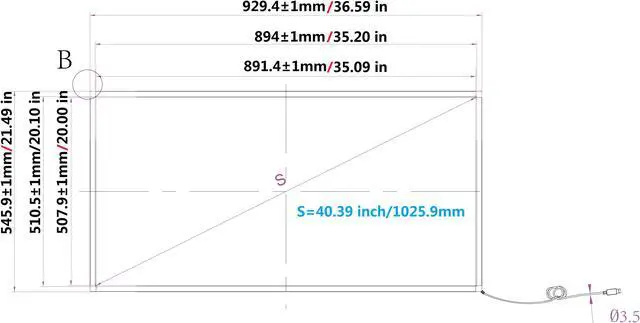

Detail size data
Display area: L1=35.09in, W1=20.00in
Outside area: L2=36.59in,W2=21.49in
?Ratio: 16:9
?Touch Points: 6 points
?Object Touch Size: = Ø5mm
?Touch Activation Force: Non Minimum activation force
?Touch Durability: Over 60 millions for single touch
?Touch Resolution: 32768*32768
?Position Accuracy: 2mm
?Fault Tolerance: Workable even 75% sensors are damaged
?Frames per Second: Up to 450 fps
?Touch Response Time: 8ms
?Draw Response Time: 8ms
?Altitude: 3,000m
?Light Transmission: 100% without glass
?Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Android
Need to install the HID driver in Mac OS(Does not support Smart TV Android system, Raspberry Pi)
(Does not support Smart TV Android system, Raspberry Pi)
?Second-development Support: free SDK, support C/C++, C#, Java etc.
ElECTRICAL
?Operating Voltage: DC 4.5V ~ DC 5.5V
?Power Supply: Single USB Connection
?Power Consumption: 1.0W (200mA at DC 5V)
ENVIRONMENT
?Operating Temperature: -20°C~70°C
?Storage Temperature: -30°C~80°C
?Operating Humidity: 10%~90%RH(Non-condensing)
?Storage Humidity: 0~95%RH
?Certification: FCC,CE,ROHS
?Warranty: 3 year
