Description:
Waterproof design
Includes 4 LED lights and supports night vision within 5 meters
CCD 3030 imaging sensor
Supports NTSC video systems
High-definition and wide viewing angle

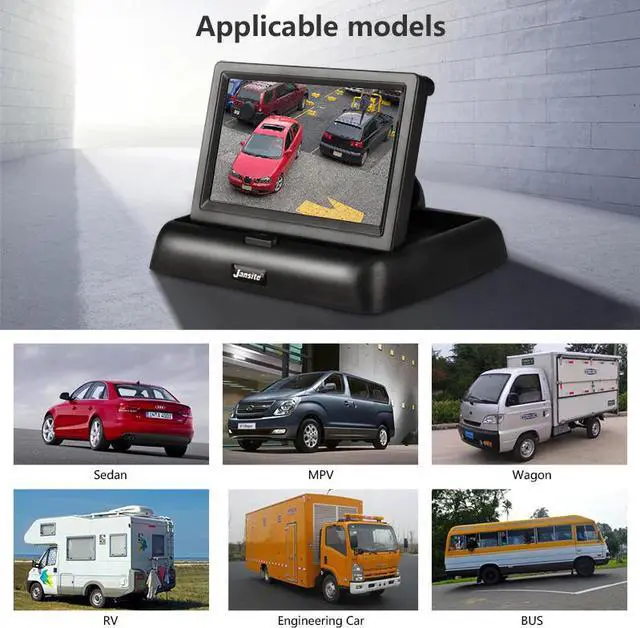

Applicable to variety of vehicles
Specifications:
Rear View Monitor
Display Size: 4:3
Resolution: 480 x 272
Color Model: RGB
Video System: PAL/NTSC
Power Supply: DC 12V
Power Consumption: 2W
Backup camera:
Effective pixels: 580X540
Image sensors: PC7070
Lens angle (Deg.): 170 degree
Minimum illumination: 1.5Lux / F1.2
S/N ratio: >48dB
Video output: RCA, 1.0VP - P. 75ohm
Working voltage: DC12V
Waterproof: IP6
Connectivity : Wire
Video format: PAL/NTSC
Working Power (DCV): 12V
Current consumption: 90mA Max
Placement Position
Directly placed in the car's central control position, small size does not occupy the place, do not block the line of sight and drive safely.
Installation Introduction

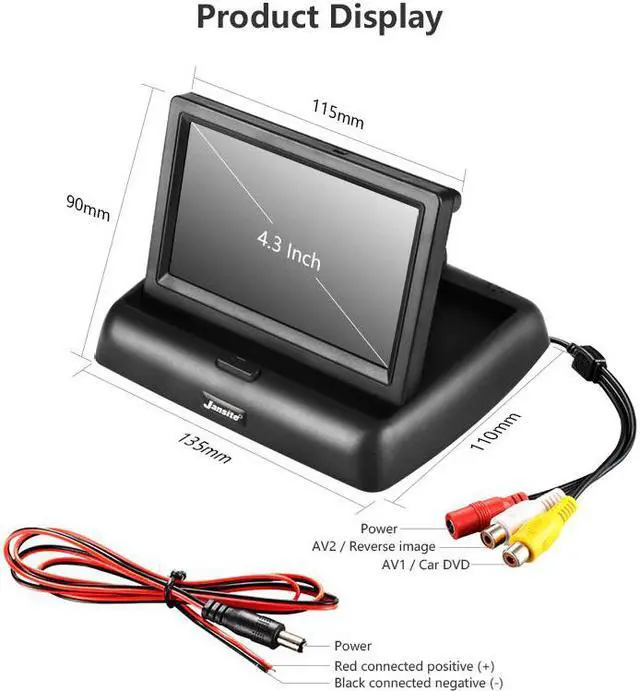

A is the rear camera, the power supply is connected to the positive and negative poles of the reverse lamp, the red is the positive pole, the black is the negative pole, B is the display, the red is connected to the ACC positive pole, and the black is connected to the ACC negative pole.
Package includes:
1 x 4.3 inch Monitor
1 x Video power cable
1 x Rear Camera(Optional)
