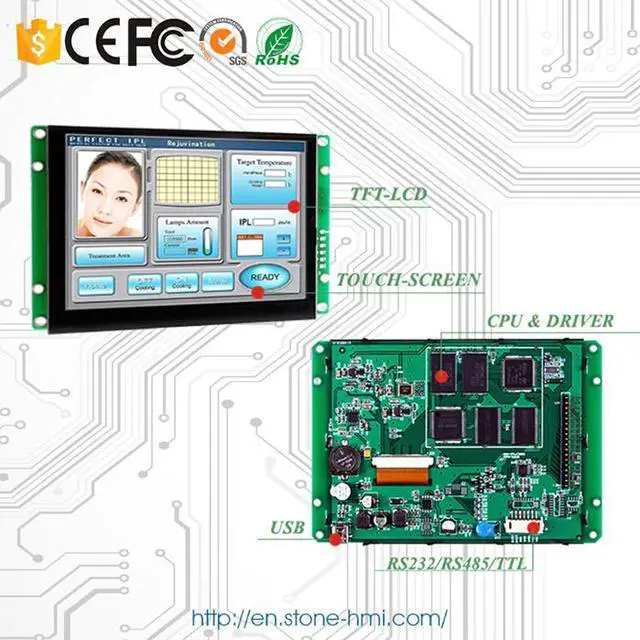

Screen 5 inch TFT LCD Touch Monitor with Serial Interface for Equipment Control Panel

Screen 5 inch TFT LCD Touch Monitor with Serial Interface for Equipment Control Panel

Product Parameters

Physical Parameter

Model

STVC050WT-01

Size (Inch)

5.0 inch

Resolution

480×RGB×272

Color

65536 colors (16 bit)

Viewing Area

110.9mm× 62.8mm

Pixel Spacing

0.1905mm×0.0635mm (H×V)

Overall Dimension

140mm×80.9mm×13.9mm(N)/15.2mm(T)

Net Weight

195g(N)/200g(T)

TFT Panel

A Class Industry Panel

Touch Screen

Industry Level 4 wire resistance Or without touch screen is optional.

Backlight Parameter

Backlight Type

LED

Brightness

350 cd/m2(Brightness can be adjustable in 100 levels.)

Contrast

500:1

Backlight life

20,000 hours

Viewing Angle

70°/ 70°/ 50°/ 70°(L/R/U/D)

Working Temperature

20~ +70

Working Humidity

55°C, 85%

Storage Temperature

30°C ~ +80°C

Screen Mode

Digital

Performance Parameter

CPU

CortexM4

LCD Controller

CPLD EPM240

Refresh Rate

200MHz

Picture Switching Speed

19 ms/frame (53 images/s)

Flash Memory

Standard 128MB, Extension 1GB

Memory Amount for picture

According to the capability of the image, Suggest "JPG" format.

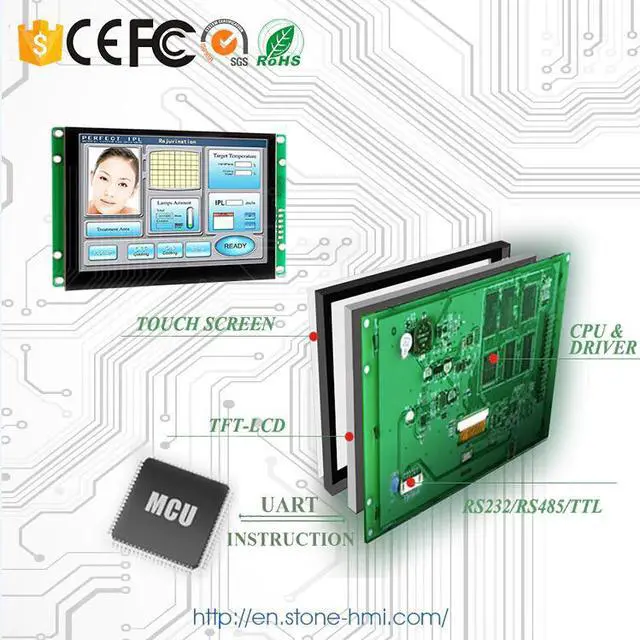

Interface

RS232/ RS485/ TTL /USB Interface

Image downloading

USB2.0 (12Mbps) & U storage Disk downloading

Voltage Range

DC6.0V ~ 35V (typical value: 12V)

Power

1.3 W

MTBF
