4.3 Inch TFT LCD Car Rear View Mirror Monitor for Backup Camera CCD Video Auto Parking Assistance Reversing Car-styling

4.3 Inch TFT LCD Car Rear View Mirror Monitor for Backup Camera CCD Video Auto Parking Assistance Reversing Car-styling

Specifications:

Screen Size:4.3inch

Display Scree:TFT-LED

Display Resolution: 480 x RGB x 272pixels

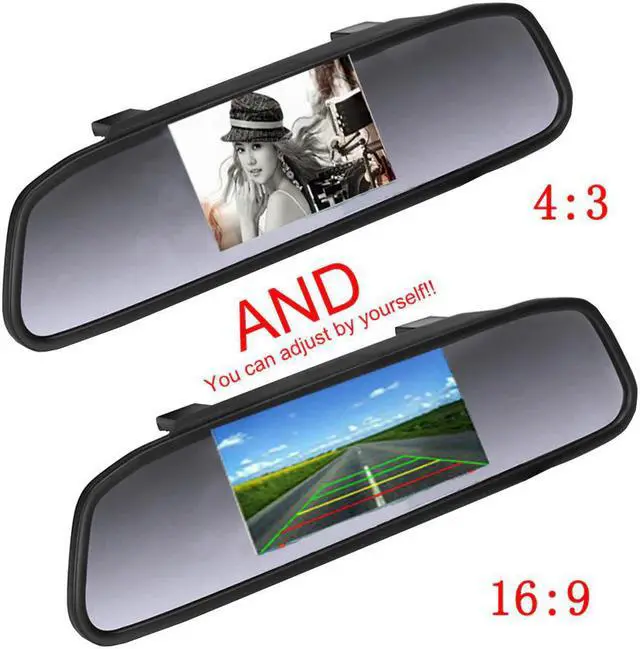

Aspect Ratio:16:9

Power Consumption: 2W

Power Supply:DC 12V

Video Input: AV1 to VCD/DVD(defaulted) ,AV2 to backup camera,AV signal auto detect power on/off

Signal System:PAL/AUTO/NTSC

Brightness :250cd/m2

Contrast Ratio: 300:1

Car rear view camera:

With Guide Line

Image sensor: Color CCD

Image sensor: PC7070

Effective pixels: 720*480 pixels

Resolution: 420 TV lines

Lens Angle: 170°

TV System: NTSC/PAL (We will send NTSC or PAL according to your country)

White balance: Auto

Waterproof: IP67

Power supply: DC 12V

Minimum illumination 0.1lux

Video output: RCA connector, 1.0Vp-p, 75ohm

Current Consumption:60mA

Operating Temperature: -20°C~ 90°C, RH95% Max.

Storage temperature: -40°C ~ 80°C, RH90% Max.

Video cable length: 6 meter (19.7 feet)

Power supply cable length: 1.5m (4.9 feet)

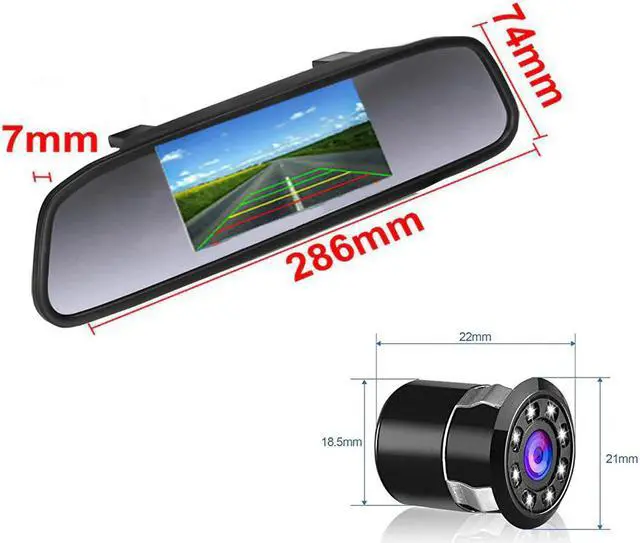

Drill Hole Diameter: 18.5mm

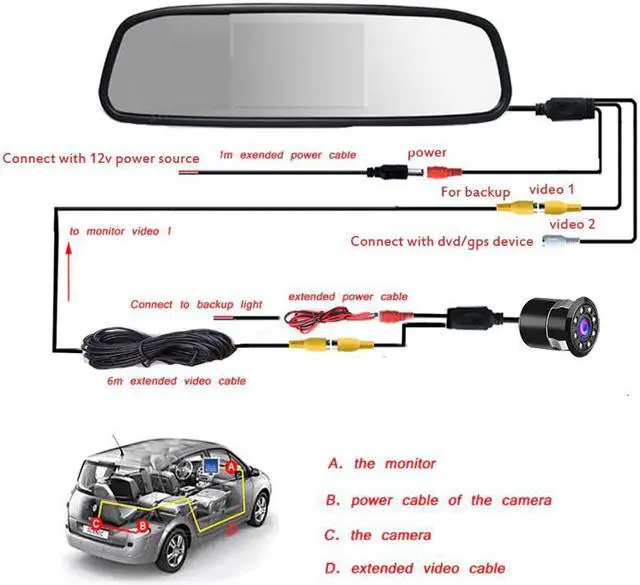

Installation:

1.Use the hole driller to mount the camera at the back of the car (on the license plate back window or other suitable place)

2.Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.

3.Connect the video cable of the camera to the extension cord.

4.Connect the extension cable to the car monitor.

5.You will see the images when your car is in reverse shift.
