mobili Monitor con Telecamera Per la Retromarcia 4.3 pollici TFT LCD Display Dello Schermo DC 12 V-24 V

Features

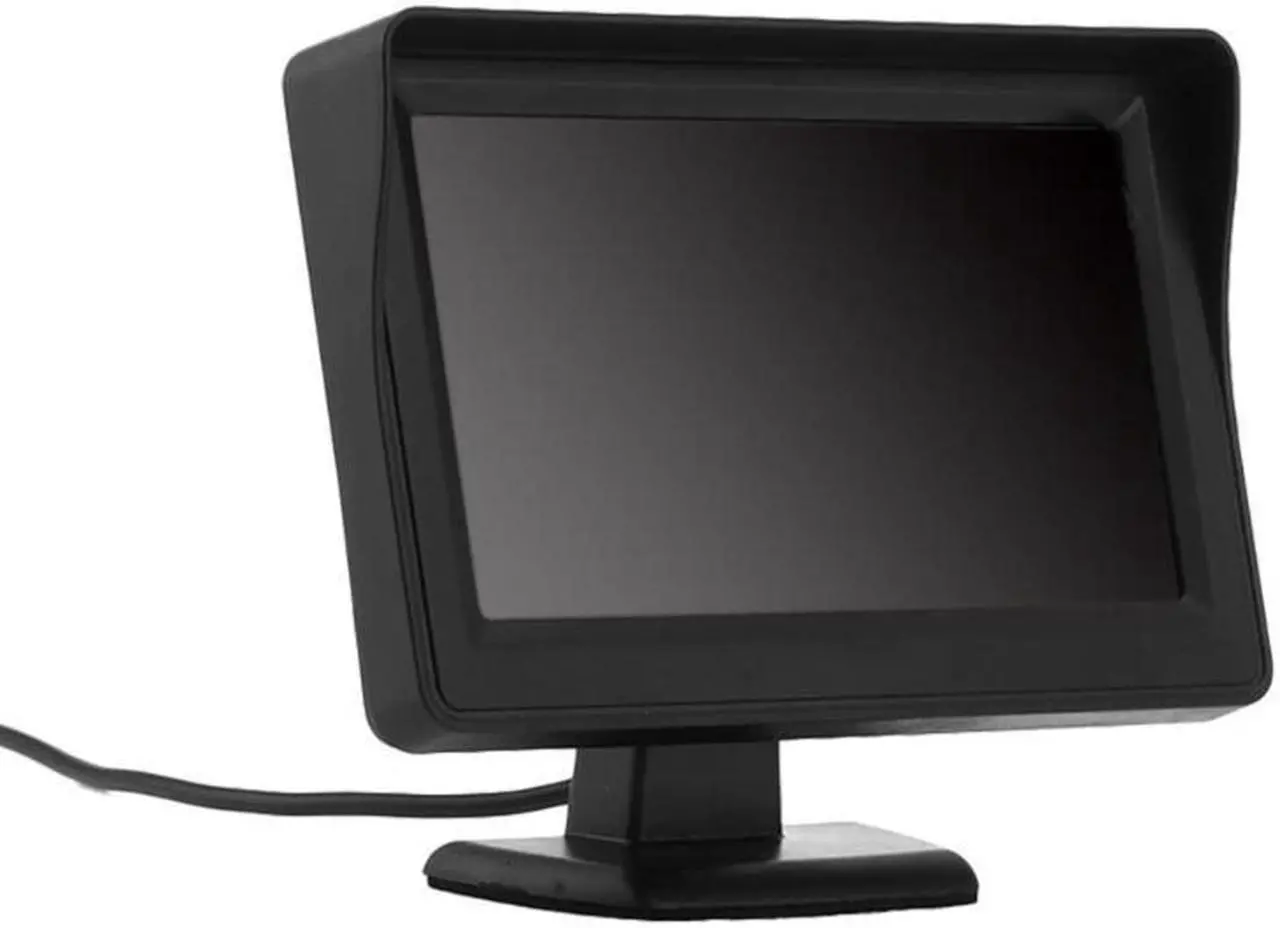

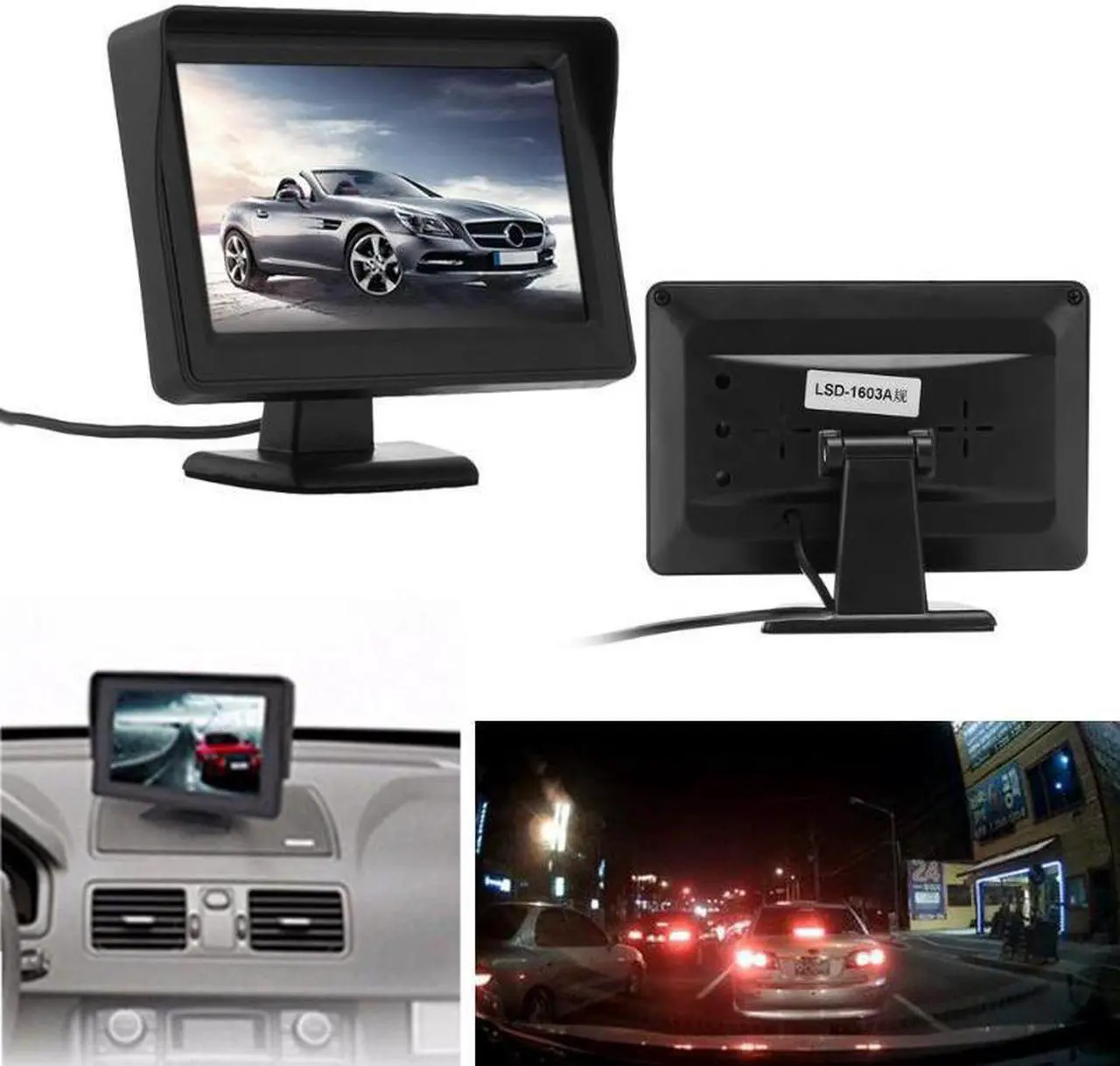

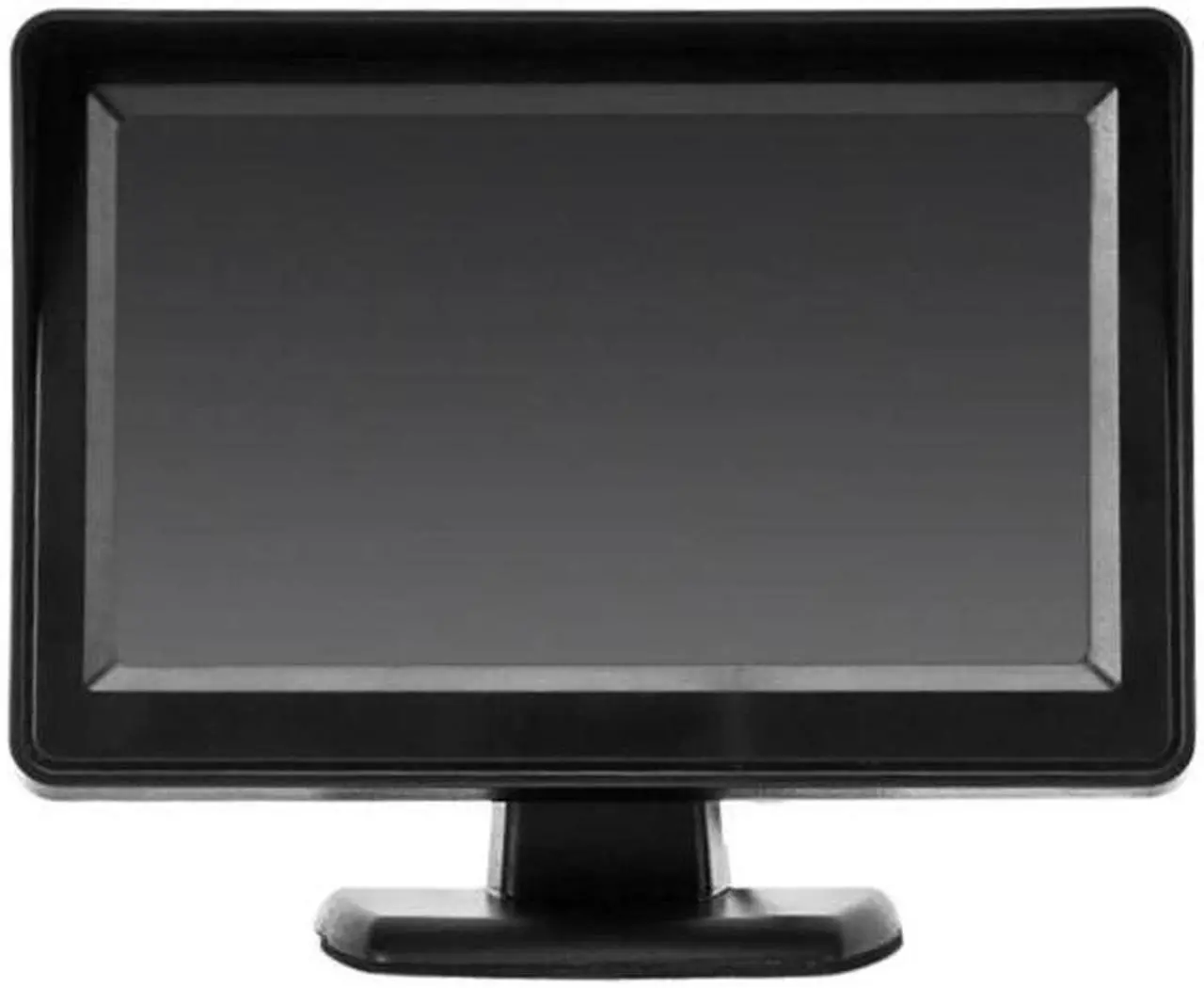

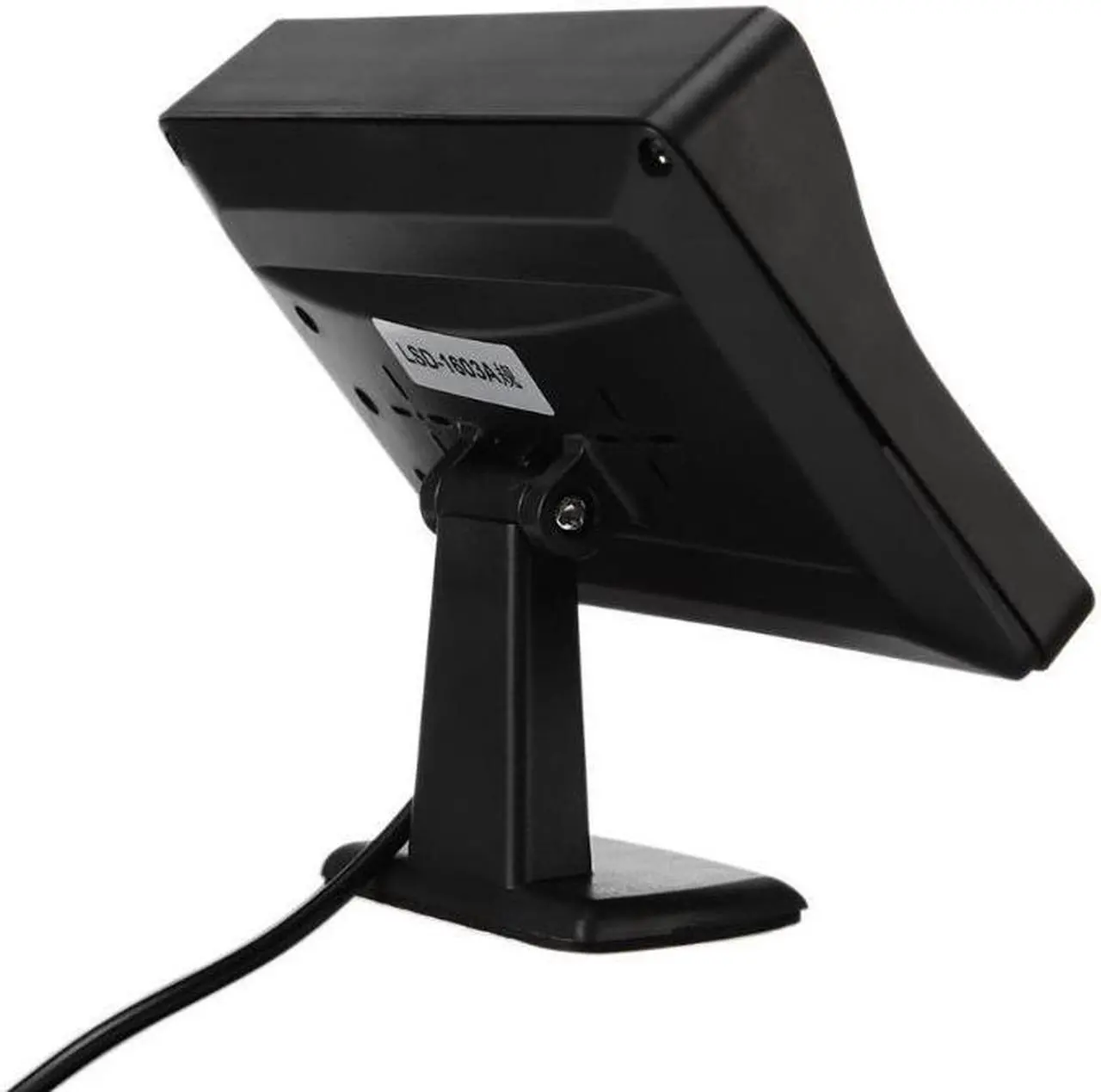

Monitor

1. 4.3-inch 16: 9

2. Resolution: 480 * 272

3. Power supply: DC 12V-24V

4. Visual range: 96 * 54mm

5. Power consumption: 2W

6. Working temperature: -15°C ~ + 50°C

7. Storage Temperature: -20°C ~ + 70°C

8. Interface:  AV video interface, a standard power connector road

9.Black screen when no signal

10. Product Dimensions: 11.5CM * 7.5CM * 0.8CM(Length * width *thick)

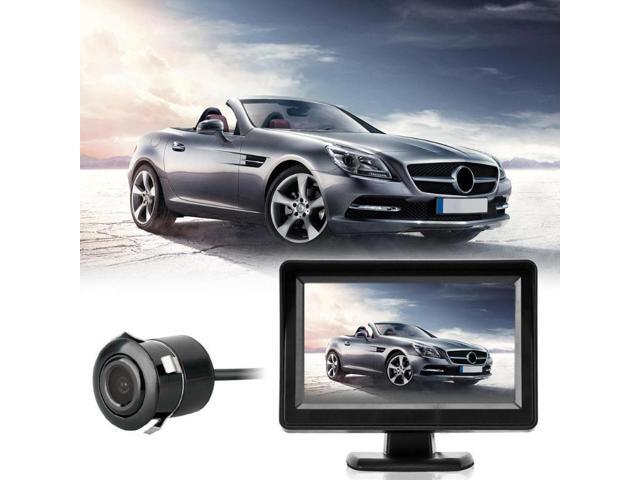

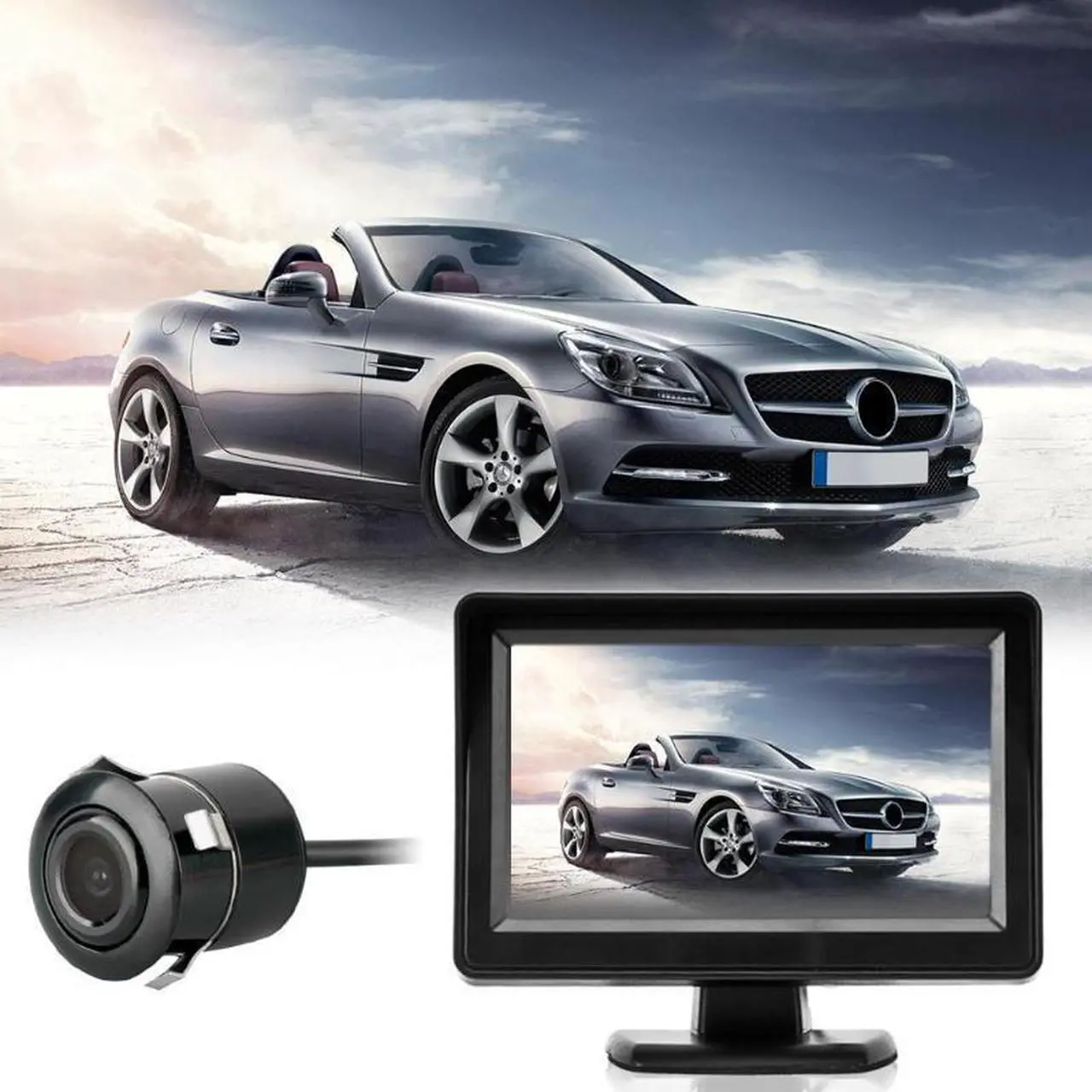

Car Camera

1.Image Sensor:7070

2.Video System:PAL/NTSC

3.Resolution:PAL:682 H*504 NSTC: 648 H*488 V

4.Horizontal Resolution:480TVL

5.Electronic Shutter:1s-1/10000s

6.SNR:>48dB

7.Min Illumination:0.01LUX

8.Video Output:1.0Vp-p/ 75

9.View Angle:120°

10.Working Voltage:DC9V-12V±0.5V

11.Waterproof Rate:IP67

Note:

1.Connect the power cord must distinguish between positive and negative (red +, black -) If you pick the wrong, cartridge fuse blows immediately. Please replace the same parameters of cartridge fuse.

2.Two main components both are LCD screen,the surface is glass structure, please note that anti-extrusion.

3.Installation should be solid and reliable, to prevent the situation of falling when the car is brakeing or running and causing personal and equipment accidents.

4.12v-24V DC contact should be connected to the main power supply in order to prevent excessive voltage affecting the normal use of the machine.

Kindly reminded

the monitor can be connected to a voltage range between 12-36V,but camera could only be connected to 12V,if you wiring with voltage over 12V,the camera may get burnt.Thanks for understanding.

1* Digital Car Rear View Monitor

1* Power Cable
