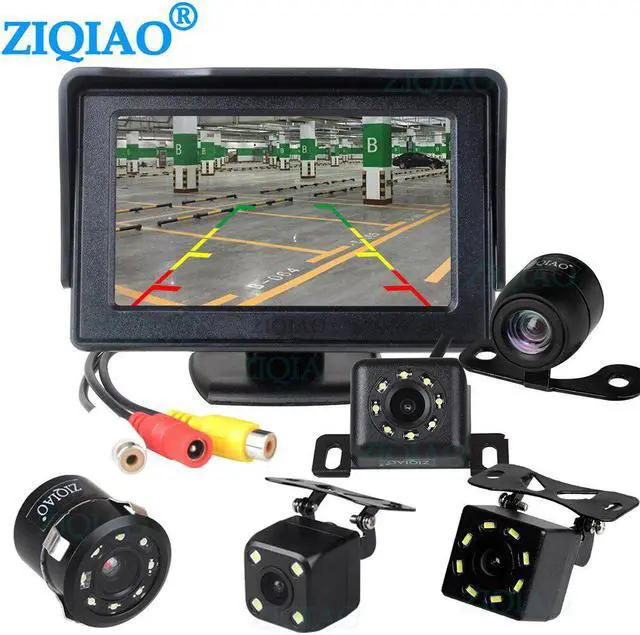

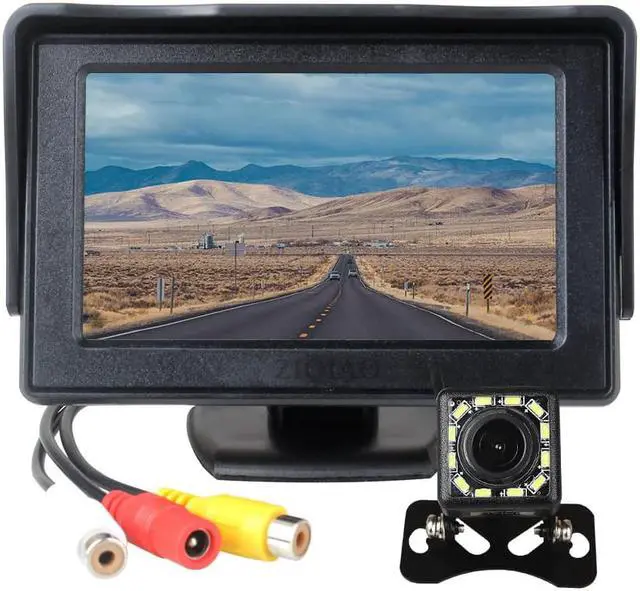

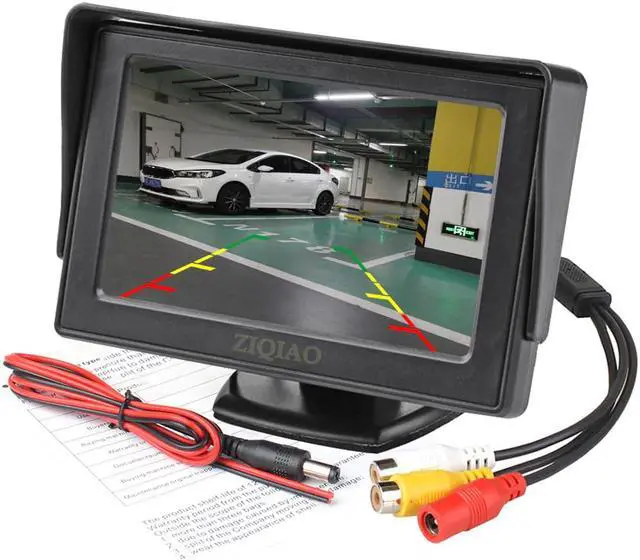

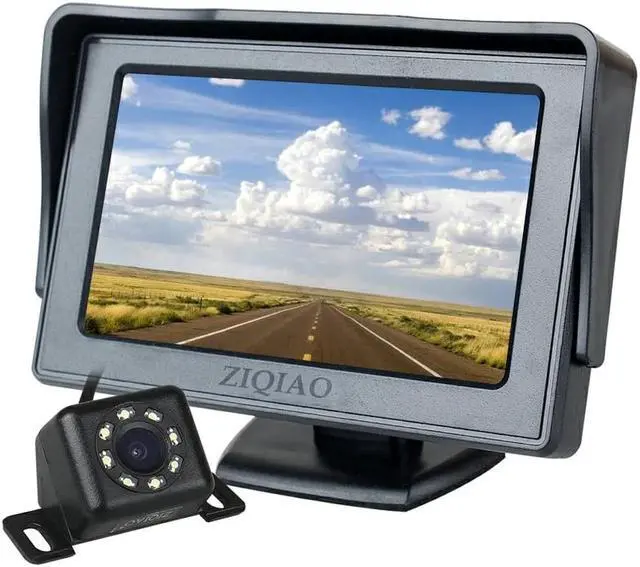

Monitor Rear View Monitor 4.3" TFT LCD Screen Rearview Reverse Parking Monitor System with Rear View Camera Optional

Monitor:

Features:-4.3 inch TFT LCD monitor

Supported language:Chinese, English, Korean, Japanese, Russian, Italian, French, Portuguese, German, Spanish

With 2 AV inputs:

a. AV1 (yellow) is displayed by default, it can be connected to DVD, VCR and other video equipment; AV2 (white)) is connected to the rear view camera of the vehicle.

b. When reversing, the monitor will automatically switch to the rear view image.

The aspect ratio of the screen is 16:9/4:3, adjustable

No audio input or output.

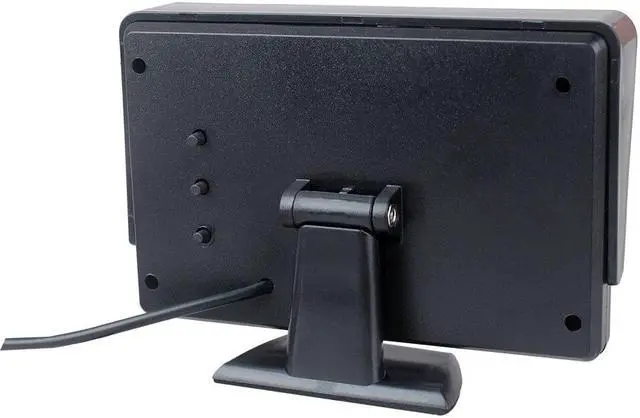

The buttons on the back of the monitor can adjust brightness, contrast, chroma, mode and language.

No audio input or output.

No Audio input or output.

The screen is black screen when no video signal input.

The monitor base is fixed on the meter with 3M glue, easy to install.

Specifications:- Video:AV1/AV2(Reversing priority)

Video format: NTSC/PAL

Screen size: 4.3 inch

Screen aspect ratio16:9/4:3

Resolution: 480x272

Operating power: DC 9 - 32 V

Current consumption: 3W (Max)

Operation temperature: -40 ~ 80 degrees Celsius

Monitor Packing List:1 x 4.3 inch TFT LCD display

1x 1M power cord

1x User manual

Rearview camera:

Features: . CMOS image processing chip, rearview camera performance is reliable and stable, clear image.

Excellent waterproof and shockproof performance.

Rear view guide line design, parking is safer.

Simple and moderate design and small size won't attract any attention and easy to install.

Specifications: - Image sensor: CMOS

Video format: NTSC

Signal mode:CVBS

Pixel:720*480

Resolution : 480TV lines
