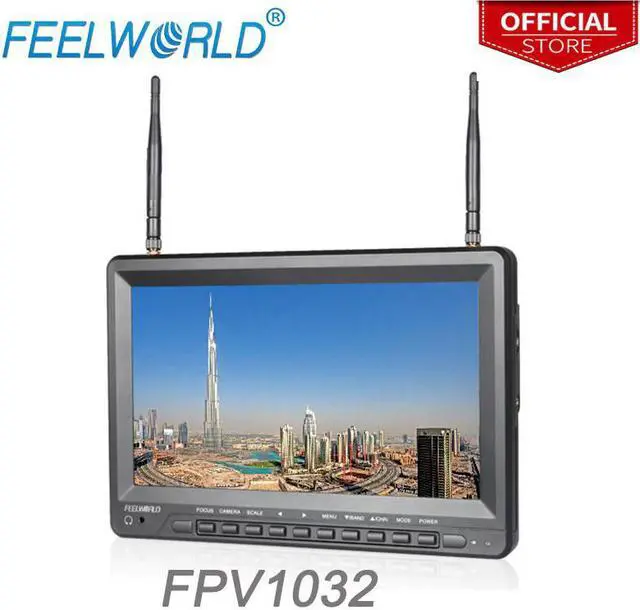

FPV1032 10.1 Inch IPS FPV Monitor with Built-in Battery Dual 5.8G 32CH Diversity Receiver 1024x600 Wireless Monitors

Display Spec.

Model

FPV1032

Screen Size

10.1" IPS

Resolution

1024×600 pixels

Pixe Pitch

0.2175 (H)×0.2088 (V) mm

Aspect Ratio

16:9

Brightness

500cd/m2;

Contrast Ratio

800:1

Backlight

LED

Viewing Angle

85°/85°(L/R) 85°/85°(U/D)

Input

1 X

1 X RCA

Video

1 X RCA

Audio

1 X RF

RF

Output

1 X RCA

Video

Audio

Audio Out

Stereo Headphone, Speaker

Support Format

480i /480p /576i /576p

720p /1080i /1080p (50/60Hz)

Video Support Format

PAL-4.43; NTSC-3.58

General

Built-in battery

7.4V/ 2200mA (2 hours)

Input Voltage

DC9~18V

Power Consumption

15W

Working Temperature

20°C~50°C

Storage Temperature

30°C~65°C

Install Way

1/4"-20 Thread mounting socket

Unit Size

259.9L×180H×28D (mm)

Unit Weight

790g (with battery)

Application

Function Button for Easy Operation

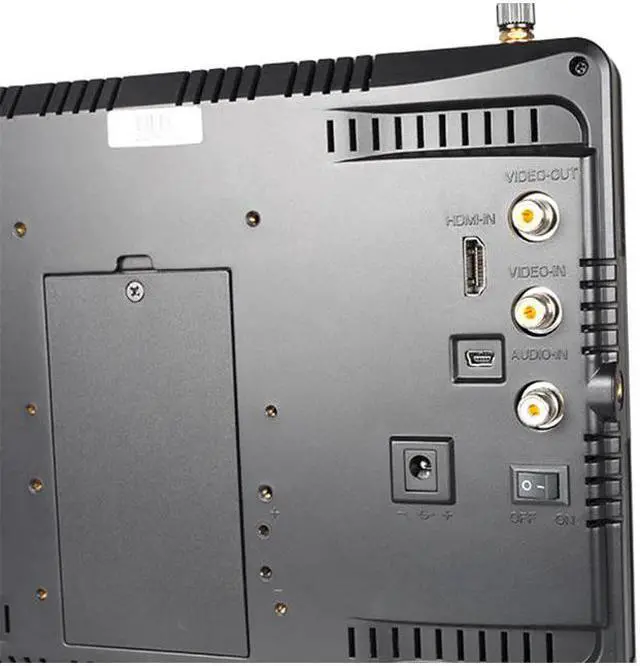

Multiple Inputs and Outputs

, Audio, Video, RF inputs; Video, 3.5mm Earphone Jack output, DC in and with USB for upgrade

Built-in Battery

2200mA Last for about 2 hours. Special design for Outdoor Operation.

Channel Auto Scan

It supports 40-channels totally, Long press "Q" button to realize auto channel searching function when aerial photography. It's much more convenient than traditional methods.

5.8GHz Wireless AV Receiver

Wireless Receiver 40 Channel (Mhz)

Collapsable Sunshade
