40PCS Metal material 15 industrial lcd open frame resistive touch screen monitor

40PCS Metal material 15" industrial lcd open frame Resistive touch screen monitor

Description:

1)Different sizes available

2)4 Wire Resistive touch screen

3)Industrial A+ grade LCD panel

4)High contrast,High brightness,vivid image layout,bets details performance.

5)Auto eliminate blur function,long life span.

6)Open frame design

7)Multiple date-image adjustment circuit,low image distortion.

8)Intelligence temperature control fan design,green and quiet.

9)Wide visual angle 178°

10)Rich signal input,output interfaces,adapted in the different environments.

11)Build-in stable power,low consumption,long life span>60000hours

Specification:

Model Number

XT-TMO15001

Display type

TFT LED panel

Screen Ratio

4:3

Resolution

1024×768@60Hz

Active area

304.1×228.1(mm)

Brightness

350cd/m2

Contrast Ratio

450:1

Support color

16.7M

Response time

5ms

Pixel Pitch

0.276x0.266mm

Viewing Angle

Horizontal(L/R):85°/85° Vertical(Up/Down):80°/80°

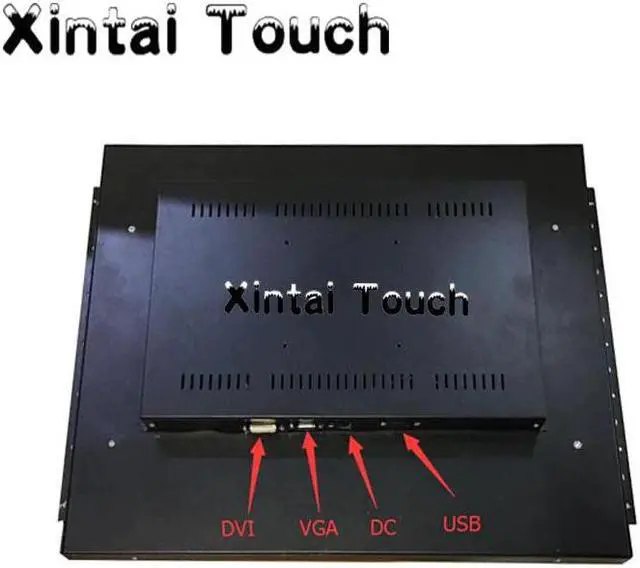

Video input

VGA,DVI

Scan Frequency

Horizontal:30~80KHz ,Vertical: 56.3~75Hz

Power Input

Support AC 90~ 240V,50 / 60Hz,DC12V-10A

Environment

Operating temperature:0 to 50°C Storage temperature:-20 to 60°C

Operating humidity:20% to 80% Storage humidity:10% to 90%

Mean Time Between Failure (MTBF)

30,000 hours

Backlight working life(Typ.)

50,000 hours

Touch screen Type

4 Wire Resistive touch screen

Touch life

Over 5,00 million times

Touch object

Finger or touch pen

Max 120W
