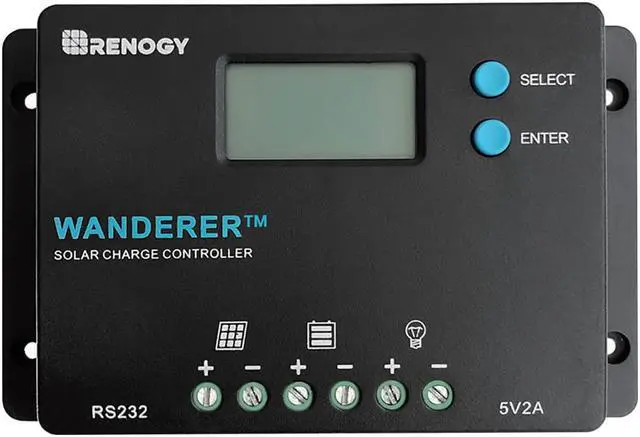

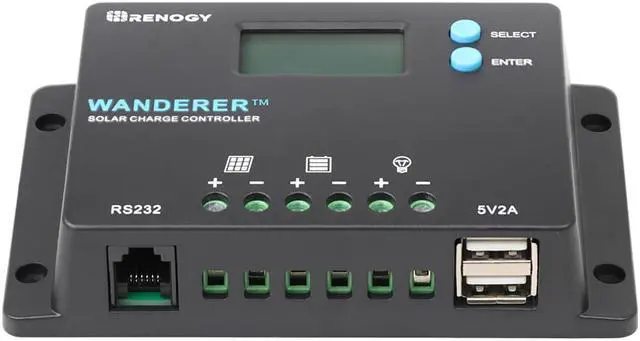

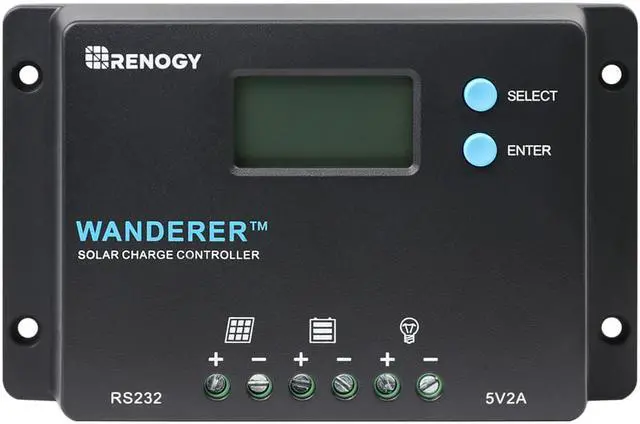

Renogy Wanderer 10A PWM Charge Controller
- Optimized for a 12V/24V system; Deep cycle Sealed (AGM), Gel, Flooded and Lithium battery option ready.
- Backlit LCD screen for displaying system operatin, diverse load control and error codes.
- Integrated 5V 2A USB ports to charge USB devices.
- Compact in size makes it easy to install virtually anywhere.
- Capable of charging over-discharged lithium batteries.
- Integrated RS232 port allows communication with BT-1 Bluetooth module and usage of Renogy DC Home smartphone app.
- Smart 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) and temperature compensation increases battery life and improves system performance. Intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Renogy Wanderer 10A solar charge controller integrates efficient PWM charging to increase battery life and improve system performance. Designed with a simple interface for ease of use the controller uses an LCD to notify users of battery information. This advanced charge controller is designed for off-grid solar applications and can be used with a 12V/24V battery or battery bank. The compact size of the controller makes installation a breeze. The controller comes equipped with fully comprehensive self-diagnostics and electronic protection functions to prevent damage from installation mistakes or system faults. Wanderer 10A PWM Charge
Controller Nominal Voltage: 12V/24V Auto Recognition Rated
Charge Current: 10A Max
Gauge Size: Up to 12AWG Max.
PV Input Voltage: 50
VDC Self-Consumption: <10mA
Temperature Compensation: -3mV/°C/2V
Working Temperature: -31°F - 113°F / -35°C - 45°C
Storage Temperature: -31°F - 176°F / -35°C - 80°C
Dimensions: 4.7 x 3.0 x 1.1 in / 119x75x 27.5 mm
Weight: 0.27 lbs / 122.47 g If you have any questions regarding this product, please call us at 1 (800) 330-8678 or email sales@renogy. com.
Controller Nominal Voltage: 12V/24V Auto Recognition Rated
Charge Current: 10A Max
Gauge Size: Up to 12AWG Max.
PV Input Voltage: 50
VDC Self-Consumption: <10mA
Temperature Compensation: -3mV/°C/2V
Working Temperature: -31°F - 113°F / -35°C - 45°C
Storage Temperature: -31°F - 176°F / -35°C - 80°C
Dimensions: 4.7 x 3.0 x 1.1 in / 119x75x 27.5 mm
Weight: 0.27 lbs / 122.47 g If you have any questions regarding this product, please call us at 1 (800) 330-8678 or email sales@renogy. com.
