10A PWM Solar Charger Controller 12/24V Auto,Solar Panel Battery Intelligent Regulator with LCD Display, Dual USB Ports 5V/2A,Paremeter Adjustable for Lead Acid Batteries

10A Solar Charge Controller: Compatible with 12V and 24V systems, rated charge & discharge current 10A,dual USB ports with 5V/2A max ,Build-in industrial micro controller, automatically manage the working of solar panel and battery in solar system
LCD Display: Equipped with a LCD display that can clearly indicate the status and data,keep track of battery voltage in real time , easily master the charge controller working status,so you can be switch modes and parameter configuration conveniently, can meet customers'wide voltage requirements
Battery Type: Only supports lead acid batteries such as open, AGM, and GEL batteries,it is not suitable for nickel metal hydride, lithium ions, or any other battery types
3-Stage PWM charge management: Adopts high efficiency intelligent 3-Stage PWM charge management , efficiently optimize charging performance and improve the overall efficiency of your system,features dual MOSFET reverse current protection, remains safe and secure at all times and the circuit control system is designed to produce low heat, prolonging the lifespan of the device
Multiple Protections: The controller has short-circuit protection, open-circuit protection,reverse protection, over-load protection, keeping your battery fully protected

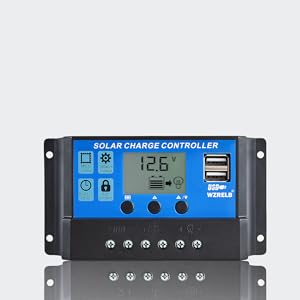

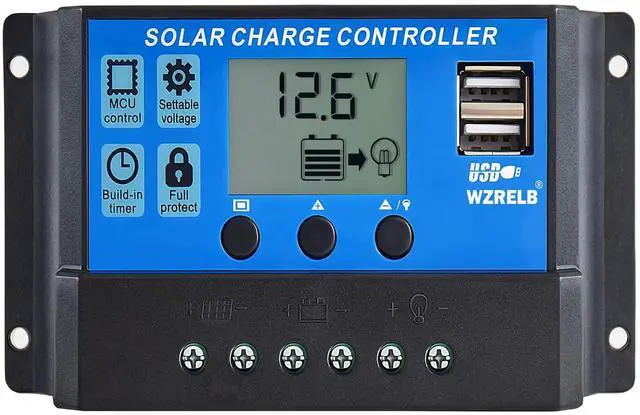

10A Solar Charge Controller

1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse

protection,over-load protection.

5.Dual mosfer Reverse current protection,low heat production.

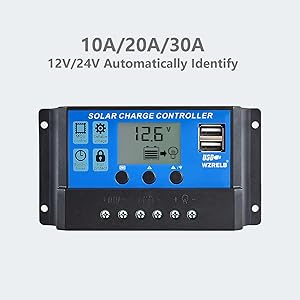

Batt Voltage	12V/24V auto
Charge Current	10A
Discharge Current	10A
Max Solar input	12V: <25V; 24V: <50V
Float charge	13.7V(default,adjustable)
Discharge stop	10.7V(default,adjustable)
Discharge reconnect	12.6V(default,adjustable)
USB output	5V/2A
Self-consume	<10mA
Operating temperature	-35~+60?

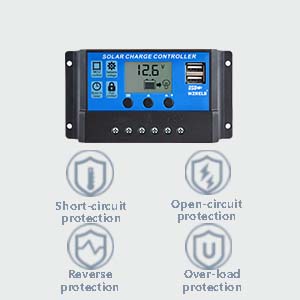

Multiple Protection

Reliable over voltage protection,short circuit protection,over load protection,overcharge protection, over-discharge protection, it can protect your devices comprehensively.

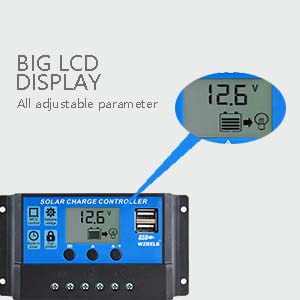

LCD

Clear LCD Display

The data and status are displayed by our exclusive controllers. Mode and parameter setting switching is possible. Ideal for commercial, industrial, residential, etc.

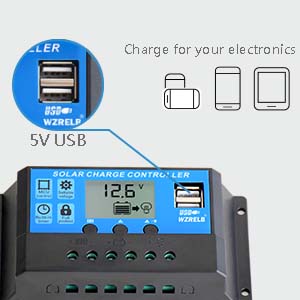

USB

USB Output

5V/2A USB Output, it's enough to provide a steady current to charge your computer and cell phone.

4-stage PWM charge

High charging efficiency and sophisticated smart PWM technology are features of this controller. To safeguard the battery, it offers four stages of charging management: bulk, absorption, float, and equalization.

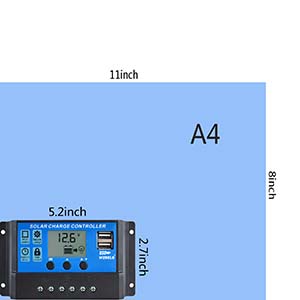

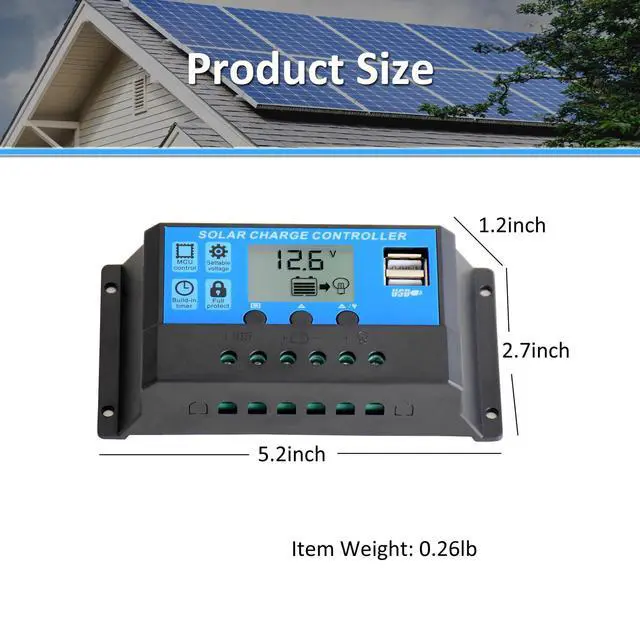

Portable Size

5.2*2.7*1.2 inches, 0.26 pounds, it's lightweight and the size is compact. Taking up little space, so you can install it easily and take it with you wherever you go.

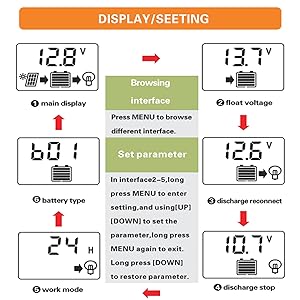

Main Interface

Browsing interface: Press MENU to browse different interface.

Set parameter: In interface2-5, long press MENU to enter setting,and using [UP] [DOWN] to set the parameter,long press MENU again to exit. Long press [DOWN] to restore parameter.
