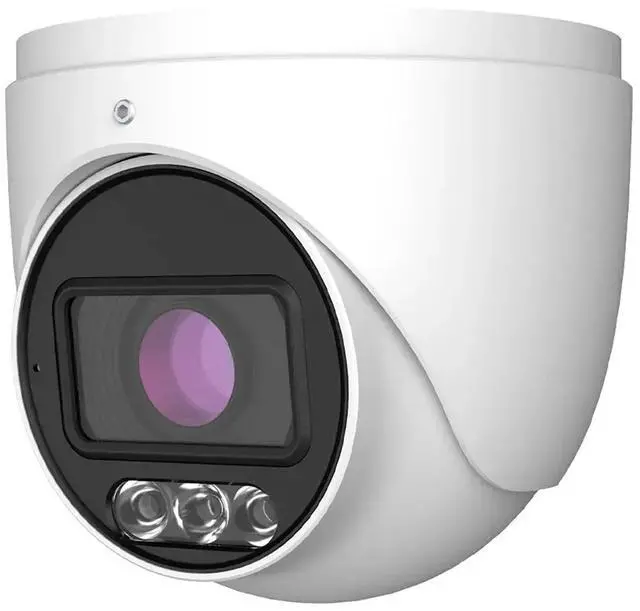

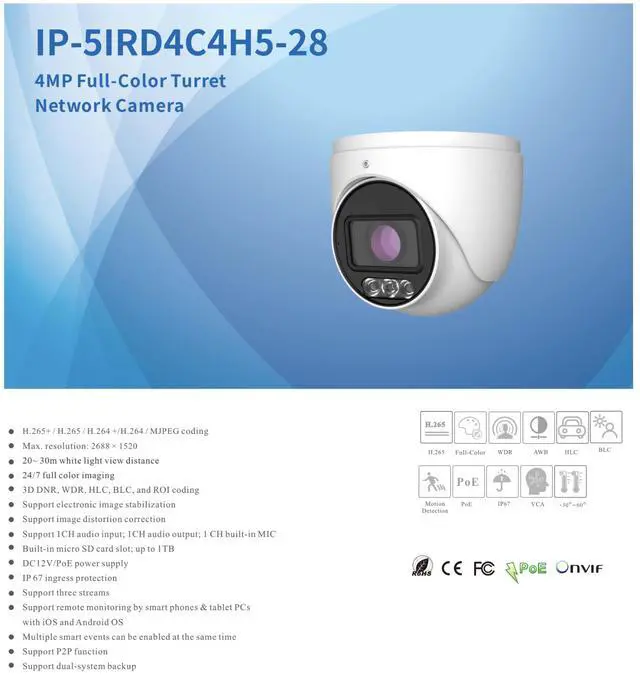

ENS Titanium IP-5IRD4C4H5-28 4MP Full-Color Turret IP Camera, 1/1.79 inch CMOS F1.0, 112 Degree, 0.0001 Lux, Face Comparison, Video Metadata, Heat Map, Alarm I/O, SD Card Slot, IP67, PoE

Overview

The ENS Titanium IP-5IRD4C4H5-28 is a 4MP full-color turret network camera built around a large 1/1.79" CMOS sensor and an F1.0 aperture, reaching an exceptional 0.0001 lux sensitivity roughly five times more light-sensitive than typical full-color cameras in this class. Combined with white light illumination out to 2030 m (6698 ft), it delivers true 24/7 color imaging in conditions where most cameras fall back to black-and-white. A wide 112° field of view covers large areas from a single mounting point. What sets this model apart is the depth of its onboard intelligence: alongside standard line crossing and region intrusion with human/vehicle classification, it adds loitering detection, illegal parking detection, face detection with face comparison, heat mapping, and line/area target counting. Its video metadata engine simultaneously captures human bodies, motor vehicles, and non-motor vehicles, extracting 13 human attributes, 4 vehicle attributes, and 1 non-motor vehicle attribute turning recorded footage into searchable data rather than hours of video to scrub through. Full two-way audio (input, output, and built-in mic) plus 1-channel alarm input and output allow integration with sirens, strobes, door contacts, and access control. Micro SD storage to 1TB with ANR, IP67 weatherproofing, a 30°C to 60°C range, and PoE or 12V DC power complete a genuinely capable camera.

Key Features

1. Exceptional Low-Light Performance 1/1.79" CMOS with F1.0 aperture and 0.0001 lux sensitivity for full color in near-total darkness.
2. Wide 112° Field of View 2.8 mm lens covers large areas from one mounting point.
3. White Light to 2030 m Full-color detail after dark, capturing clothing and vehicle color that infrared cannot.
4. Face Detection, Capture & Comparison Detects, snapshots, and matches faces against a stored list for access alerts and watchlist monitoring.
5. Video Metadata Search Simultaneously classifies people, motor vehicles, and non-motor vehicles, extracting 13 human, 4 vehicle, and 1 non-motor vehicle attributes for fast forensic search.
6. Advanced Analytics Loitering detection and illegal parking detection in addition to line crossing, region intrusion/entrance/exit with human/vehicle classification, and abandoned/missing object detection.
7. Heat Map & Target Counting Line and area counting plus heat mapping for retail traffic and occupancy analysis.
8. Full Two-Way Audio Audio input, audio output, and built-in microphone for live talk-down.
9. Alarm Input & Output 1CH each for integrating sirens, strobes, door contacts, or access control.
10. 1TB Edge Storage with ANR Recording continues through network outages, then backfills automatically.
11. Rugged Build IP67 rated, operating from 30°C to 60°C (22°F to 140°F).
12. Enterprise Security HTTPS, video/firmware/config encryption, 802.1X, IP filtering, and illegal login lock.

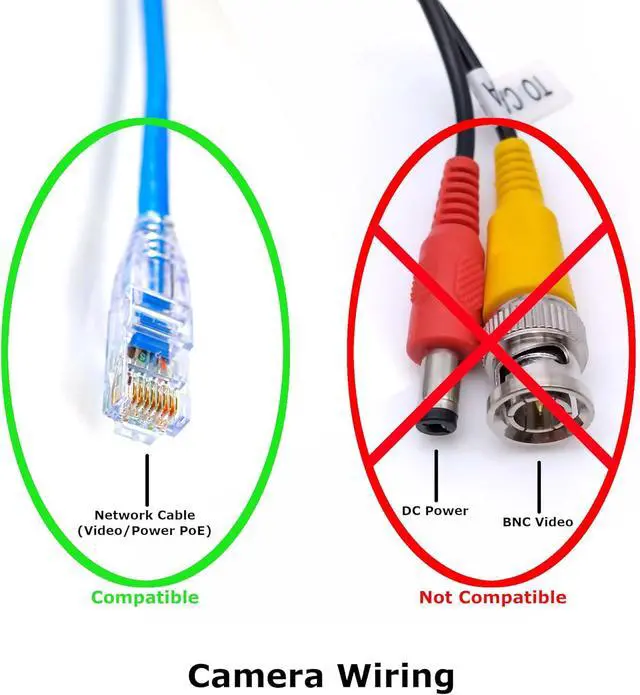

13. Efficient Install PoE (802.3af) or 12V DC, under 7W, ONVIF compatible, P2P remote viewing on iOS and Android.

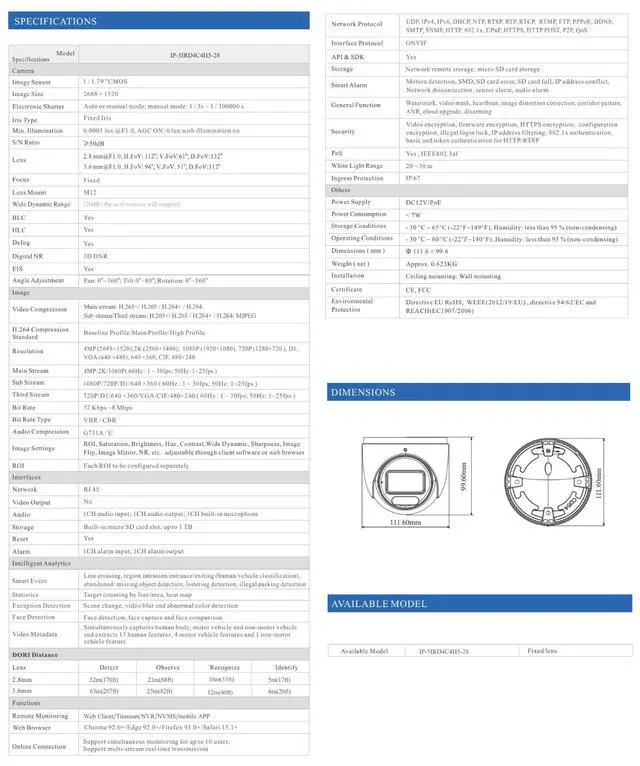

Specifications

1. Model: IP-5IRD4C4H5-28 | Type: Fixed Turret, IP/Network
2. Resolution: 4MP (2688 × 1520) | Frame Rate: up to 30fps (60Hz) / 25fps (50Hz)
3. Image Sensor: 1/1.79" CMOS | S/N Ratio: 50 dB
4. Lens: 2.8 mm @ F1.0 fixed, M12 mount | FoV: 112° horizontal, 61° vertical, 132° diagonal
5. Min. Illumination: 0.0001 lux @ F1.0 (AGC on); 0 lux with white light on
6. White Light Range: 2030 m (6698 ft) | Full-color 24/7
7. Image: BLC, HLC, 3D DNR, ROI, EIS, image distortion correction
8. Electronic Shutter: Auto or manual (1/3 s to 1/100,000 s) | Fixed iris
9. Compression: H.265+ / H.265 / H.264+ / H.264 (MJPEG on sub/third streams) | 32 Kbps8 Mbps
10. Streams: 3 (main + sub + third)
11. Analytics: Line crossing, region intrusion/entrance/exit (human/vehicle classification), abandoned & missing object, loitering detection, illegal parking detection
12. Face: Face detection, face capture, face comparison
13. Metadata: Human body, motor vehicle, and non-motor vehicle capture 13 human / 4 motor vehicle / 1 non-motor vehicle attributes
14. Statistics: Target counting by line and area, heat map
15. DORI (2.8mm): Detect 52 m (170 ft) | Observe 21 m (68 ft) | Recognize 10 m (33 ft) | Identify 5 m (17 ft)
16. Audio: 1CH input + 1CH output + 1CH built-in microphone | G.711A/U
17. Alarm: 1CH input + 1CH output
18. Storage: Micro SD up to 1TB, network remote storage, ANR
19. Network: RJ45 | ONVIF | API & SDK | up to 10 simultaneous users
20. Security: Video/firmware/config encryption, HTTPS, 802.1X, IP filtering, login lock
21. Power: PoE (IEEE 802.3af) or DC 12V | Consumption: <7W
22. Ingress Protection: IP67
23. Operating Conditions: 30°C to 60°C (22°F to 140°F), <95% RH non-condensing
24. Dimensions: Ø111.6 × 99.6 mm | Weight: approx. 0.623 kg (1.37 lbs)
25. Installation: Ceiling or wall mount | Pan 0360°, Tilt 080°, Rotation 0360°
