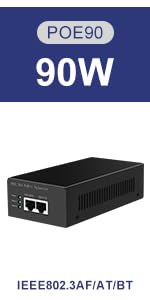

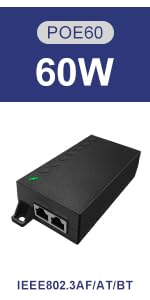

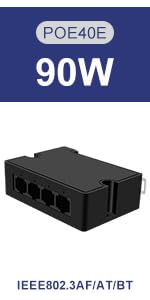

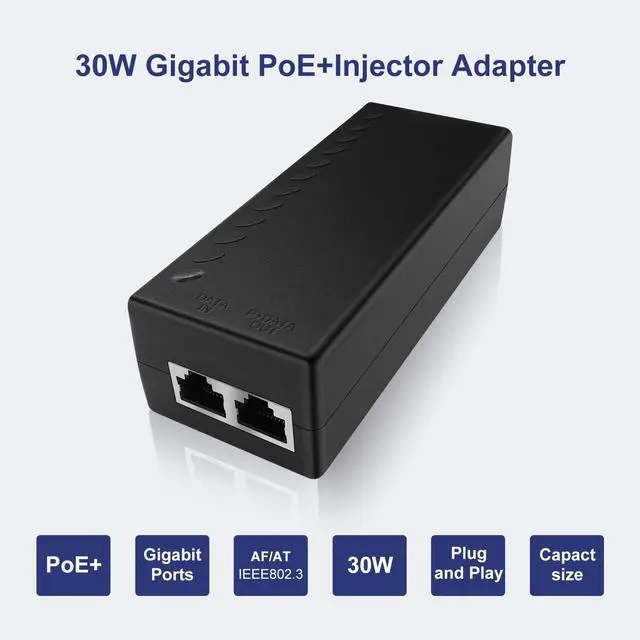

 POE90 90W Gigabit Ultra PoE++ Injector Adapter, IEEE 802.3 bt /802.3at/802.3a... |  POE60 60W Gigabit Ultra PoE+ Injector, Up to 60W Ultra Power Supply, 10/100/1... |  30W Gigabit PoE Injector Adapter, 30W,10/100/1000Mbps RJ-45, IEEE 802.3af / 8... |  POE40E 4-Port Gigabit PoE Extender with 3 PoE Output Ports, IEEE 802.3af/at C... |  POE30E 4-Port Gigabit PoE Extender with 3 PoE Output Ports, IEEE 802.3af/at C... | |
|---|---|---|---|---|---|
| Price | — | — | — | — | — |
| PoE Output | 90 Watts max, Typical Voltage:56V, Support any PoE/PoE+/PoE++ device | 60 Watts max, Typical Voltage:53V, Support any PoE/PoE+/POE++ device | 30 Watts max, Typical Voltage:50V, Support any PoE/PoE+ device | 90 Watts max, support any PoE/PoE+/PoE++ device | 30 Watts max, support any PoE/PoE+ device |
| IEEE802.3bt | ? | ? | no data | ? | no data |
| IEEE802.3at | ? | ? | ? | ? | ? |
| IEEE802.3af | ? | ? | ? | ? | ? |
| size | 5.86"L x 2.96"W x 1.61"H | 5.43"L x 2.48"W x 1.31"H | 4.76"L x 1.96"W x 1.41"H | 3.2"L x 2.2"W x 0.9"H | 3.2"L x 2.2"W x 0.9"H |
| Ethernet port | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100 Mbps |
| Pin Assignment and Polarity | 1/2(-)3/6(+),4/5(+)7/8(-) | 1/2(-)3/6(+),4/5(+)7/8(-) | 1/2 (-), 3/6 (+) | 1/2,3/6 and 4/5,7/8 | 1/2,3/6 and 4/5,7/8 |
| Input Voltage | 100 ~ 240 V | 100 ~ 240 V | 100 ~ 240 V | - no data | - no data |
Input Power Requirements:
- AC Input Voltage: 100~240V
- AC Input Current: 0.5A 100~240V
- AC Frequency: 50 to 60 Hz
Environmental Conditions:
- Operating Ambient Temperature: 0 to 40°C
- Operating Humidity: Maximum 85%, Non-condensing
- Storage Temperature:-40 to 40°C
- StorageHumidity: Maximum 90%, Non-condensing

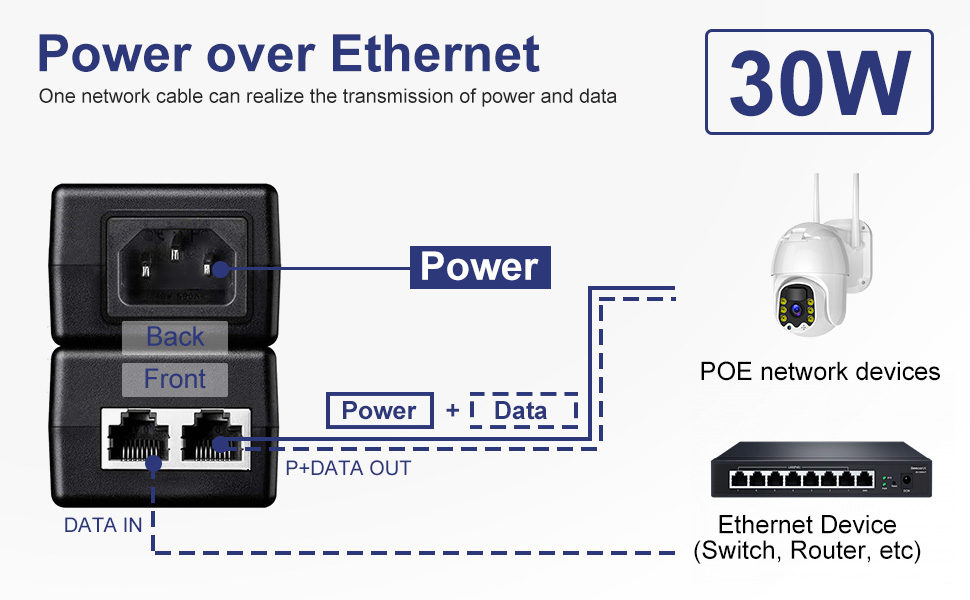

PoE Output :
- Pin Assignment and Polarity: 1/2 (-), 3/6 (+)

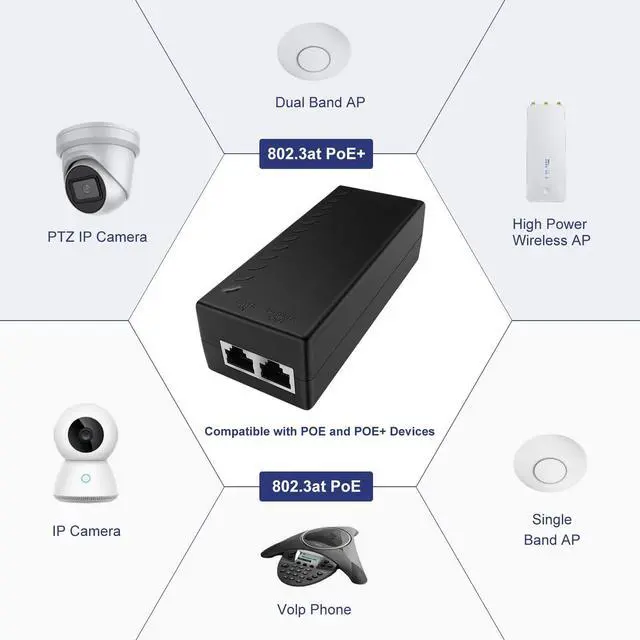

- Output Power Voltage: Typical:50V, Support any 802.3af / 802.3at device (44V ~ 50V)

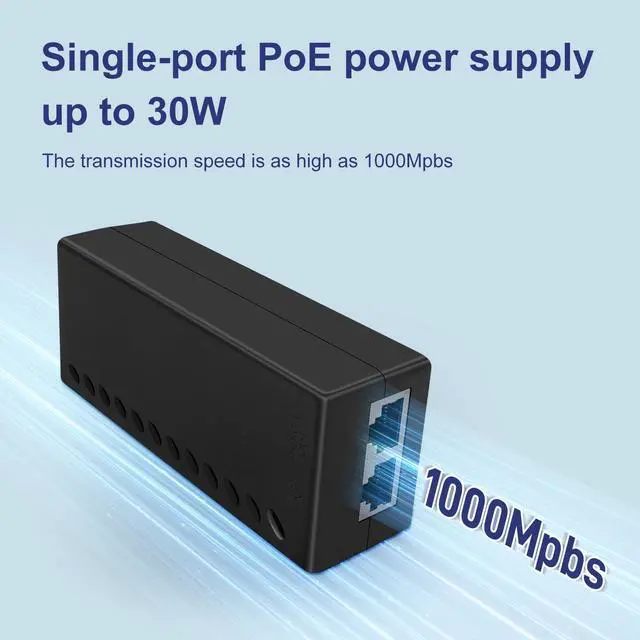

- User Port Power Output: 30W max
Protection:
- Over current protection
- Over load protection
- Over voltage protection
POE90 90W Gigabit Ultra PoE++ Injector Adapter, IEEE 802.3 bt /802.3at/802.3a... | POE60 60W Gigabit Ultra PoE+ Injector, Up to 60W Ultra Power Supply, 10/100/1... | 30W Gigabit PoE Injector Adapter, 30W,10/100/1000Mbps RJ-45, IEEE 802.3af / 8... | POE40E 4-Port Gigabit PoE Extender with 3 PoE Output Ports, IEEE 802.3af/at C... | POE30E 4-Port Gigabit PoE Extender with 3 PoE Output Ports, IEEE 802.3af/at C... | |
|---|---|---|---|---|---|
| Price | — | — | — | — | — |
| PoE Output | 90 Watts max, Typical Voltage:56V, Support any PoE/PoE+/PoE++ device | 60 Watts max, Typical Voltage:53V, Support any PoE/PoE+/POE++ device | 30 Watts max, Typical Voltage:50V, Support any PoE/PoE+ device | 90 Watts max, support any PoE/PoE+/PoE++ device | 30 Watts max, support any PoE/PoE+ device |
| IEEE802.3bt | ? | ? | no data | ? | no data |
| IEEE802.3at | ? | ? | ? | ? | ? |
| IEEE802.3af | ? | ? | ? | ? | ? |
| size | 5.86"L x 2.96"W x 1.61"H | 5.43"L x 2.48"W x 1.31"H | 4.76"L x 1.96"W x 1.41"H | 3.2"L x 2.2"W x 0.9"H | 3.2"L x 2.2"W x 0.9"H |
| Ethernet port | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100 Mbps |
| Pin Assignment and Polarity | 1/2(-)3/6(+),4/5(+)7/8(-) | 1/2(-)3/6(+),4/5(+)7/8(-) | 1/2 (-), 3/6 (+) | 1/2,3/6 and 4/5,7/8 | 1/2,3/6 and 4/5,7/8 |
| Input Voltage | 100 ~ 240 V | 100 ~ 240 V | 100 ~ 240 V | - no data | - no data |
Input Power Requirements:
- AC Input Voltage: 100~240V
- AC Input Current: 0.5A 100~240V
- AC Frequency: 50 to 60 Hz
Environmental Conditions:
- Operating Ambient Temperature: 0 to 40°C
- Operating Humidity: Maximum 85%, Non-condensing
- Storage Temperature:-40 to 40°C
- StorageHumidity: Maximum 90%, Non-condensing
PoE Output :
- Pin Assignment and Polarity: 1/2 (-), 3/6 (+)
- Output Power Voltage: Typical:50V, Support any 802.3af / 802.3at device (44V ~ 50V)
- User Port Power Output: 30W max
Protection:
- Over current protection
- Over load protection
- Over voltage protection
