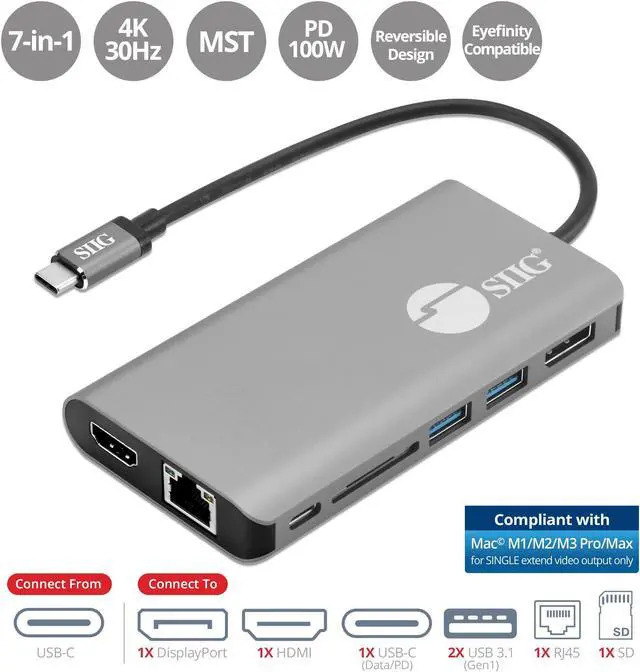

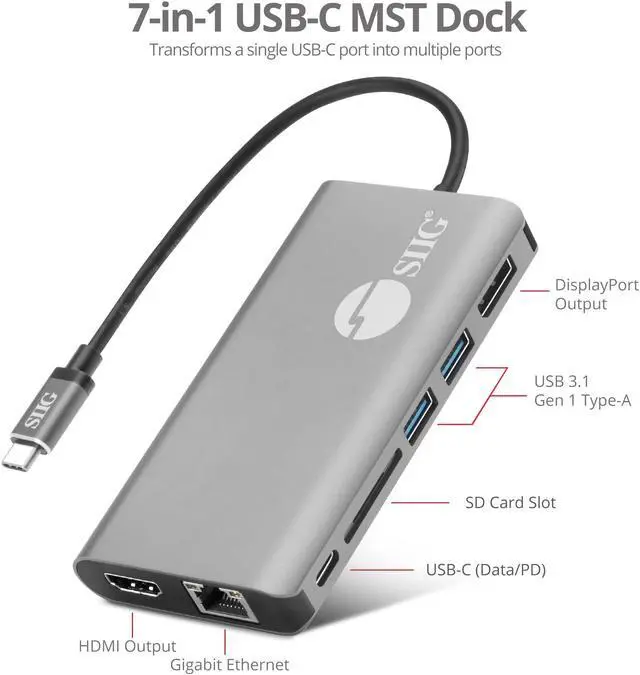

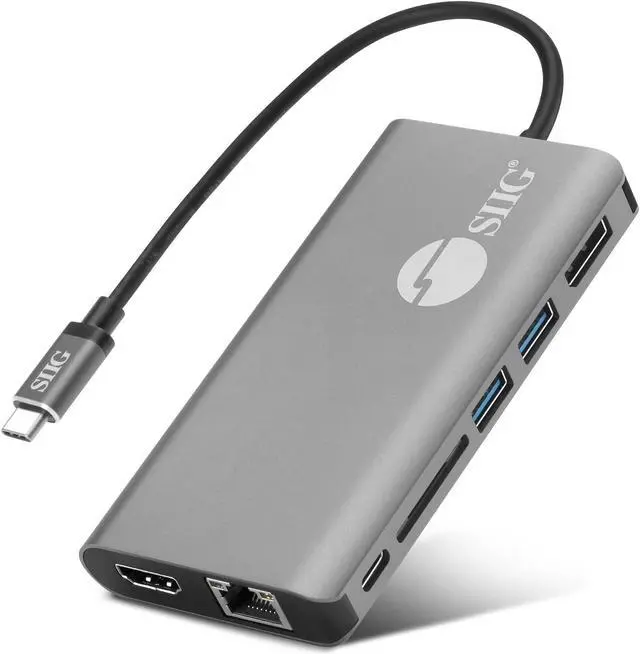

SIIG USB-C MST Video with Hub, LAN and PD 3.0 Docking, USB-C Multiport Adapter, 4K HDMI or Displayport Video, Dual 1080p, 100W PD, 2X USB 3.0 Ports, USB-C Port, Ethernet/SD (JU-DK0F11-S1)

Important Notes:
-Requires a USB-C port that supports "DisplayPort Alternate Mode" (DP Alt Mode). Not all USB-C ports/systems support DP Alt Mode functionality.
-Mac OS does not support MST function and will only mirror the displays.

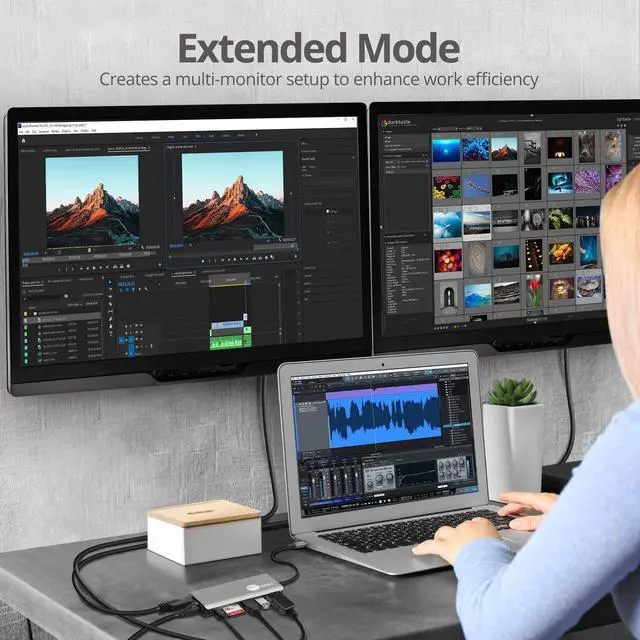

-Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode.
-The computer and power adapter must support PD 3.0 specification, otherwise the dock will reset when power delivery is disconnected.

Specifications

:
-Chipset: STDP4320+VL817+VL102+RTL8153B+GL823K
-Compatible with USB-C Alt-mode and Thunderbolt 3 technology
-Compatible with DisplayPort 1.2 with MST graphics cards with AMD Eyefinity, NVIDIA Surround and Intel Multiple Displays technology

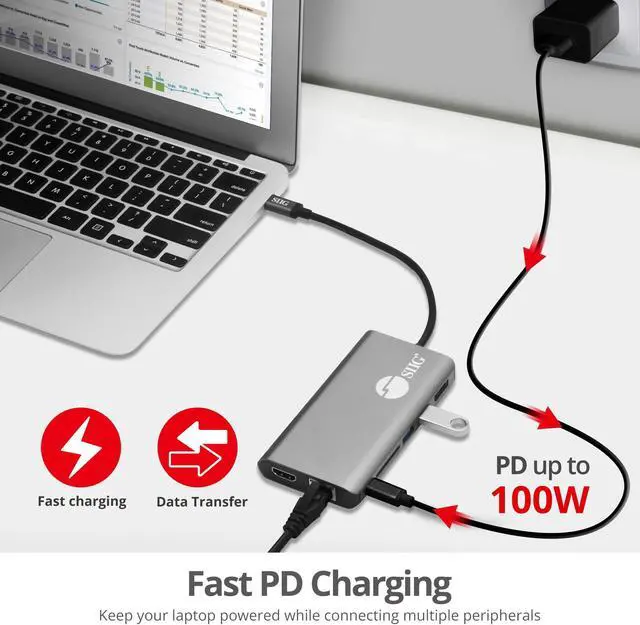

-Power Delivery 3.0 specification: 20/12/5V @5A/3A/2A/ 1.5A, up to 100W
-USB data transfer rate: up to 5Gb/s
-Compatible networks: 10/100/1000 Mbps
-Memory Card Types: SDHC 2.0, SDXC 2.0 up to 40Mbps
-Memory Card Capacity: SDHC up to 32GB, SDXC up to 2TB (max)
- Power: USB Bus-powered

Certifications/Standards: FCC, CE, RoHS

Warranty: 2 years limited


Resolution: Single video mode:
-DisplayPort: Up to 3840x2160 @30Hz
-HDMI: Up to 3840x2160p @30Hz

Dual video mode:
-DP+HDMI: Up to 1080p @60Hz

System Requirements
-Desktop or laptop computer with an available USB-C port (DP Alt Mode or Thunderbolt 3)
-Note: Requires a USB-C port that supports "DisplayPort Alternate Mode" (DP Alt Mode). Not all USB-C ports/systems support DP Alt Mode functionality
-Windows 10 / 8 / 7 (32-/64-bit)
-Mac OS X 10.13 or later
-Note: Mac OS does not support MST function and will only mirror the displays.
