Procet Industrial Gigabit High Power Over Ethernet PoE Injector 60W 55V with Wide Temperature and 6KV Surge Protection, 12-48Vdc Input,Din Rail Installation IEEE802.3af,802.3at,PoE++, PT-PSE105GW-E

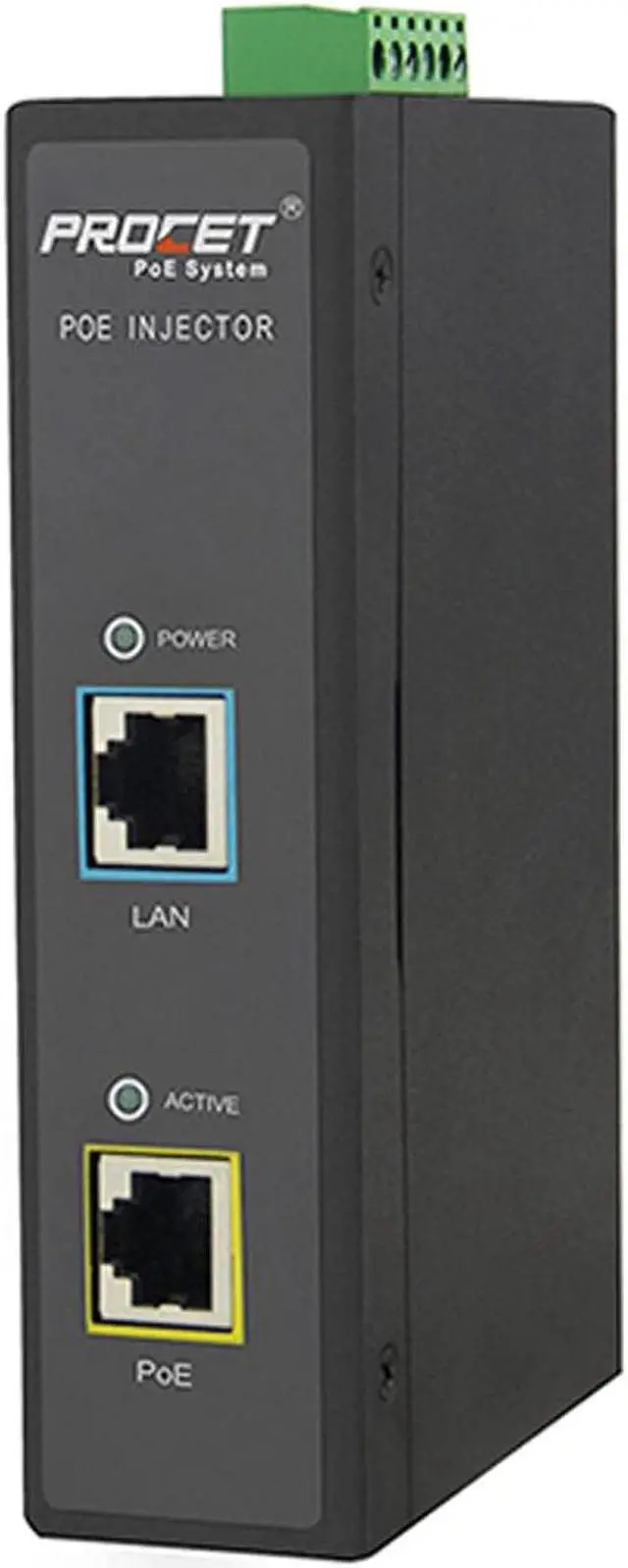

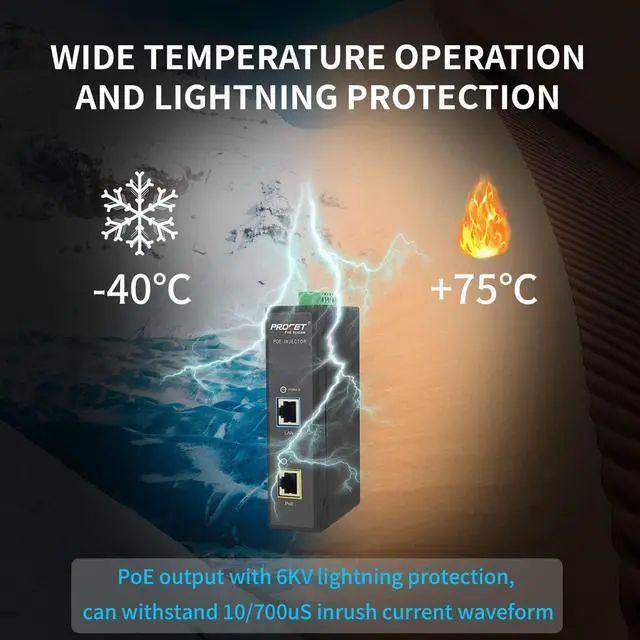

PT-PSE105GW-E is a single-port, industrial-scale high power PoE injector. It provides 55Vdc, 1.1A power for remote PDs over full 4 pairs output with 6KV (10/700us) surge protection. It supports 10/100/1000Mbps of data speed. It works for 60W PoE PDs, such as wireless access points, network cameras, VoIp phones and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE 802.3 af/at, PoE++ compliant terminals.

PT-PSE105GW-E is designed for indoor use. It works with input voltage of 12-48Vdc and operates under -40 to

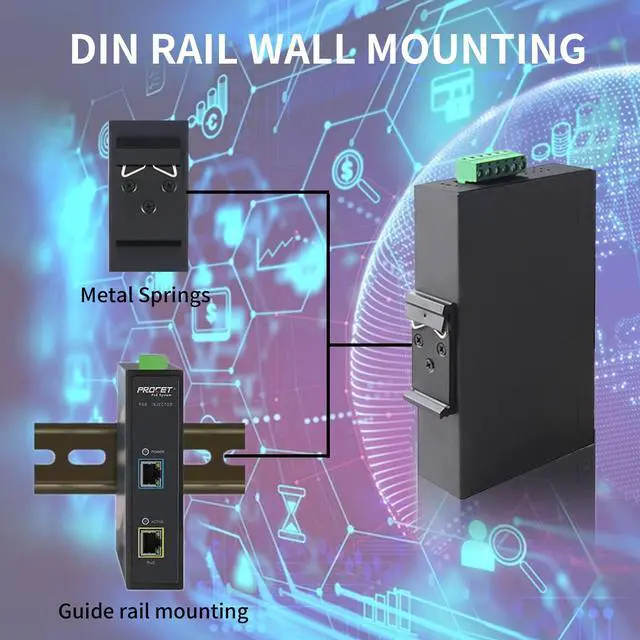

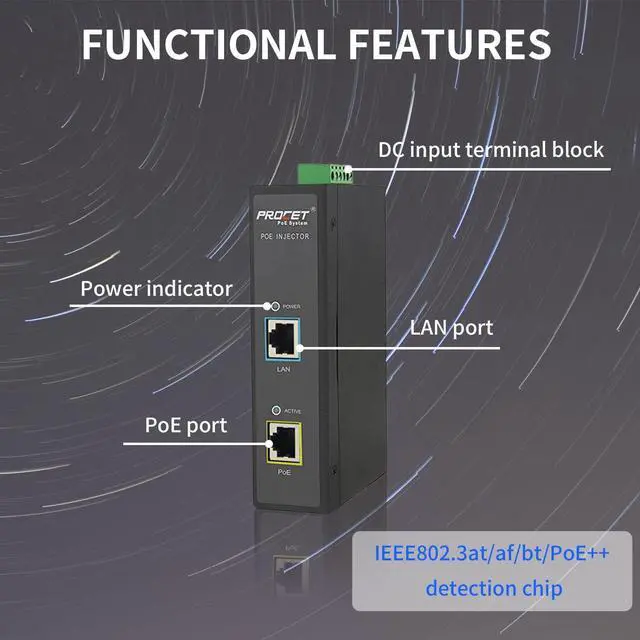

65. It has detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables. This model equiped standard DIN rail mounting bracket, which can easily jam into the guide rail.

-
Input: 12-48Vdc
-
Output: 55Vdc 1100mA
-
Power Pins: 4/5(+), 7/8(-)& 1/2(-), 3/6(+)
-
Data Speed: 10/100/1000Mbps
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3 u 100Base-Tx Fast Ethernet
- IEEE 802.3 ab 1000Base-T Gigabit Ethernet
- Full compliant with IEEE 802.3 af/at, PoE++ standard
- RoHS Compliance
- WEEE Compliance
- Operating Temperature: -40 to 65
- Operating Humidity: 20% to 80%, non-condensation
- Storage Temperature: -40 to 85
- Storage Humidity: 10% to 90%, non-condensation
- Operating Altitude: up to 5000meters
- Case: Metal
- Color: Black
- Mounting: DIN Rail

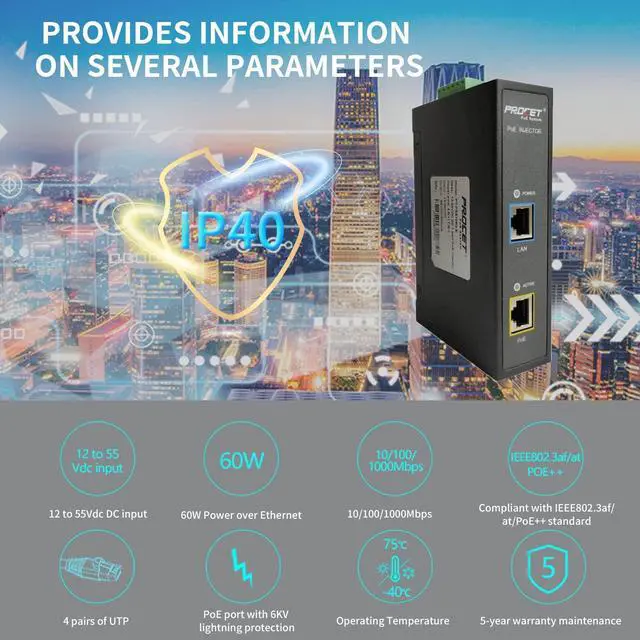

- IP Rated: IP40
- Size: 115mm X 75mm X 32mm
- Weight: 400g
- Packing.: Manual x 1, Ground lug Wire: 16AWG
- Full details and data sheet at:
http: //www. poesystem. com/industrial-poe-injector/PT-PSE105GW-E-Industrial-PoE-Injector. html
