Mini Industrial 2 Ports Gigabit Fiber Media Converter Supporting DIN-Rail Installation, IEEE 802.3af/at 30W PoE+ Fiber Switch with 2 RJ45 Port and 1 SFP Port, 12~48V DC Power Input

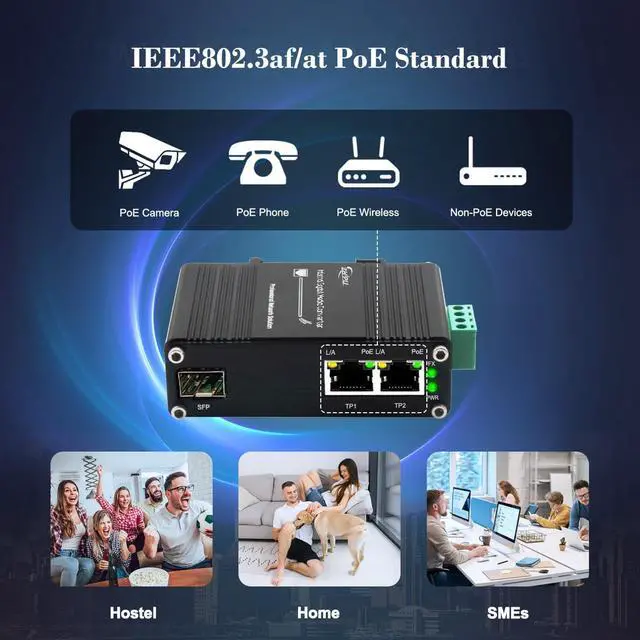

- [IEEE802.3af/at PoE Standard]--The media converter supports IEEE802.3af PoE (15.4W) and IEEE802.3at PoE+(30W), meeting the power supply requirements of most devices.
- [Auto Sensing 100/1000Base-FX]-- The open SFP port of fiber media converter supports both IEEE802.3at PoE+(30W). You can use your device with 100M or 1000M fiber port freely.

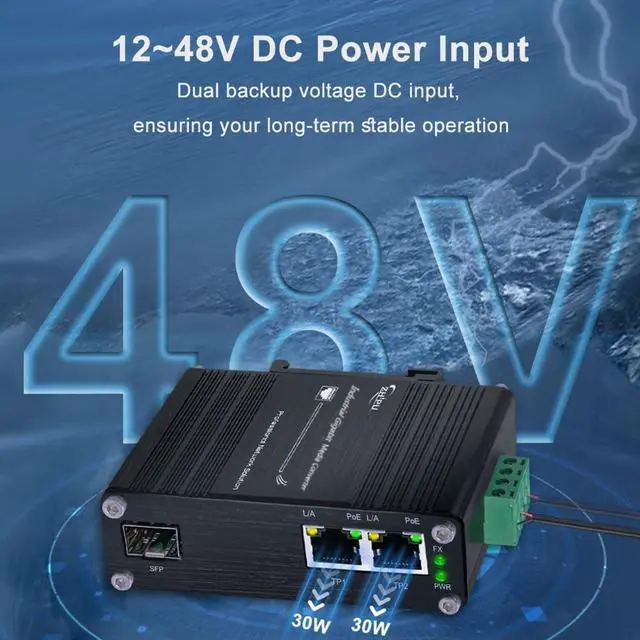

- [12~48V DC Power Input]-- The media converter supports 12~48V dual backup voltage DC input, which ensures long-term stable operation.
- [Multiple Functions]--The Ethernet Media Converter supports Auto-negotiation, full Duplex or half Duplex, Auto-negotiation, Complies with IEEE 802.3/802.3u/802.3z/802.3ab.

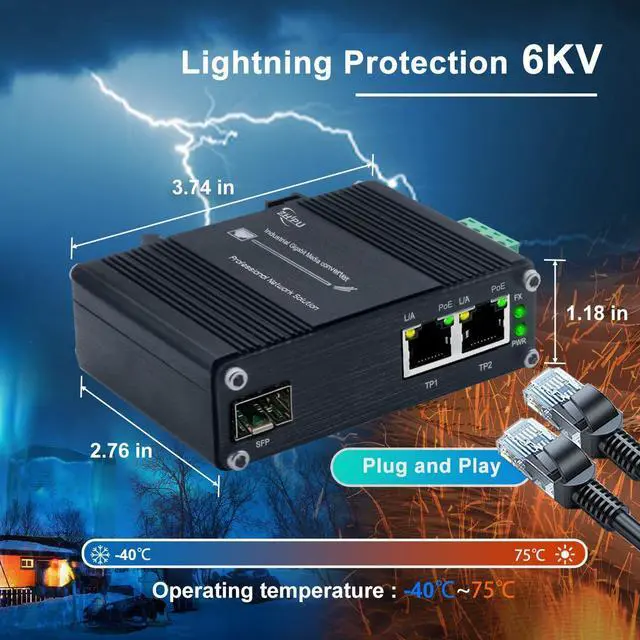

- [Aluminum Housing]--The Ethernet media converter uses industrial IP40 aluminum housing, having 6KV lighting protection and can work at wide range temperature -40degC to 80degC (-40degF to 176degF).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview:

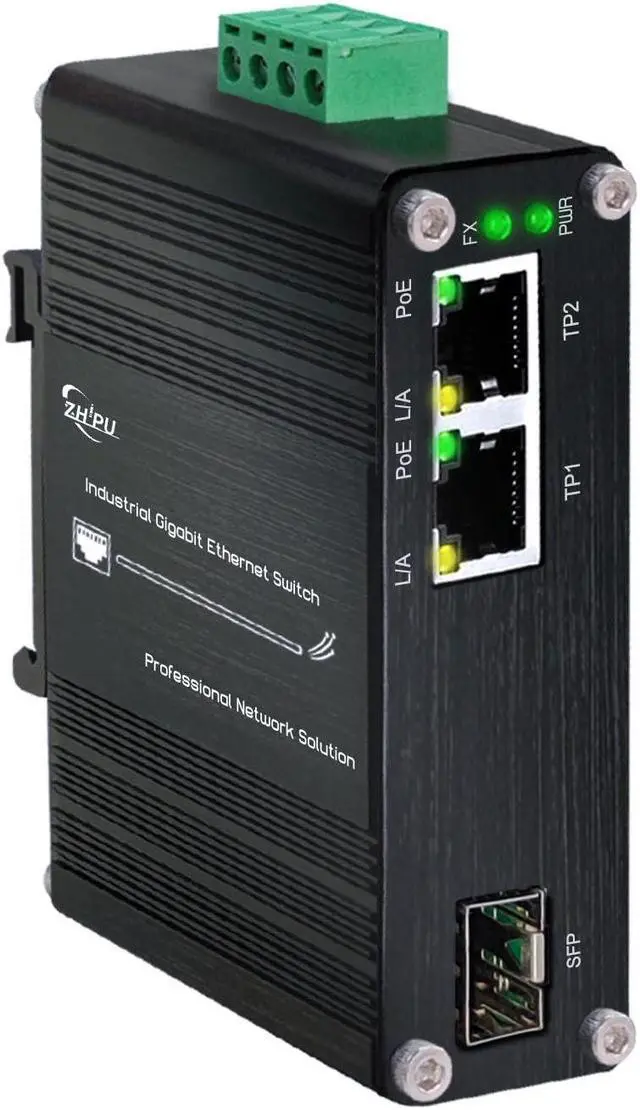

The Mini 30W PoE Gigabit Fiber Media Converter has 1*100/1000Base-X SFP Port and 2*10/100/1000Base-T RJ45 Port which supports IEEE 802.3 af/at. Plug and play. It's easy to use and convenient to install.

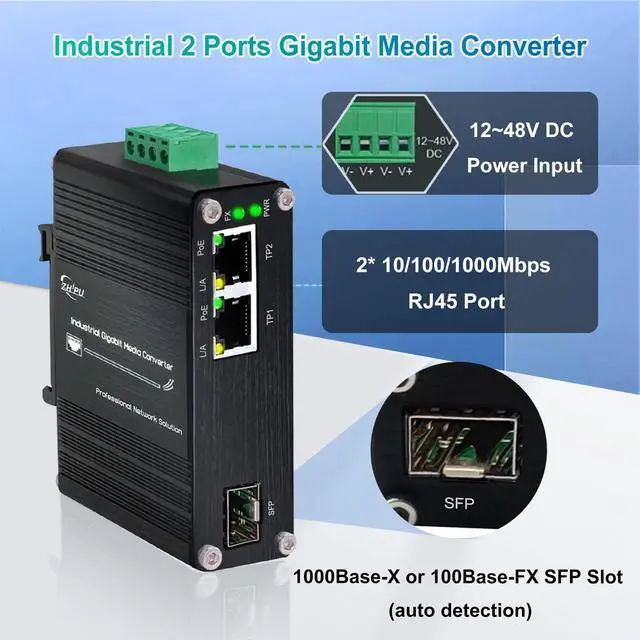

Features: 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection) Supports Full/Half-duplex, Auto-negotiation Supports IEEE 802.3 af/at PoE+ (30W) IEEE 802.3 az Energy Efficient Ethernet (EEE) 12~48VDC Terminal Block Power Input Supports DIN-Rail & Wall-mount installation -40degF to 167degF operating temperature
Specification:
Connector: 2 x RJ45
Optical Port: 1 x SFP 1000Base-X or 100Base-FX (auto detection)
SFP modules: single-mode/multi-mode fiber, 1/2 core
Forward Filter Rate: 14, 880pps (10Mbps); 148, 800pps (100Mbps); 1, 488, 000pps (1000Mbps)
Input Power: 12~48VDC, 4-pin terminal block
Dimensions (WxDxH): 95 x 70 x 30 mm ( 3.74 x 2.76 x 1.18 inches)
Weight: 0.25K g ( 0.55 lb)
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Packages:
1* 30W fiber media converter
1*L-shaped wall mount bracket
1*user manual
The Mini 30W PoE Gigabit Fiber Media Converter has 1*100/1000Base-X SFP Port and 2*10/100/1000Base-T RJ45 Port which supports IEEE 802.3 af/at. Plug and play. It's easy to use and convenient to install.
Features: 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection) Supports Full/Half-duplex, Auto-negotiation Supports IEEE 802.3 af/at PoE+ (30W) IEEE 802.3 az Energy Efficient Ethernet (EEE) 12~48VDC Terminal Block Power Input Supports DIN-Rail & Wall-mount installation -40degF to 167degF operating temperature
Specification:
Connector: 2 x RJ45
Optical Port: 1 x SFP 1000Base-X or 100Base-FX (auto detection)
SFP modules: single-mode/multi-mode fiber, 1/2 core
Forward Filter Rate: 14, 880pps (10Mbps); 148, 800pps (100Mbps); 1, 488, 000pps (1000Mbps)
Input Power: 12~48VDC, 4-pin terminal block
Dimensions (WxDxH): 95 x 70 x 30 mm ( 3.74 x 2.76 x 1.18 inches)
Weight: 0.25K g ( 0.55 lb)
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Packages:
1* 30W fiber media converter
1*L-shaped wall mount bracket
1*user manual
