Specification: Sensor SONY IMX317 (1/ 2.5" ) Max Resolution 3840 (H) *2160 (V) Sensitivity 1000mV/Lux-sec Image area 6100umx4524um Picture format MJPEG / YUY2 (YUYV) Resolution & FPS 3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG 2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG 1920x1080@ 30fps MJPEG/ 1280x1024@30fps MJPEG 1280x960@30fps MJPEG/1280x720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG 3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2 2048x1536@ 3fps YUY2 /1600x1200@ 3fps YUY2 1920x1080@ 3fps YUY2/ 1280x1024@3fps YUY2 1280x960@5fps YUY2/1280x720@ 5fps YUY2 1024 x 768@ 5fps YUY2/ 800 x 600@ 20fps YUY2 640x480@ 30fps YUY2 / 320x240@ 30fps YUY2 Center Definition 1000LW/PH (Center) S/N (Signal Noise Ratio) 26dB Sensitivity 0.65V /lux-sec@550nm Low illumination 0.2 lux Shutter Electronic rolling shutter / Frame exposure Interface USB 2.0 High Speed AEC Support AEB Support AGC Support Adjustable Parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast,

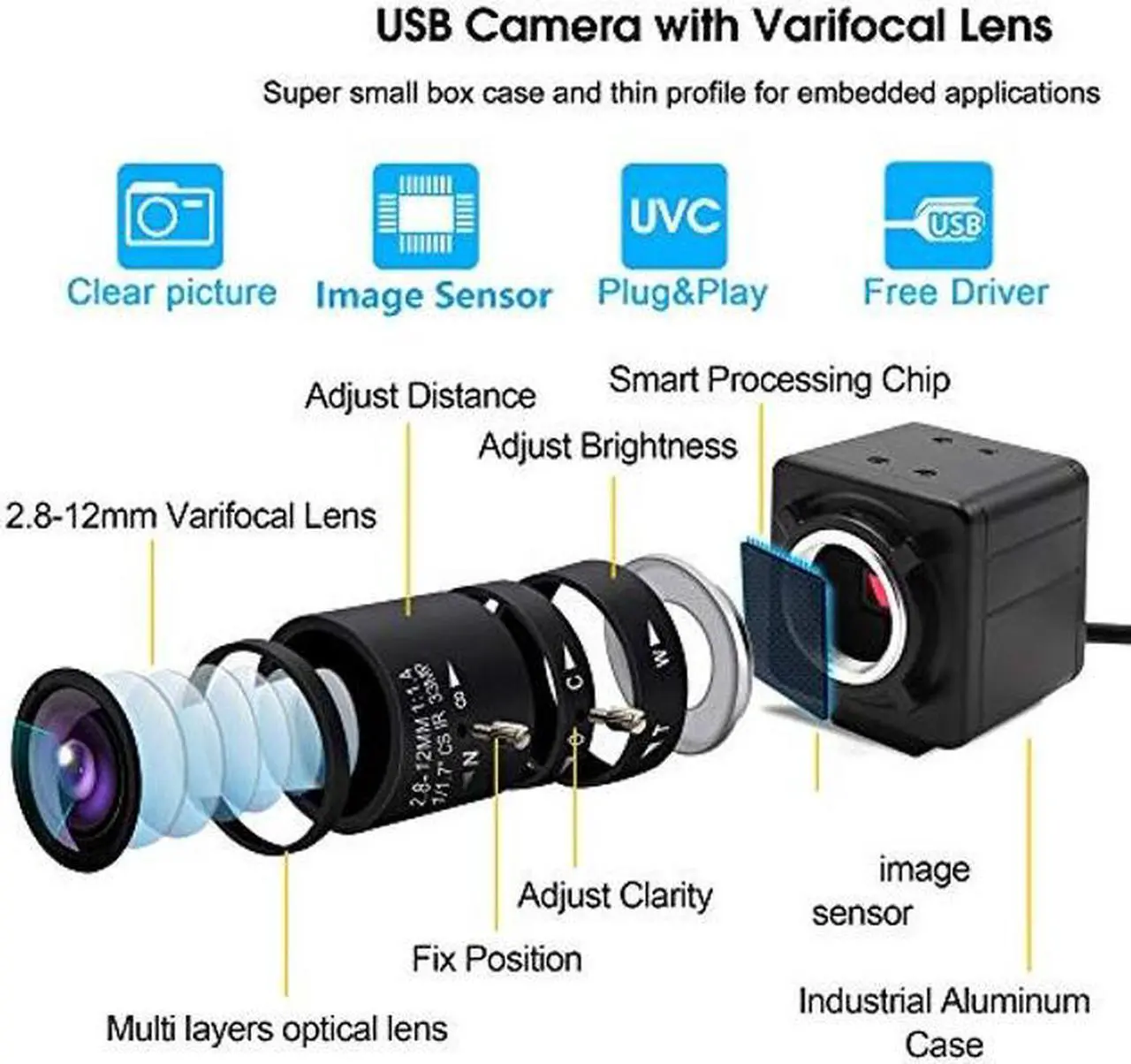

Exposure Lens Size: 5-50mm Manual Varifocus Lens Relative
Illumination (Sensor): 70%
IR Filter: 650+-10nm Power Supply & Connector USB BUS POWER 4P- 2.0 mm socket Power DC5V Current 200mA Size 38mm x 38mm Storage Temperature -20degC to 70degC Working Temperature 0degC to 60degC USB Cable 3M Operating System Win XP/Vista/Win7/Win8 / Linux with UVC(above linux- 2.6. 26) MAC-OS X 10.4. 8 or later/Android 4.0 or above with
UVC Q: iMac software only support record the 4K video 1920x1080P resolution?
A:
1. Quick Time on iMac only support 1080P video in default and have not the selection for other higher resolution. 2. The iCamera seems can record the 4K video on Mac and you can find it on Apple store.
Q: What systems does 4K USB camera
