Image Sensor SONY IMX415 (1/ 2.8" )
Max. Resolution 3840 (H) *2160 (V)
Sensitivity: 1000mV/Lux-sec
Pixel Size: 1.45 umx 1.45 um
Compression format MJPEG / YUY2 ( YUYV)
Resolution & frame 3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG
2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG
1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE
1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG
640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG
3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2
2048x1536@ 3fps YUY2 /1600x1200@ 5fps YUY2
1920x1080@ 5fps YUY2/1280x960@5fps YUY2
1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2
640x480@ 30fps YUY2 / 320x240@ 30fps YUY2
Center definition 1000LW/PH (Center)
S/N Ratio 30dB
Sensitivity 0.65V /lux-sec@550nm
Minimum illumination 0.2 lux
Shutter Type Electronic rolling shutter / Frame exposure
Connecting Port type USB 2.0 High Speed
AEC/AEB/AGC/Auto Focus Support
Adjustable parameters: Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure

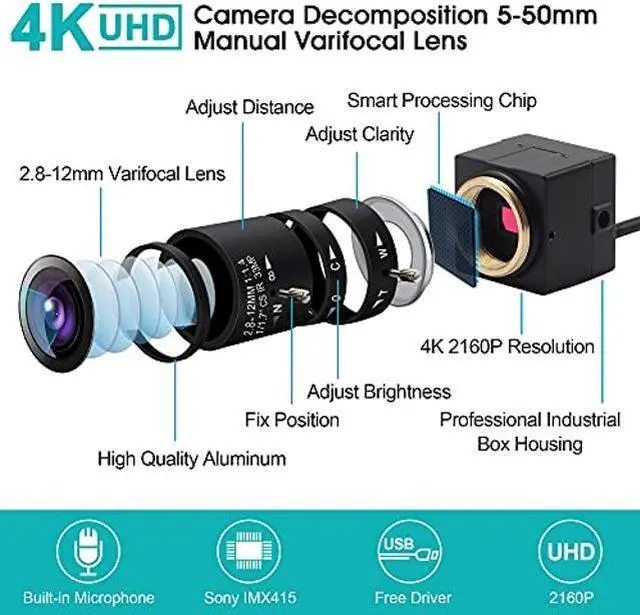

Lens Parameter Size: 1/ 2.5, FOV: 94.5D egree
IR filter: 650+-10nm
Power supply& connector USB BUS POWER: 4P- 2.0 mm socket
Power Voltage: DC5V
Power Current: 200mA
Board Size: 38mm x 38mm
USB Cable: 1M
Operating System support: Win XP/Vista/Win7/Win8 / Linux with UVC( above linux- 2.6. 26), MAC-OS X 10.4. 8 or later/Android 4.0 or above with UVC
