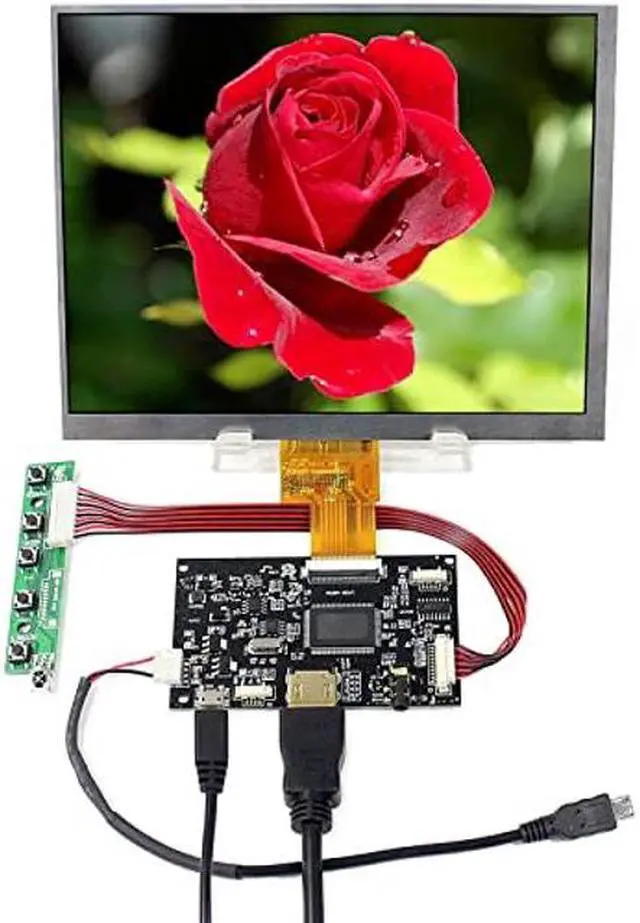

VSDISPLAY 8" 1024X768 IPS LCD 8 inch HJ080IA-01E with HD-MI Controller Board
- 8" HJ080IA-01E 1024X768 LCD Screen: Brightness 350 cd/m2 (Typ.) Contrast Ratio 800:1 (Typ.) (TM)
- Viewing Angle 85/85/85/85 (Typ.)(CR>=10) [Left / Right / Up / Down]
- HD-MI LCD Board Work for 40P TTL Interface LCD Screen
- Recommend use Input Power Adapter: 5Vdc More than 1A. Come In Standby Model When Not Input Signal Standby Model <1W
- Packing list : 1x HD-MI LCD Controller Board VS-TY2660H-V815 1x 8inch HJ080IA-01E 1024X768 IPS LCD Screen 1x USB Power Cable 1x Keyboard With CableIf you have any question,please feel free to contact us via 'ask a question'.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

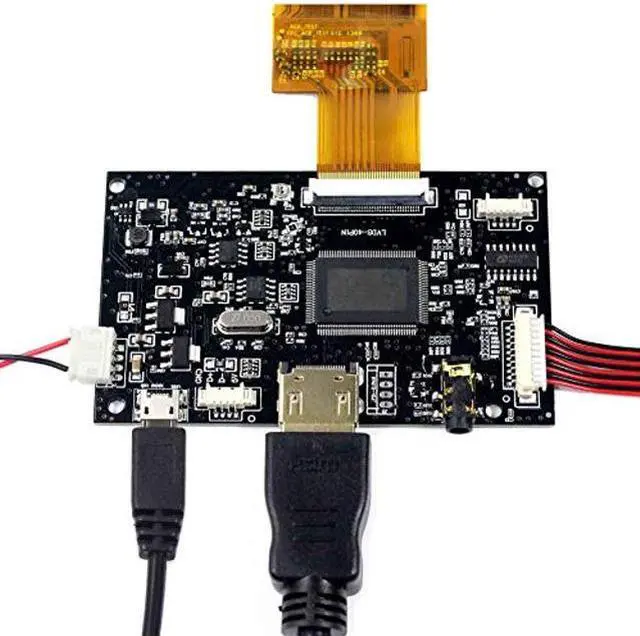

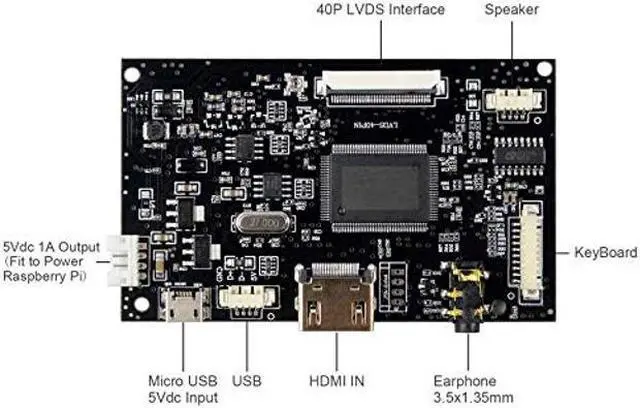

LCD Controller Board:
HD-MI LCD Board Work for 40P TTL Interface LCD Screen
Input Power Adapter: 5Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio: Earphone
Power Connector: PH 2.0 Micro USB
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 88mm x 53mm x 7mm
8" HJ080IA-01E 1024X768 LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 1024 (RGB) x768
Outline Size 174 x 136x 2.75 (HxVxD)
Display Area 162.08 x 121.54 (HxV)
Brightness 350 cd/m2 (Typ. )
Contrast Ratio 800:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit), 40 pins, FPC
Backlight WLED
Input Voltage 3.3V (Typ. )

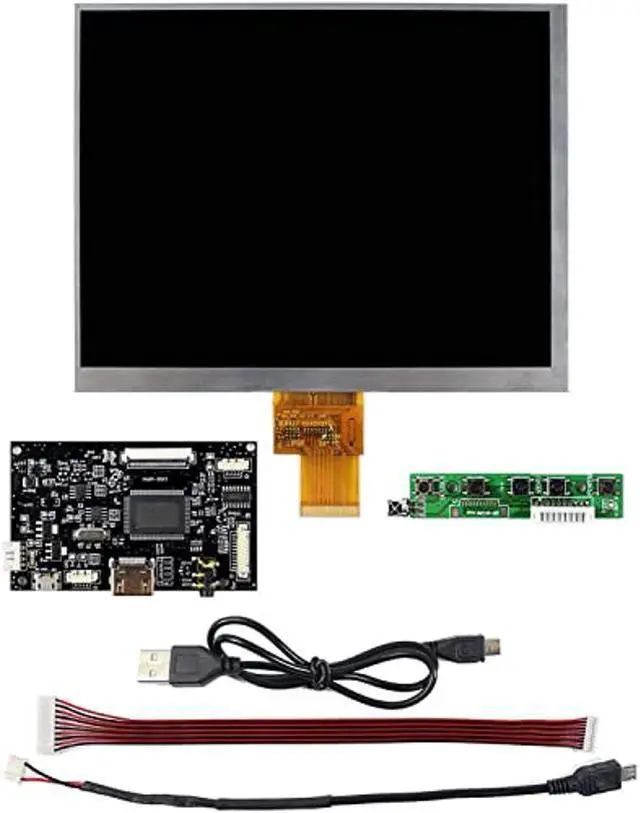

Packing list:
1x HD-MI LCD Controller Board VS-TY2660H-V815
1x 8inch HJ080IA-01E 1024X768 IPS LCD Screen
1x USB Power Cable
1x Keyboard With Cable
