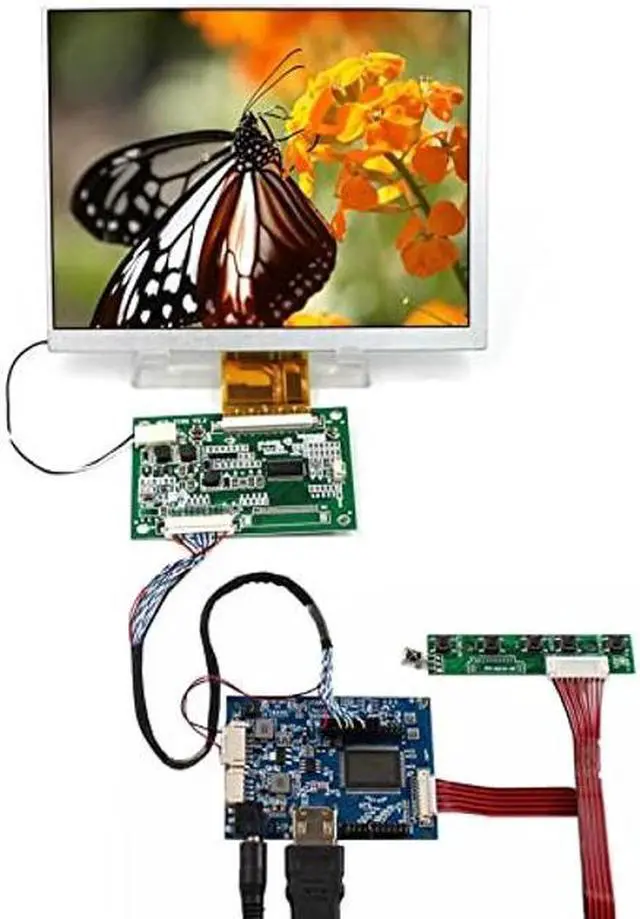

7" 7 inch 800x600 4:3 CLAA070MA0ACW LCD Screen TFT Monitor and HD-MI LCD Controller Board 60 pin
- [(Screen Advantage)] 7 inch 800x600 TFT LCD Screen, display area is 141mmx106mm, 250nit good brightness ,viewing angle 70/70/50/70 ,TTL signal interface connector 60 pins ,WLED backlight WLED .
- [(LCD Controller Board )] Video input: HD-MI,Support HD-MI transfer Audio,Please use in insulated environment.
- [(Input Power Supply)] 12V DC 2A, port size :5.5x2.1mm,Pls prepare power adapter by yourself.
- Advantage:This 4:3 aspect ratio panel with HDMI port ,can connect with Laptop ,pc ,RPI and other device with HDMI connection. Widely working as a sub display ,or sim monitor ,etc.
- Any problem ,Pls provide some connecting pictures to showing the problem .We will give you best solution in 12 hours.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HDMI Input LCD

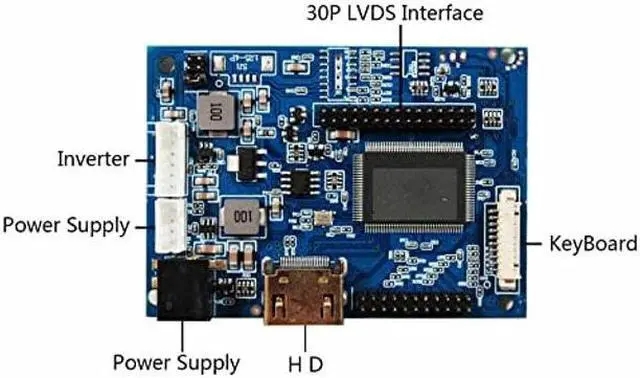

Controller Board: HDMI LCD Board Work for LVDS Interface LCD
Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby
Model <1W Video Input: HDMI
OSD: Brigtness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 74mm x 53mm x 12mm 7" 800x600
LCD Screen CLAA070MA0ACW: Display Mode N, Normally White, Transmissive Resolution 800RGB)x600 Outline Size 154 x 119.2 (HxV) Display Area 141.6 x 106.2 (HxV) Brightness 250 cd/m2 (Typ. ) Contrast Ratio 500:1 (Typ. ) (TM) Viewing Angle 70/70/50/70 (Typ. )(CR? 10) [Left / Right / Up / Down] Signal Interface TTL (1 ch, 6/8-bit), FPC, 60 pins Backlight WLED Input Voltage 3.3 / 9.6 /18/-6V (Typ.

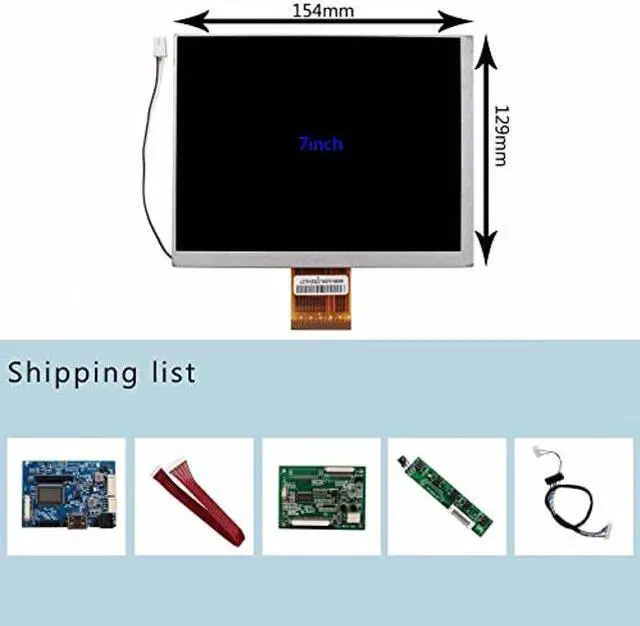

)(VCC/AVDD/VGH/VGL) Package content: 1x HDMI LCD Controller Board 1x7inch CLAA070MA0ACW 800X600 4:3 LCD Screen 1x LVDS-TTL Tcon Board HCR-TCON-V2 1x Signal Cable 1x Keyboard With

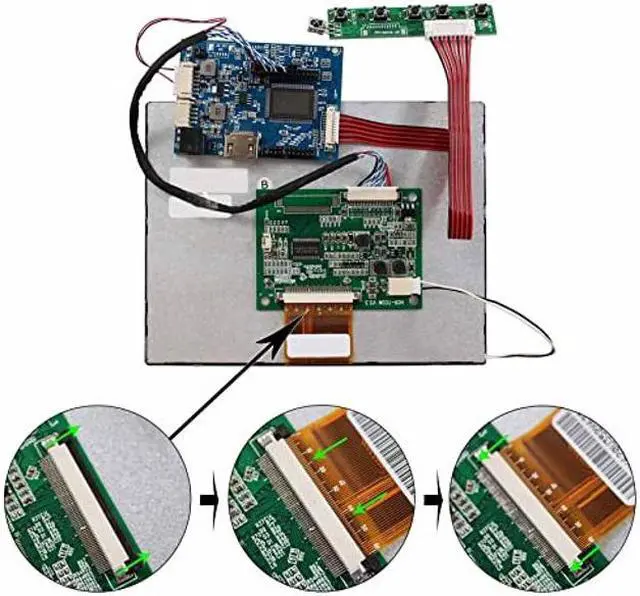

Cable Note: 1. Power Supply is NOT included 2. If you dont know how to connect the Screen, please feel free to contact us
Controller Board: HDMI LCD Board Work for LVDS Interface LCD
Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby
Model <1W Video Input: HDMI
OSD: Brigtness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 74mm x 53mm x 12mm 7" 800x600
LCD Screen CLAA070MA0ACW: Display Mode N, Normally White, Transmissive Resolution 800RGB)x600 Outline Size 154 x 119.2 (HxV) Display Area 141.6 x 106.2 (HxV) Brightness 250 cd/m2 (Typ. ) Contrast Ratio 500:1 (Typ. ) (TM) Viewing Angle 70/70/50/70 (Typ. )(CR? 10) [Left / Right / Up / Down] Signal Interface TTL (1 ch, 6/8-bit), FPC, 60 pins Backlight WLED Input Voltage 3.3 / 9.6 /18/-6V (Typ.
)(VCC/AVDD/VGH/VGL) Package content: 1x HDMI LCD Controller Board 1x7inch CLAA070MA0ACW 800X600 4:3 LCD Screen 1x LVDS-TTL Tcon Board HCR-TCON-V2 1x Signal Cable 1x Keyboard With
Cable Note: 1. Power Supply is NOT included 2. If you dont know how to connect the Screen, please feel free to contact us
