FanyiTek 10.4 inch 800x600 4:3 TFT LCD Screen and HDMI DP VGA LVDs Controller Board, for Vide Gaming Display
- [(4:3 IPS Screen)] Display area 211.2x158.4(HxV)mm,high brightness 500nit ,WLED backlight ,Viewing Angle 80/80/60/80, With left and right location holes,you can located it according to your demands.
- [(LCD Controller Board)] Video input:HD-MI DP VGA ,Audio Output: Speaker (8ohm 2W 4Pin PH2.0 connector Speaker) , Please use in insulated environment.
- [(Input Power Supply)] 12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.

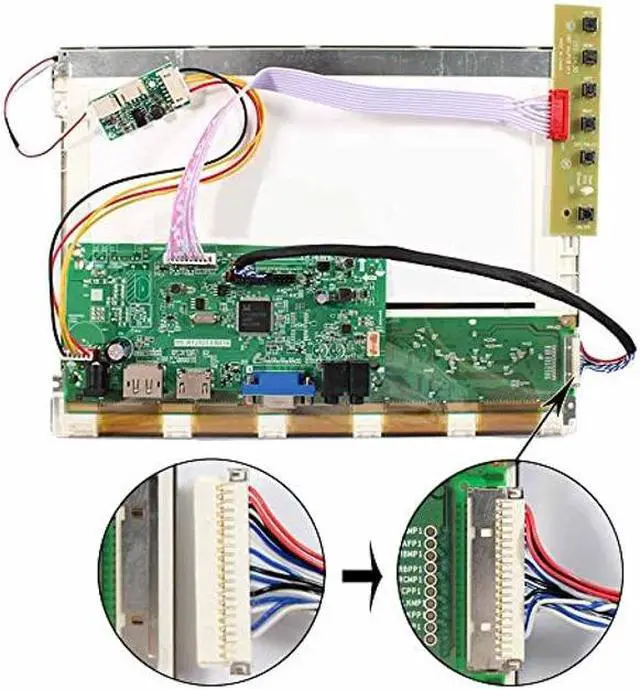

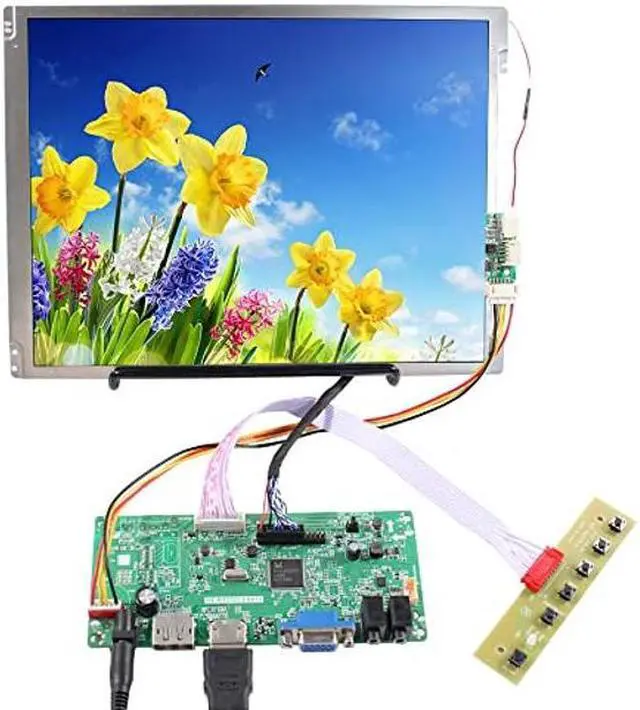

- [(Plug and play)] Connecting cables and ports according to link picture details ,power on ,enter into HD-MI signal ,with correct resolution ,the screen will shows information you want perfectly.
- [(Packing lists)] 1x HD DP VGA LCD Controller Board RT2525.EB818,1x 10.4inch VS104T-001A 800X600 LCD Screen,1x Converter Board,1x LVDS Cable,1x Keyboard With Cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

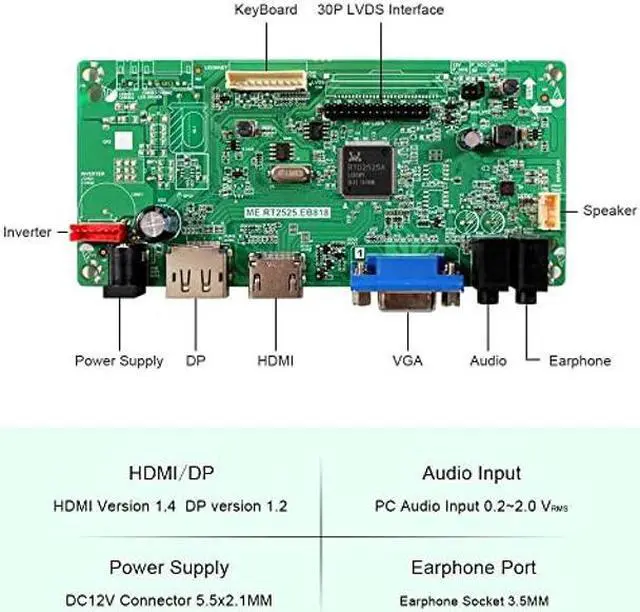

LCD Controller Board:
HD DP VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD DP VGA
Audio Input: HD
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

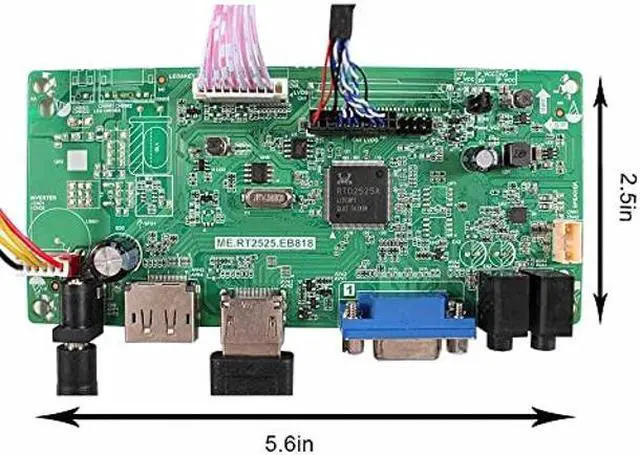

Board Size: 139mm x60mm x 17mm
10.4" VS104T-001A 800X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)x600
Outline Size 236 x 174.3 x 4.9 (HxVxD)
Display Area 211.2 x 158.4 (HxV)
Brightness 500 cd/m2 (Typ. )
Contrast Ratio 500:1 (Typ. ) (TM)
Viewing Angle 80/80/60/80 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit), 20 pins, Connector
Backlight WLED
Input Voltage 3.3V (Typ. )

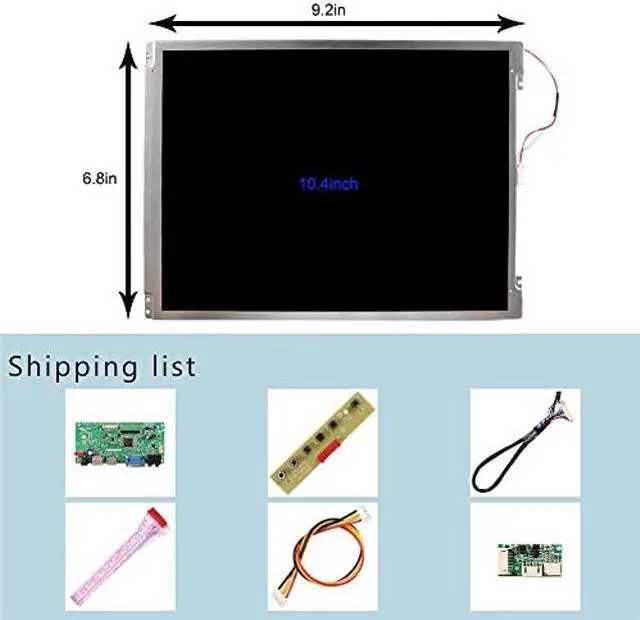

Packing list:
1x HD DP VGA LCD Controller Board RT2525. EB818
1x 10.4 inch VS104T-001A 800X600 LCD Screen
1x Converter Board
1x LVDS Cable
1x Keyboard With Cable
HD DP VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD DP VGA
Audio Input: HD
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 139mm x60mm x 17mm
10.4" VS104T-001A 800X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)x600
Outline Size 236 x 174.3 x 4.9 (HxVxD)
Display Area 211.2 x 158.4 (HxV)
Brightness 500 cd/m2 (Typ. )
Contrast Ratio 500:1 (Typ. ) (TM)
Viewing Angle 80/80/60/80 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit), 20 pins, Connector
Backlight WLED
Input Voltage 3.3V (Typ. )
Packing list:
1x HD DP VGA LCD Controller Board RT2525. EB818
1x 10.4 inch VS104T-001A 800X600 LCD Screen
1x Converter Board
1x LVDS Cable
1x Keyboard With Cable
