Overview

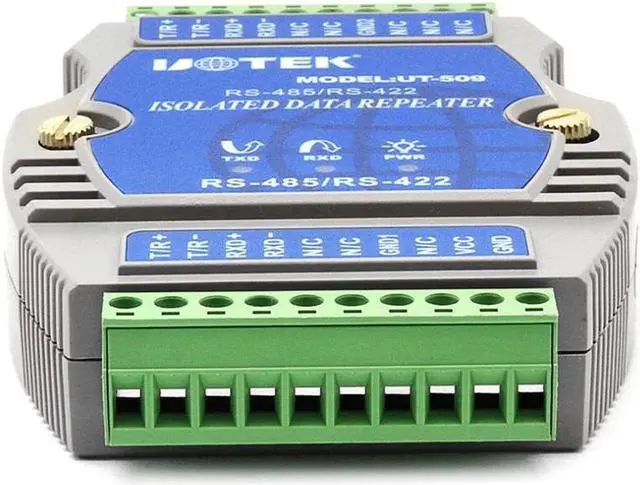

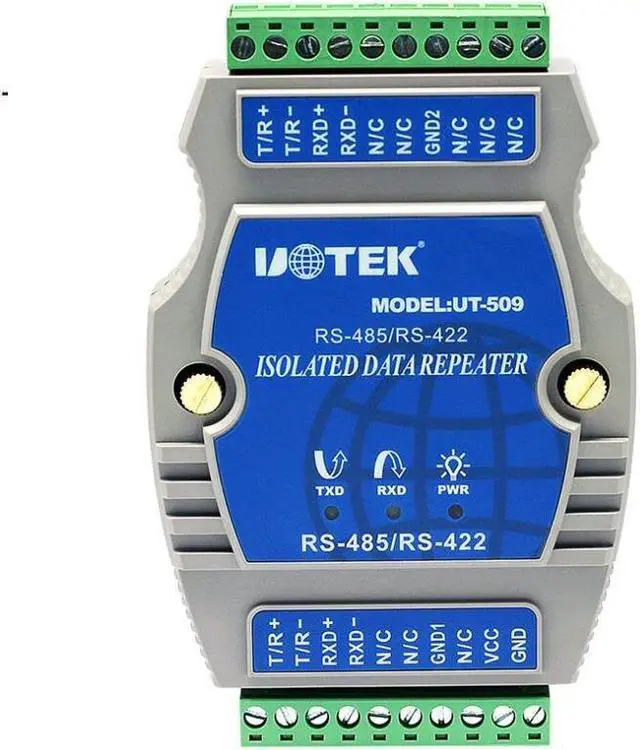

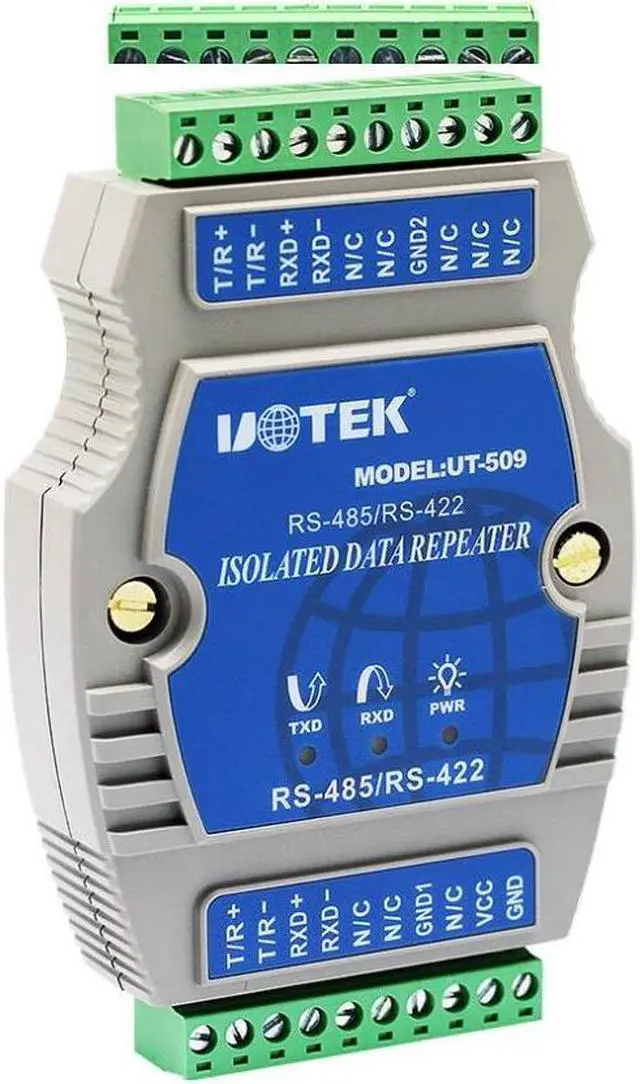

UT-509 is a repeater with optical isolation. Compatible with RS422 and RS485 standards, it extends the communication distance of RS422/RS485 BUS networking, increases the quantity of RS422/RS485 networking devices. Built-in zero-delay auto receiving and transmitting conversion, it has unique I/O circuit auto control data flow direction, plug & play.
. RS485/422 Both side in binding post
.
Max connection: 128 RS485/422 devices;
Max: 5 KM (9, 600BPS).
.
Baud rate: 300BPS- 115.2KBPS.
.
Dimensions: 120mm x 80mm x 25mm
.
Indicator: Power, Data traffic
.
Environment: -40! ae to 85! ae, relative humidity 5%-95%.
.
Protection:
. +/-15KV ESD protection for RS-232 interface
.
Photoelectric isolation voltage: 2.5KV rms /500VDC
.

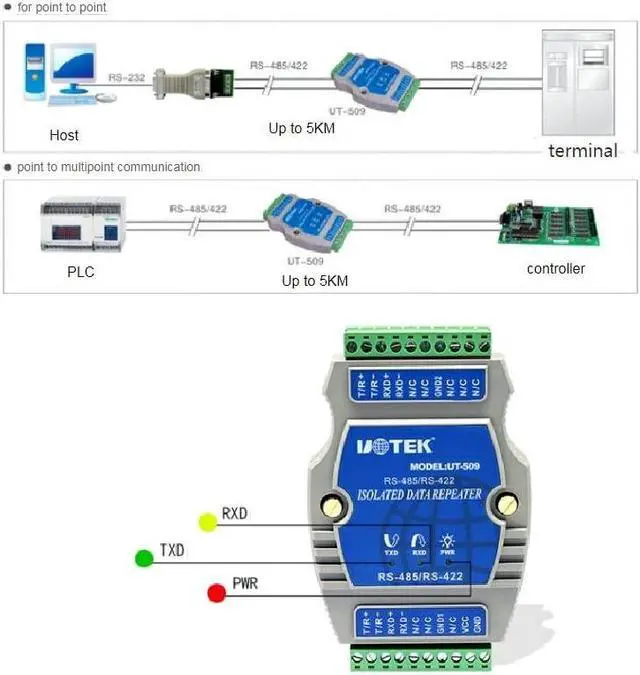

Application fields:
Factory automation system
. Distributed control system
. Other RS232/485/422 serial device wireless network
. LED INFO display equipments
. PLC control and management
. SCADA, measuring instruments and monitoring system
. CNC management
. Medical treatment/medication automation
. Building automation
. Check on work attendance/ Human resource management

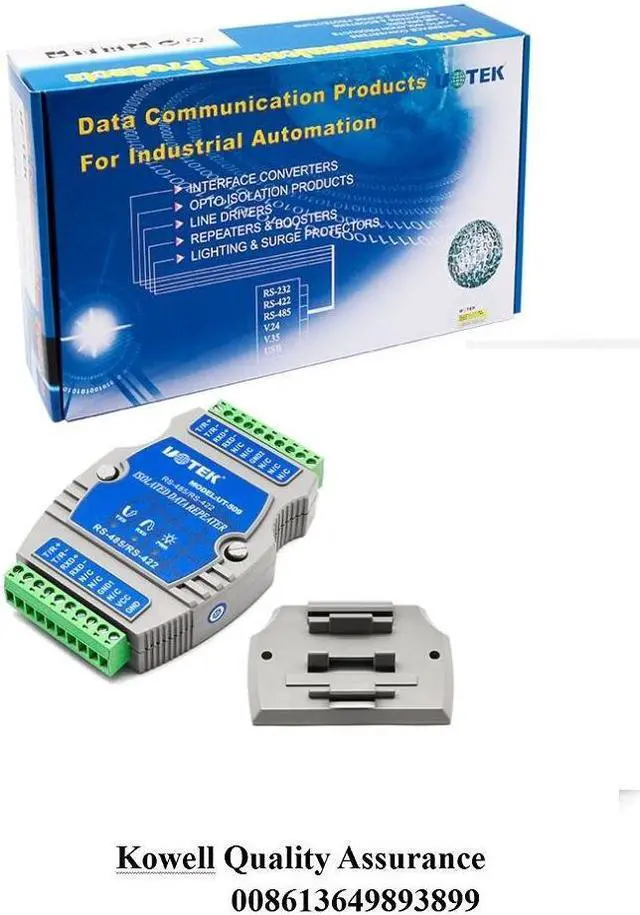

Original Packing Included
1x UT-509 RS485/422 Repeater
1x Terminal Block
1x User Manual
