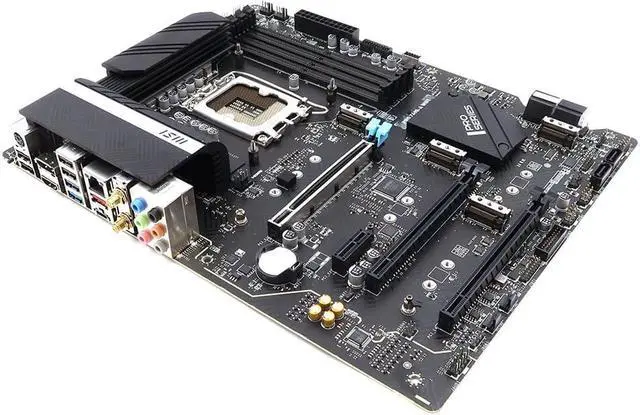

MS-7D25 MSI PRO Z690-A Wifi Intel Z690 Socket LGA1700 DDR5 Hdmi DP Motherboard NO I/O Intel LGA1700 Motherboard

Model: MS-7D25
Part Number: 601-7D25-030B
Model Name: PRO Z690-A WIFI
Compatible Part Numbers: 7D25-030B 7D25/030B
Chipset: Intel Z690
Socket: Intel LGA1700
Compatible/Supported CPU: Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 6400MHz
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 5, 10
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: Intel Wi-Fi 6E, 802.11 a/b/g/n/ac/ax
Network/Communications: Intel I225-V 2.5Gbps LAN controller
Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio
Connectors: 1x 24-pin ATX main power connector, 2x 8-pin ATX 12V power connector, 6x SATA 6Gb/s connectors, 4x M.2 slots (M-Key, 1x USB 3.2 Gen 2 10Gbps Type-C port, 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 6x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x TPM module connector, 1x Tuning controller connector, 1x TBT connector (Supports RTD3)
Input/Output Ports: 1x Keyboard / Mouse, 1x DisplayPort, 4x USB 2.0, 1x LAN port, WIFI / Bluetooth, 6x Audio connectors, 1x Flash BIOS Button, 1x HDMI, 2x USB 3.2 Gen 1 5Gbps Type-A, 1x USB 3.2 Gen 2x2 20Gbps Type-C, 1x USB 3.2 Gen 2 10Gbps Type-A
Expansion Slots: 3x PCIe x16 slots, x PCIe 3.0 x1 slot, 4x M.2 slots (Key M), 6x SATA 6Gb/s ports
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 11 64-bit, Windows 10 64-bit

Please note, this motherboard does not include an I/O Shield, fan's bracket, cables, or any other accessories!

• Grade A, Like New Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
