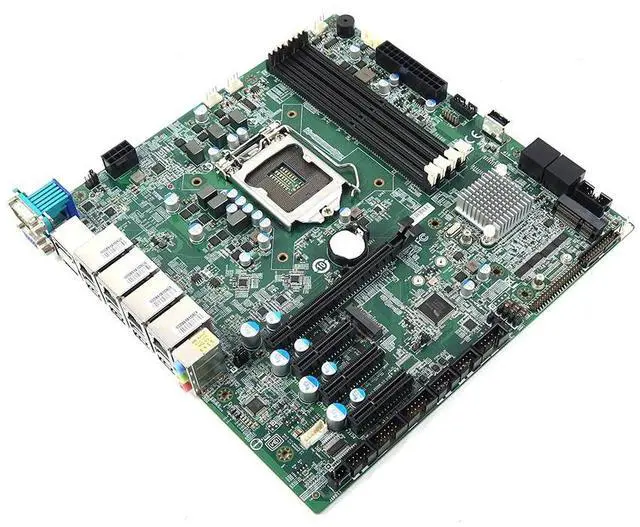

MS-98L2B2008000024_UA MSI MS-98L2 Intel Q370 Socket LGA1151 DDR4 DP Hdmi MICRO-ITX Motherboard NO I/O Intel LGA1151 Motherboard

Model: MS-98L2B2008000024_UA
Compatible Part Numbers: E305E6919CC E315781
Chipset: Intel Q370
Socket: Intel LGA1151
Compatible/Supported CPU: Support 8th Gen Intel Desktop Coffee Lake-S Core i7/i5/i3/Pentium/Celeron Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 2666MHz
Storage Interface: SATA 6.0Gb/s
RAID Support: 0, 1, 5, 10
Network/Communications: 1x Intel I219-LM GbE LAN PHY, 3x Intel I210-AT GbE LAN
Audio: Realtek ALC887 HD Audio Codec
Connectors: 5x USB 2.0 (5 x internal with one Vertical Type-A), 1x Parallel, 5x COM ports, 1x 8-pin CPU, 1x 24-Pin ATX Power Connector, 3x Fans Headers, S/PDIF, GPIO, LPT
Input/Output Ports: 1x VGA, 1x HDMI, 1x DisplayPort, 1x PS/2 port for keyboard and mouse, 4x USB 3.2 Gen1, 4x USB 3.2 Gen2, 1x COM Port, 4x RJ-45, 3x Audio Jacks
Expansion Slots: 3x (Slot2 signal shared with M.2; 2 PCIe x4 NVMe), 1x M Key (PCIe x4 NVMe, SATA 3.0), 2242/2260/2280, 1x Mini-PCIe Full-size/Half-size, 1x PCIe x16
Form Factor: Micro-ITX
Type: Desktop Motherboard
Supported Operating System: Windows 10 IoT Enterprise 2019 SAC 64-bit, Linux Kernel 4.x

Please note, this motherboard does not include an I/O Shield, fan's mounting backplate, fan's bracket, cables or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
