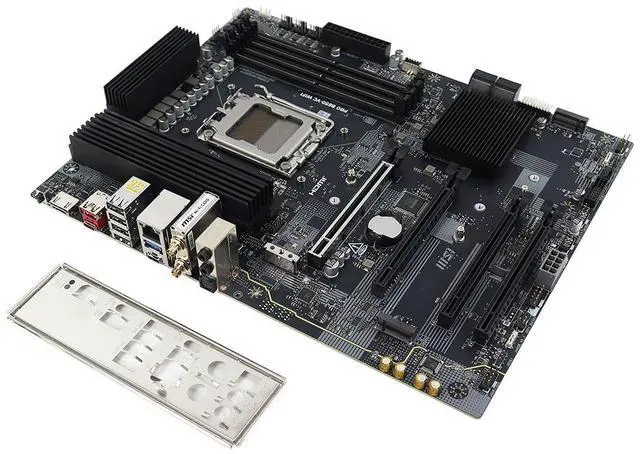

Model: PRO B850-VC WIFI
Chipset: AMD B850
Socket: AMD AM5
Compatible/Supported CPU: AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 8200MT/s - 5600MT/s (OC) / 5600MT/s - 4800MT/s (JEDEC)
Storage Interface: 3x M.2 NVMe; 4x SATA 6Gb/s
RAID Support: RAID 0 and RAID 1 for M.2 NVMe storage devices; RAID 0 and RAID 1 for SATA storage devices
Bluetooth Standard: Bluetooth 5.4
Wireless Lan Support: 802.11 a/b/g/n/ac/ax/be
Network/Communications: Realtek 8126VB 5G LAN; Wi-Fi 7
Audio: Realtek ALC897; 7.1-Channel High Definition Audio
Connectors: 1x ATX Power Connector (ATX_PWR); 2x CPU Power Connector (CPU_PWR); 1x PCI-E Power Connector (PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Tuning Controller Connector (JDASH); 3x Addressable V2 RGB LED Connector (JARGB_V2); 1x RGB LED Connector(JRGB); 1x TPM Pin Header (Support TPM 2.0); 4x USB 2.0 Ports; 4x USB 5 Gbps Type A Ports; 1x USB 5 Gbps Type C Ports
Input/Output Ports: 1x HDMI; 1x USB 10Gbps Type-A; 4x USB 2.0; 1x 5G LAN; 2x Audio Connectors; 1x USB 10 Gbps Type-C; 1x USB 5 Gbps Type-A; 1x USB 10 Gbps Type-C; 2x Wi-Fi / Bluetooth Antenna Ports; 1x S/PDIF OUT
Expansion Slots: 4x PCI-Express x16 slot
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 11 64-bit
Please note, this motherboard comes with an I/O shield and a CPU cooler backplate only and does not include a Wi-Fi antenna, a fan bracket, cables, or any other accessories!
