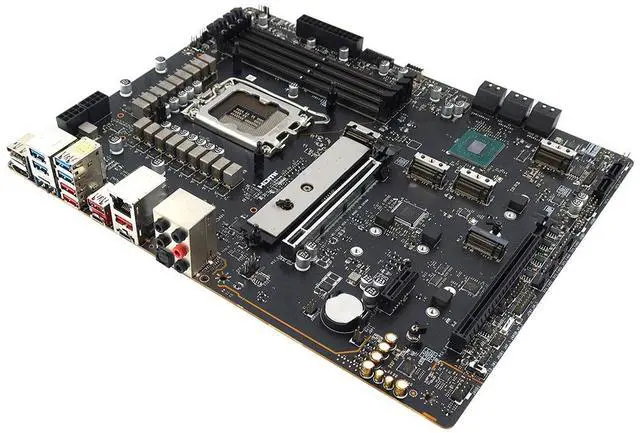

MPG Z790 Edge TI MAX Wifi MSI Intel LGA1700 DDR5 Hdmi DP Motherboard NO I/O Intel LGA1700 Motherboard

Model: MPG Z790 EDGE TI MAX WIFI
Chipset: Intel Z790
Socket: Intel LGA1700
Compatible/Supported CPU: Intel Core 14th / 13th / 12th Gen Processors, Intel Pentium Gold and Celeron Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7800+(OC)MHz / 7600(OC)MHz / 7400(OC)MHz / 7200(OC)MHz / 7000(OC)MHz / 6800(OC)MHz / 6600(OC)MHz / 6400(OC)MHz / 6200(OC)MHz / 6000(OC)MHz / 5800(OC)MHz / 5600(JEDEC)MHz / 5400(JEDEC)MHz / 5200(JEDEC)MHz / 5000(JEDEC)MHz / 4800(JEDEC)MHz
Storage Interface: 5x M.2 NVMe; 8x SATA 6Gb/s
RAID Support: RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices; RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Bluetooth Standard: Bluetooth 5.4
Wireless Lan Support: 802.11 a/b/g/n/ac/ax
Network/Communications: Intel 2.5 Gbps LAN; Wi-Fi 7 Solution
Audio: Realtek ALC4080 Codec; 7.1-Channel USB High Performance Audio; Supports up to 32-Bit/384 kHz playback on front panel
Connectors: 1x ATX Power Connector (ATX_PWR); 2x CPU Power Connector (CPU_PWR); 5x System Fan; 1x EZ Conn-header (JAF_1); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller Connector (JDASH); 3x Addressable V2 RGB LED Connector (JARGB_V2); 1x RGB LED Connector (JRGB); 1x TPM Pin Header (Support TPM 2.0); 1x USB4 Card Connector (JTBT_U4_1, Supports RTD3); 4x USB 2.0 Ports; 2x USB 5Gbps Type A Ports; 1x USB 10Gbps Type C Ports
Input/Output Ports: 1x Display Port; 4x USB 5 Gbps (Type-A); 4x USB 10 Gbps (Type-A); 1x 2.5G LAN; 5x Audio Connectors; 1x HDMI; 1x USB 10 Gbps (Type-C); 1x USB 20 Gbps (Type-C); 2x Wi-Fi / Bluetooth Antenna Ports; 1x Optical S/PDIF Out
Expansion Slots: 2x PCI-Express x16 slot; 1x PCI-Express x1 slot
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit; Windows 11 64-bit

Please note, this motherboard comes with a CPU cooling backplate with screws and enhanced M.2 thermal only and does not include Wi-Fi antenna connectors (RP-SMA), an I/O shield, extended heatsink, 7W/mK thermal pads, direct touch heat-pipe, M.2 shield frozr, enlarged PCH heatsink, cables, a fan's bracket, or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
